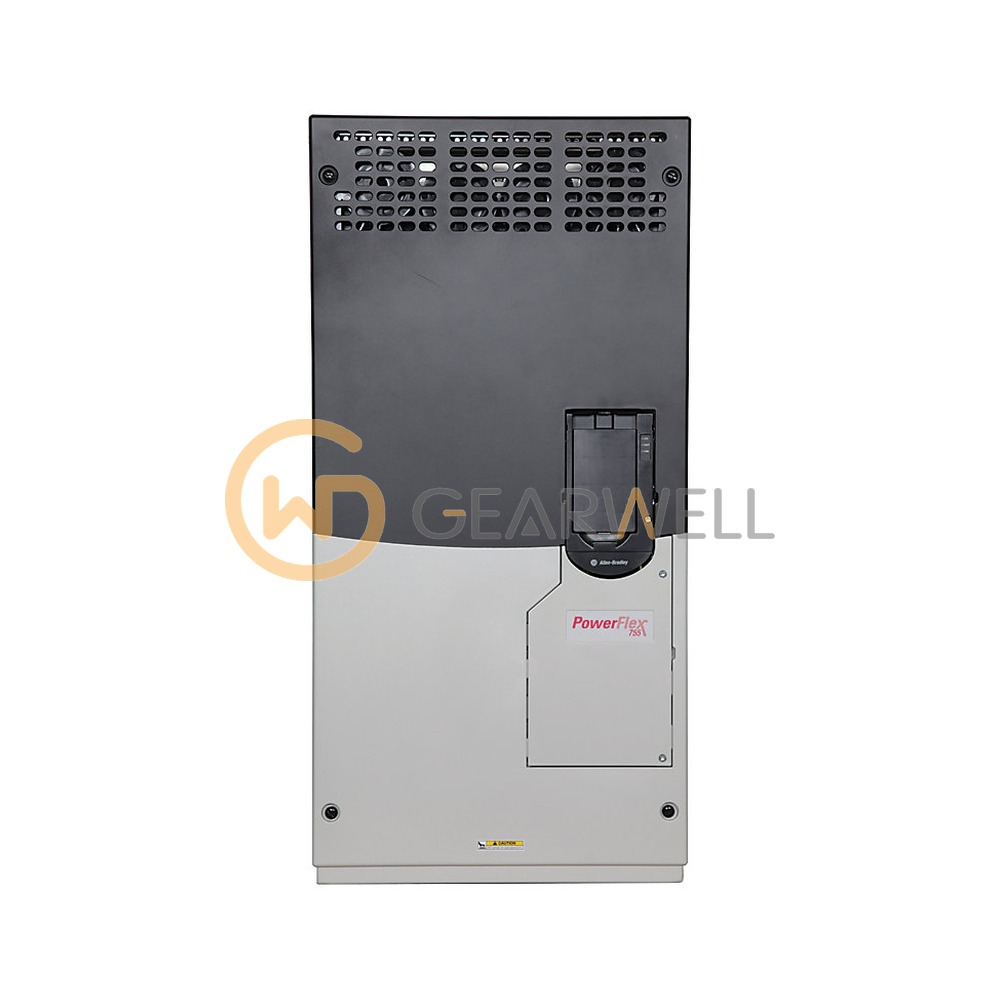

Allen-Bradley 20G1ANC302JA0NNNNN PowerFlex 755 Drive
- Brand
- Allen-Bradley
- Model
- 20G1ANC302JA0NNNNN
- GEARWELL SKU
- GWP-000000690
- Category
- Variable Frequency Drives
Key specifications
- HIM
- Blank
- Frame size
- 7
- Input voltage
- 400 V AC, 3 phase
- Output current
- 302 A
- Normal-duty power
- 160 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1ANC302JA0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 7, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 302 A and 160 kW for normal duty and 260 A and 132 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1ANC302JA0NNNNN PowerFlex 755 Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1ANC302JA0NNNNN |
| Category | Variable Frequency Drives |
| HIM | Blank |
| Frame size | 7 |
| Input voltage | 400 V AC, 3 phase |
| Output current | 302 A |
| Normal-duty power | 160 kW |
