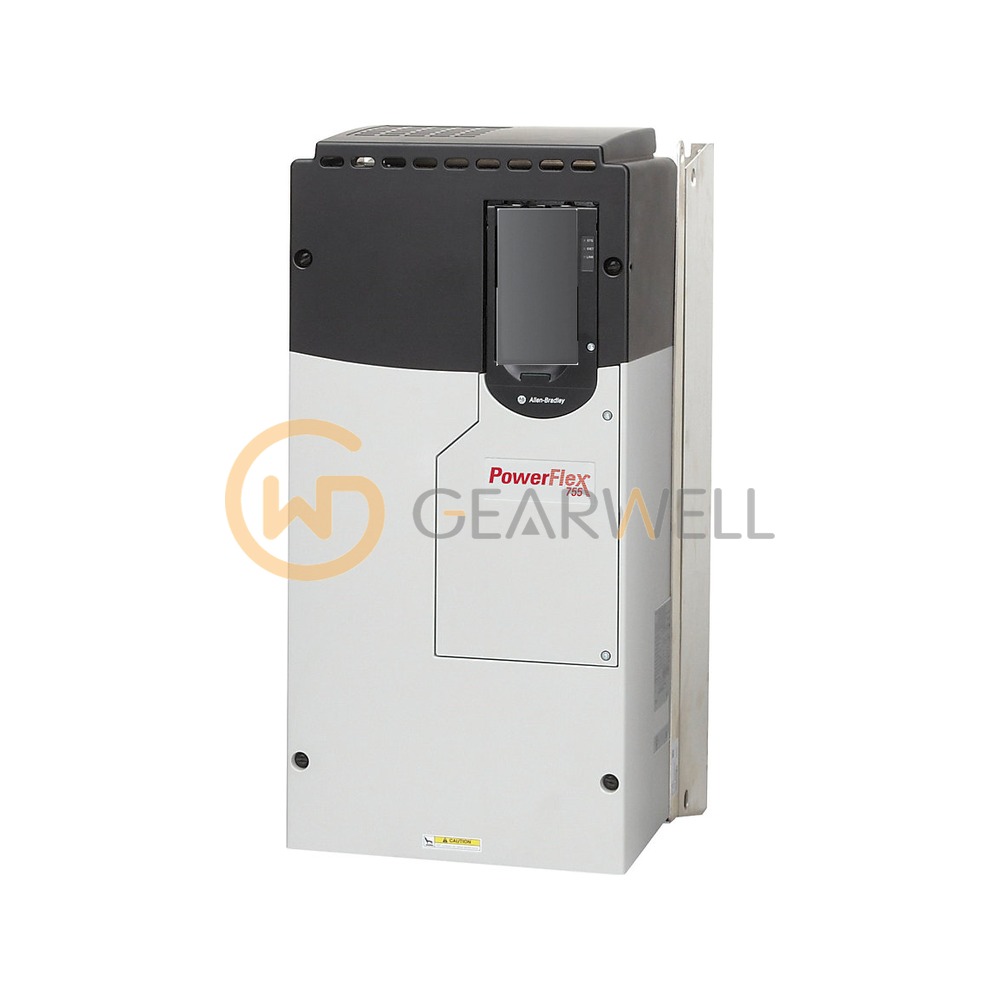

Allen-Bradley 20G1ANC140AA0NNNNN AC Drive

Product overview

The Allen-Bradley 20G1ANC140AA0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 140 A and 75 kW for normal duty and 104 A and 55 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
