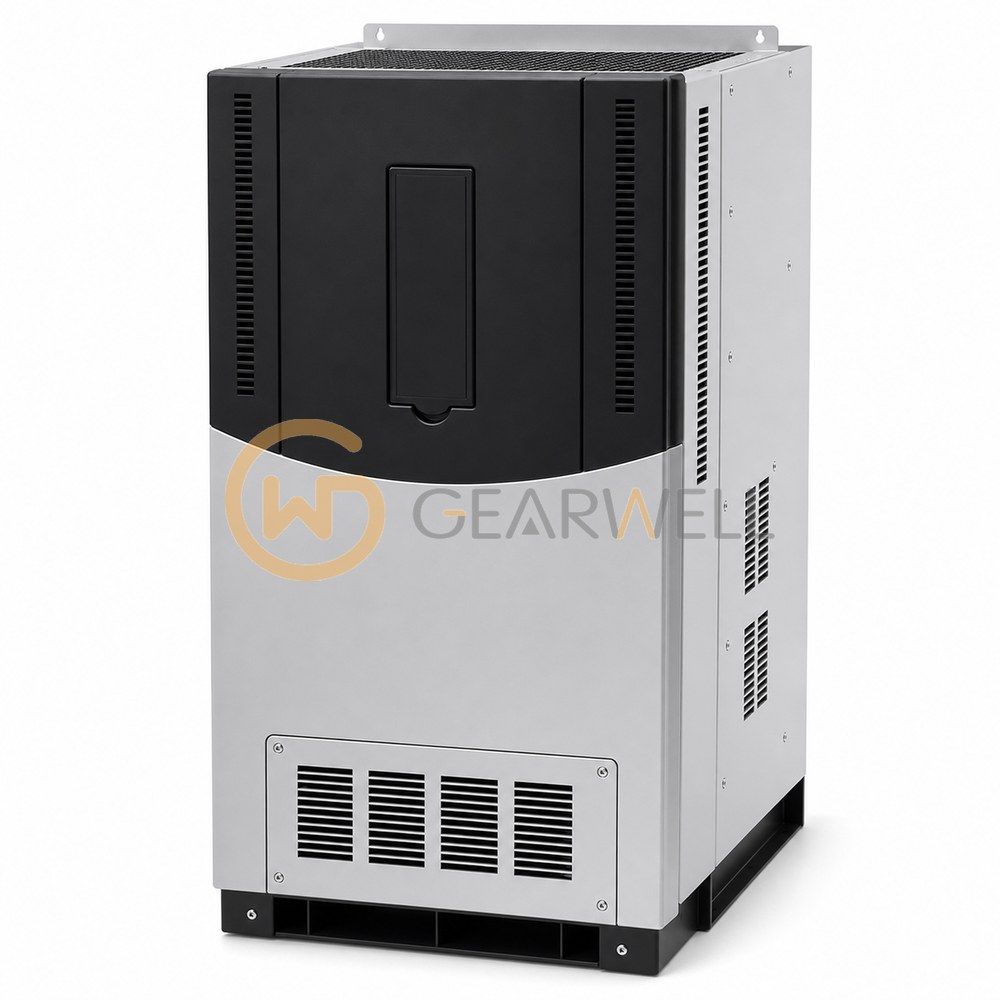

Allen-Bradley 20G1AGD361AA0NNNNN PowerFlex 755 480 V AC 300 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20G1AGD361AA0NNNNN
- GEARWELL SKU
- GWP-000003254
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 755
- Input configuration
- AC input with precharge, without DC terminals
- Drive frame
- 7
- Braking hardware
- Internal braking transistor fitted; braking resistor not included
- Rated motor output
- 361 A continuous, 300 hp normal duty; 250 hp heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1AGD361AA0NNNNN is a PowerFlex 755 AC drive for the 480 V AC / 650 V DC class in frame 7, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 361 A and 300 Hp for normal duty and 302 A and 250 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1AGD361AA0NNNNN PowerFlex 755 480 V AC 300 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1AGD361AA0NNNNN |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 755 |
| Input configuration | AC input with precharge, without DC terminals |
| Drive frame | 7 |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Rated motor output | 361 A continuous, 300 hp normal duty; 250 hp heavy duty |
| Nominal input voltage | 480 V AC, three-phase |
| Built-in communication | Embedded EtherNet/IP port |
| Configured enclosure | IP54, NEMA/UL Type 12 |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
