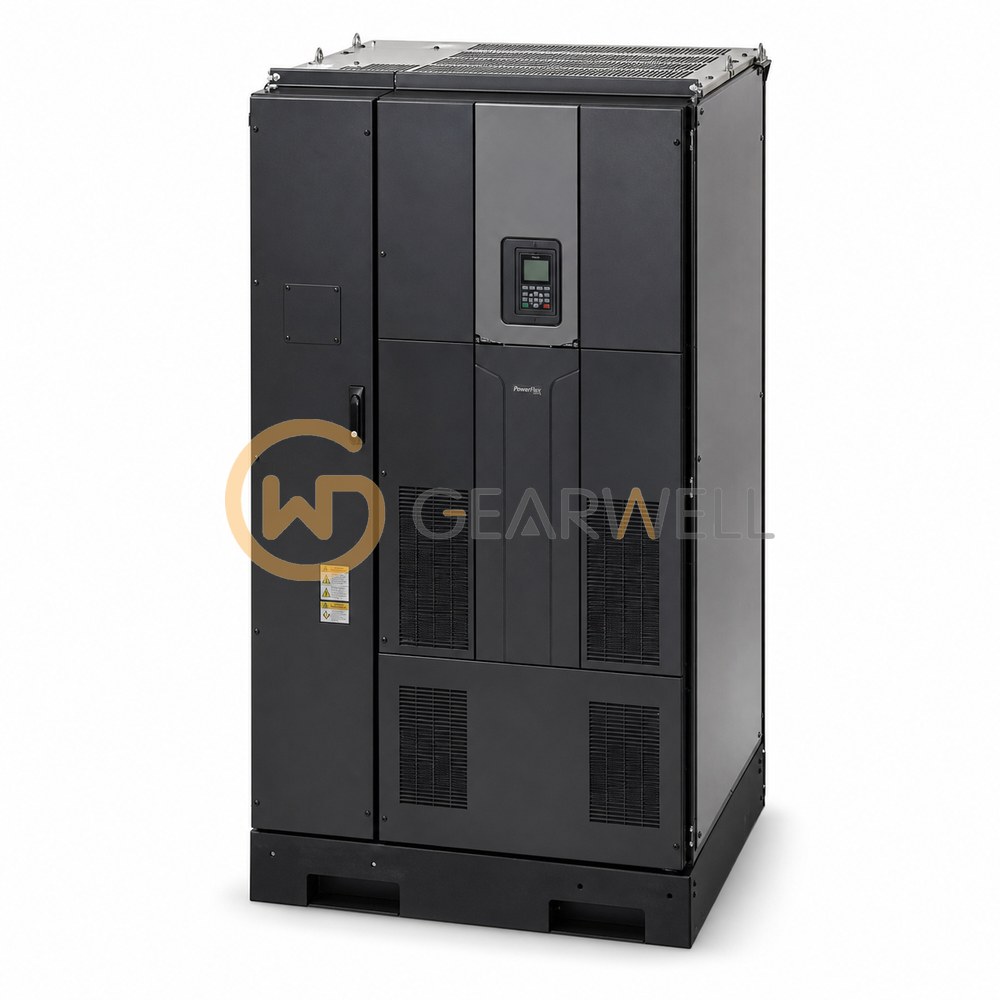

Allen-Bradley 20G1ABD740AN2NNNNN PowerFlex 755 480 V AC 650 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20G1ABD740AN2NNNNN
- GEARWELL SKU
- GWP-000002079
- Category
- Variable Frequency Drives
Key specifications
- Application
- Industrial AC motor speed and torque control
- Drive frame
- 8
- Drive family
- PowerFlex 755
- Product type
- Variable-frequency AC motor drive
- Motor control
- V/Hz, sensorless vector and flux vector modes; permanent-magnet operation in frames 8-10 requires encoder feedback
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1ABD740AN2NNNNN is a PowerFlex 755 AC drive for the 480 V AC / 650 V DC class in frame 8, built as an IP20, NEMA/UL Type 1 floor-mount cabinet 600 mm deep (standard cabinet color RAL 7032) with AC input with precharge and no DC terminals. Rockwell rates it at 800 A and 700 Hp for light duty, 740 A and 650 Hp for normal duty and 617 A and 500 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available), no internal dynamic braking transistor and a door-mounted enhanced LCD full numeric HIM (IP20). Floor-mount frames 8…10 include a DC link choke, integrated AC line fuses and a roll-out design; Rockwell requires a roll-out cart to install the drive. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1ABD740AN2NNNNN PowerFlex 755 480 V AC 650 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1ABD740AN2NNNNN |
| Category | Variable Frequency Drives |
| Application | Industrial AC motor speed and torque control |
| Drive frame | 8 |
| Drive family | PowerFlex 755 |
| Product type | Variable-frequency AC motor drive |
| Motor control | V/Hz, sensorless vector and flux vector modes; permanent-magnet operation in frames 8-10 requires encoder feedback |
| Product family | PowerFlex 750-Series |
| Configured enclosure | IP20, NEMA/UL Type 1 cabinet, 600 mm deep |
| Operator interface | Enhanced LCD, full numeric keypad, IP20, door-mounted |
| Rated motor output | 740 A continuous, 650 hp normal duty; 500 hp heavy duty |
| Nominal input voltage | 480 V AC, three-phase |
| Built-in communication | Embedded EtherNet/IP port |
