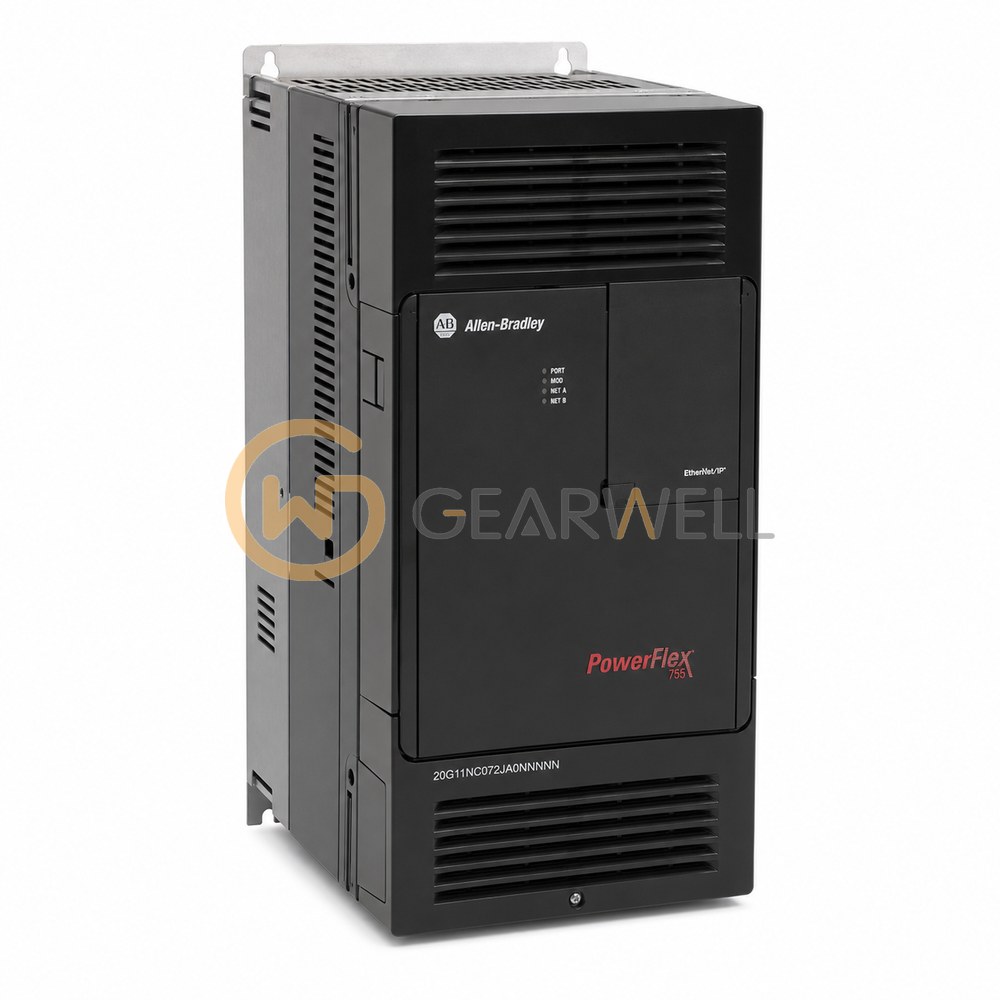

Allen-Bradley 20G11NC072JA0NNNNN PowerFlex 755 37 kW 400 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20G11NC072JA0NNNNN
- GEARWELL SKU
- GWP-000003649
- Category
- Industrial Automation Parts
Key specifications
- Enclosure
- IP20, NEMA/UL Type Open
- Product family
- PowerFlex 755
- Input type
- AC input with precharge and DC terminals
- AC input voltage
- 400 V AC
- Normal-duty output current
- 72 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G11NC072JA0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 4, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 72 A and 37 kW for normal duty and 60 A and 30 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G11NC072JA0NNNNN PowerFlex 755 37 kW 400 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G11NC072JA0NNNNN |
| Category | Industrial Automation Parts |
| Enclosure | IP20, NEMA/UL Type Open |
| Product family | PowerFlex 755 |
| Input type | AC input with precharge and DC terminals |
| AC input voltage | 400 V AC |
| Normal-duty output current | 72 A |
| Dynamic braking | Internal braking transistor installed |
| Heavy-duty motor power | 30 kW |
| Normal-duty motor power | 37 kW |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper installed by default |
