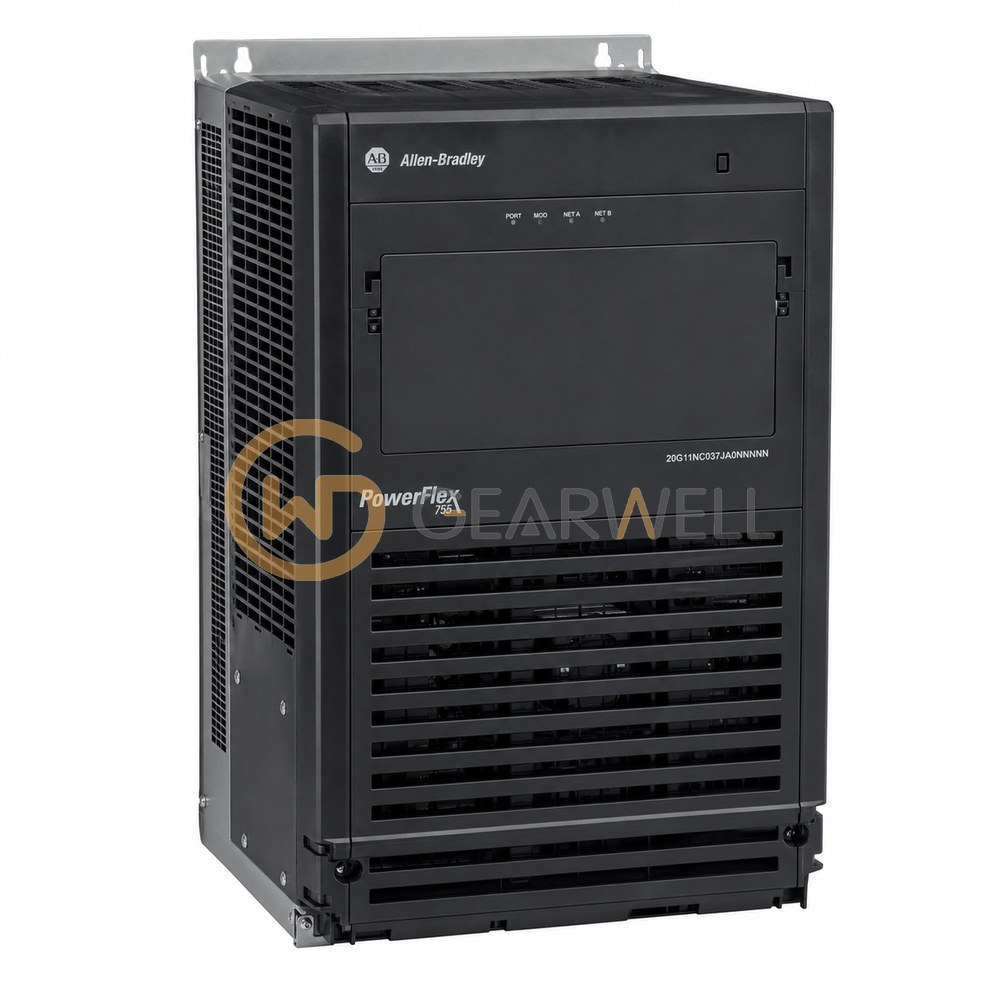

Allen-Bradley 20G11NC037JA0NNNNN Industrial Electronic Component

Allen-Bradley 20G11NC037JA0NNNNN PowerFlex 755 18.5 kW 400 V AC VFD

Model
20G11NC037JA0NNNNN
GEARWELL SKU
GWP-000002813
Category
Industrial Automation Parts

Key specifications

Enclosure
IP20, NEMA/UL Type Open
Input type
AC input with precharge and DC terminals
Product type
PowerFlex 755 variable-frequency AC drive
AC input voltage
400 V AC
Normal-duty output current
37 A
Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 20G11NC037JA0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 3, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 37 A and 18.5 kW for normal duty and 30 A and 15 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.

Technical reference

Product nameAllen-Bradley 20G11NC037JA0NNNNN PowerFlex 755 18.5 kW 400 V AC VFD
BrandAllen-Bradley
Model20G11NC037JA0NNNNN
CategoryIndustrial Automation Parts
EnclosureIP20, NEMA/UL Type Open
Input typeAC input with precharge and DC terminals
Product typePowerFlex 755 variable-frequency AC drive
AC input voltage400 V AC
Normal-duty output current37 A
Dynamic brakingInternal braking transistor installed
Heavy-duty motor power15 kW
Lifecycle statusActive mature
Normal-duty motor power18.5 kW
Drive configurationThe Allen-Bradley 20G11NC037JA0NNNNN is a PowerFlex 755 variable-frequency drive for AC motor control. Rated at 18.5 kW normal duty (15 kW heavy duty), with 37 A continuous normal-duty output. AC input with precharge and DC terminals, rated 400 V AC three-phase input. Enclosure: IP20, NEMA/UL Type Open. Frame 3. Internal braking transistor installed. EMC filter; common-mode jumper installed by default. Operator interface: No door-mounted HIM. Embedded EtherNet/IP interface. Standard protection; forced-air cooling.
