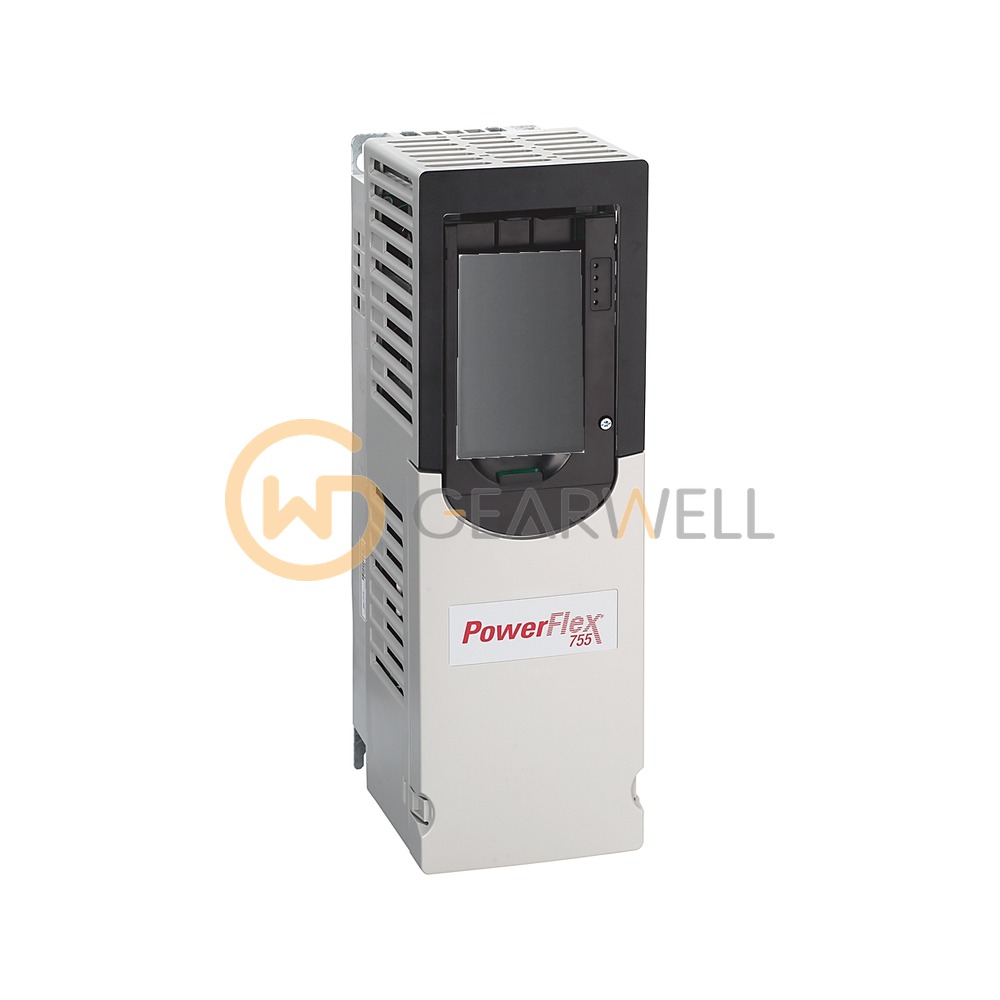

Allen-Bradley 20G11NC011AA0NNNNN PowerFlex 755 AC Drive

Product overview

The Allen-Bradley 20G11NC011AA0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 2, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 11.5 A and 5.5 kW for normal duty and 11.5 A and 5.5 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
