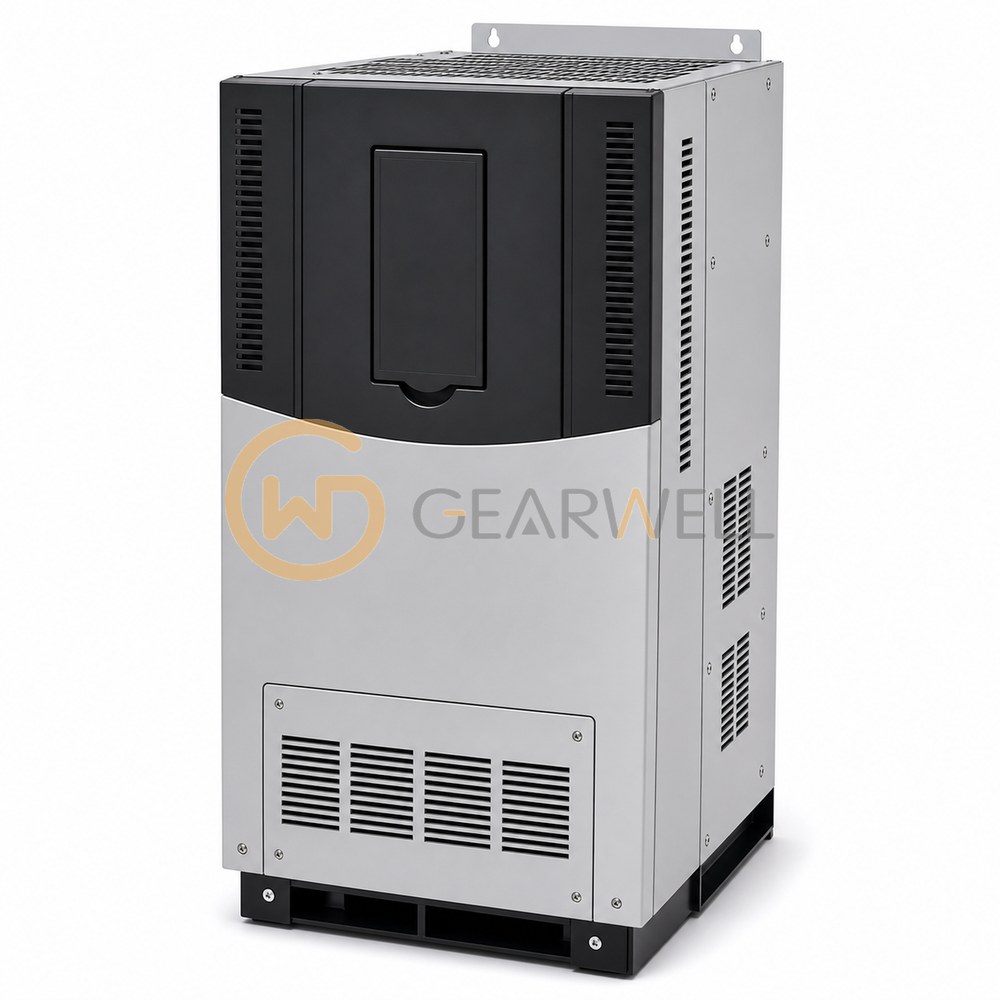

Allen-Bradley 20G11GC8P7JA0NNNNN PowerFlex 755 400 V AC 4 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20G11GC8P7JA0NNNNN
- GEARWELL SKU
- GWP-000002381
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- AC input with precharge and DC terminals
- Drive frame
- 2
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- active mature
- Rated motor output
- 8.7 A continuous, 4 kW normal duty; 4 kW heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G11GC8P7JA0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 2, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and DC terminals. Rockwell rates it at 8.7 A and 4 kW for normal duty and 8.7 A and 4 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G11GC8P7JA0NNNNN PowerFlex 755 400 V AC 4 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G11GC8P7JA0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | AC input with precharge and DC terminals |
| Drive frame | 2 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | active mature |
| Rated motor output | 8.7 A continuous, 4 kW normal duty; 4 kW heavy duty |
| Nominal input voltage | 400 V AC, three-phase |
| Configuration summary | PowerFlex 755; 400 V AC, three-phase; 8.7 A continuous, 4 kW normal duty; 4 kW heavy duty; frame 2; IP54, NEMA/UL Type 12; Internal braking transistor fitted; braking resistor not included; No factory-fitted HIM. |
| Built-in communication | Embedded EtherNet/IP port |
| Configured enclosure | IP54, NEMA/UL Type 12 |
