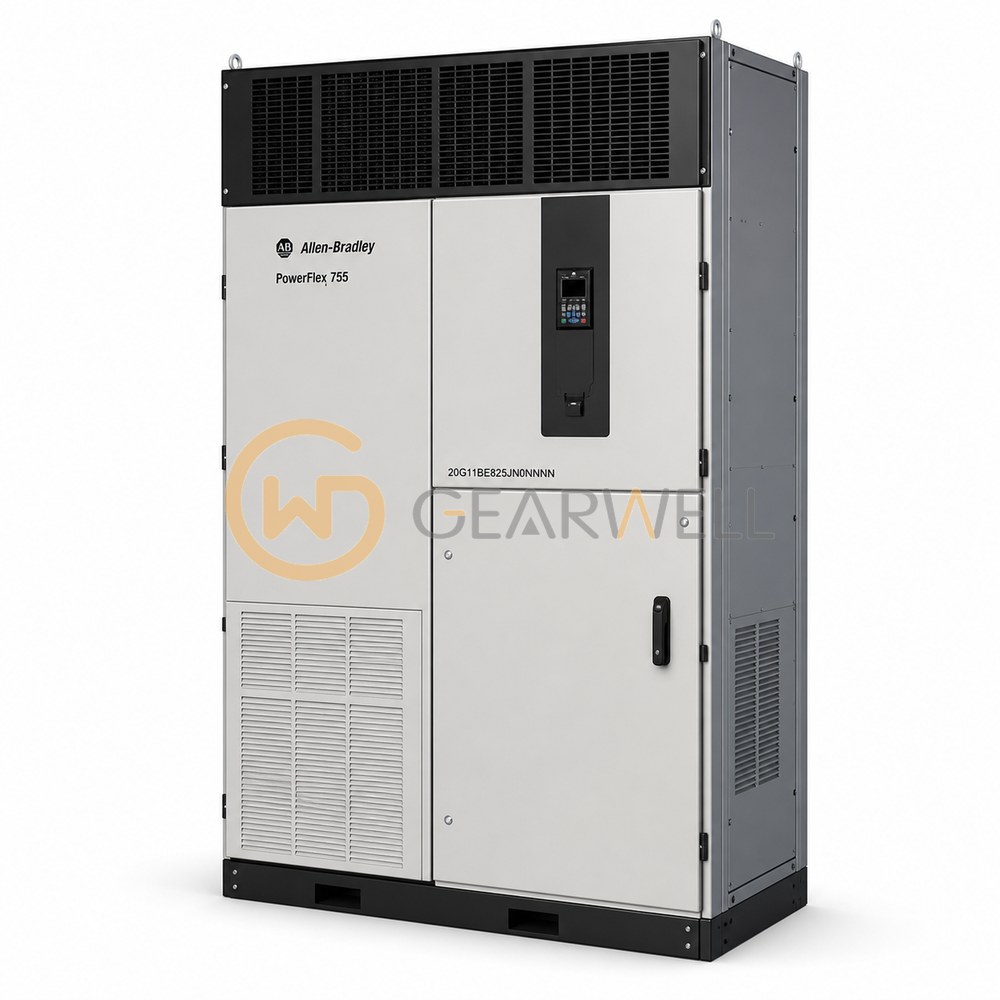

Allen-Bradley 20G11BE825JN0NNNNN PowerFlex 755 600 V AC 900 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20G11BE825JN0NNNNN
- GEARWELL SKU
- GWP-000000129
- Category
- Variable Frequency Drives
Key specifications
- Heavy-duty motor power
- 750 hp, heavy duty
- Normal-duty motor power
- 900 hp, normal duty
- Normal-duty output current
- 825 A continuous, normal duty
- Nominal input voltage
- 600 V AC, three-phase
- Drive family
- PowerFlex 755
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G11BE825JN0NNNNN is a PowerFlex 755 AC drive for the 600 V AC / 810 V DC class in frame 9, built as an IP20, NEMA/UL Type 1 MCC-style floor-mount cabinet 600 mm deep with AC input with precharge and DC terminals. Rockwell rates it at 900 A and 950 Hp for light duty, 825 A and 900 Hp for normal duty and 700 A and 750 Hp for heavy duty. This version has filtering with the common mode capacitor jumper installed, no internal dynamic braking transistor and no door-mounted HIM. Floor-mount frames 8…10 include a DC link choke, integrated AC line fuses and a roll-out design; Rockwell specifies a roll-out cart for power wiring and cabinet mounting. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G11BE825JN0NNNNN PowerFlex 755 600 V AC 900 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G11BE825JN0NNNNN |
| Category | Variable Frequency Drives |
| Heavy-duty motor power | 750 hp, heavy duty |
| Normal-duty motor power | 900 hp, normal duty |
| Normal-duty output current | 825 A continuous, normal duty |
| Nominal input voltage | 600 V AC, three-phase |
| Drive family | PowerFlex 755 |
| Input configuration | AC input with precharge and DC terminals |
| Drive frame | 9 |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Operator interface | No factory-fitted HIM |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
| Built-in communication | Embedded EtherNet/IP port |
| Configured enclosure | IP20, NEMA/UL Type 1 cabinet, 600 mm deep |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
