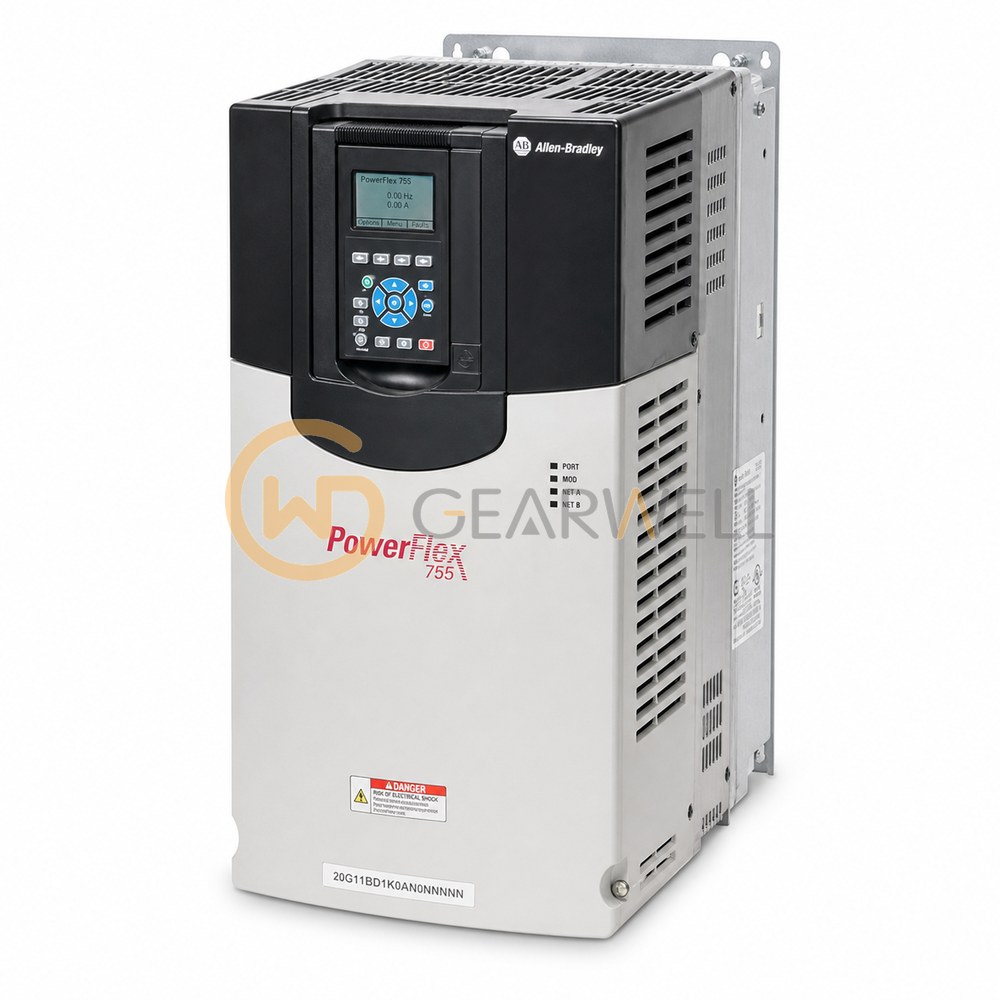

Allen-Bradley 20G11BD1K0AN0NNNNN PowerFlex 755 480 V AC 900 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20G11BD1K0AN0NNNNN
- GEARWELL SKU
- GWP-000002279
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 755
- Input configuration
- AC input with precharge and DC terminals
- Drive frame
- 9
- Braking hardware
- No internal braking transistor; braking resistor not included
- Rated motor output
- 1045 A continuous, 900 hp normal duty; 750 hp heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G11BD1K0AN0NNNNN is a PowerFlex 755 AC drive for the 480 V AC / 650 V DC class in frame 9, built as an IP20, NEMA/UL Type 1 MCC-style floor-mount cabinet 600 mm deep with AC input with precharge and DC terminals. Rockwell rates it at 1135 A and 1000 Hp for light duty, 1045 A and 900 Hp for normal duty and 800 A and 750 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available), no internal dynamic braking transistor and no door-mounted HIM. Floor-mount frames 8…10 include a DC link choke, integrated AC line fuses and a roll-out design; Rockwell specifies a roll-out cart for power wiring and cabinet mounting. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G11BD1K0AN0NNNNN PowerFlex 755 480 V AC 900 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G11BD1K0AN0NNNNN |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 755 |
| Input configuration | AC input with precharge and DC terminals |
| Drive frame | 9 |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Rated motor output | 1045 A continuous, 900 hp normal duty; 750 hp heavy duty |
| Nominal input voltage | 480 V AC, three-phase |
| Built-in communication | Embedded EtherNet/IP port |
| Configured enclosure | IP20, NEMA/UL Type 1 cabinet, 600 mm deep |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
