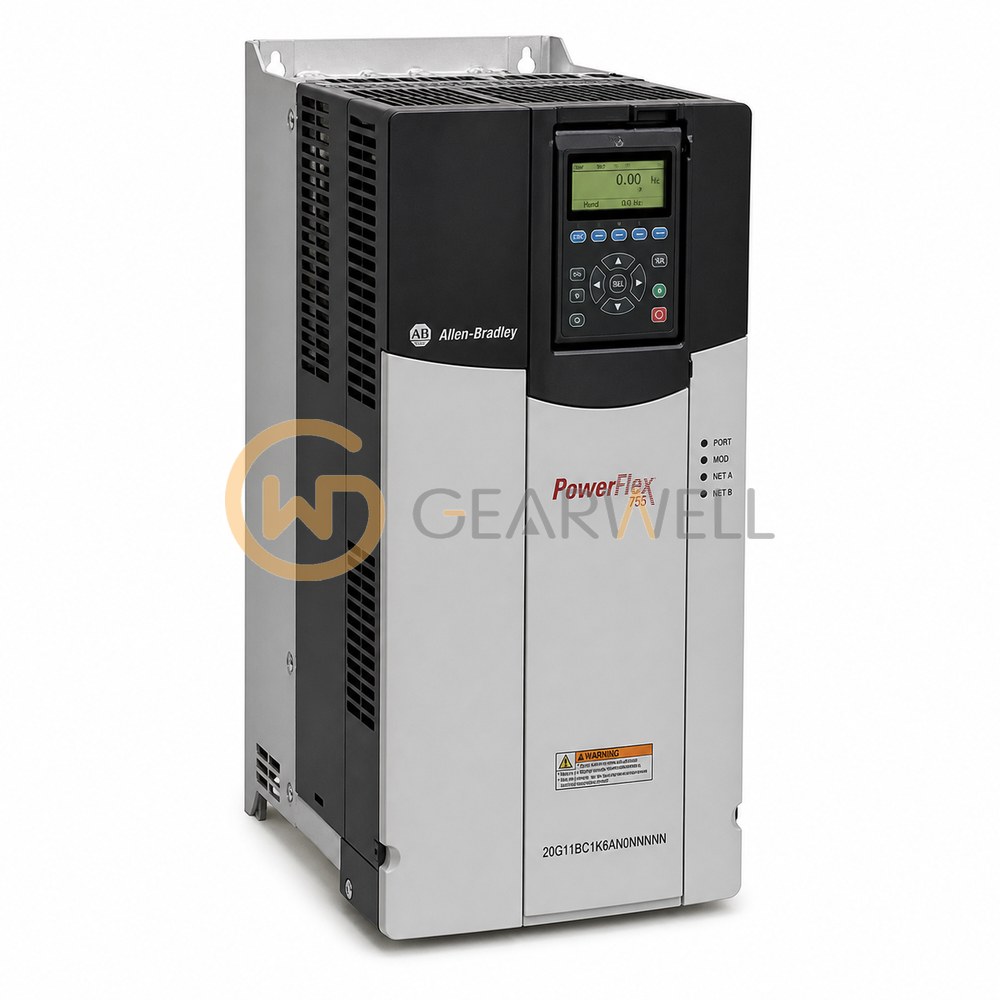

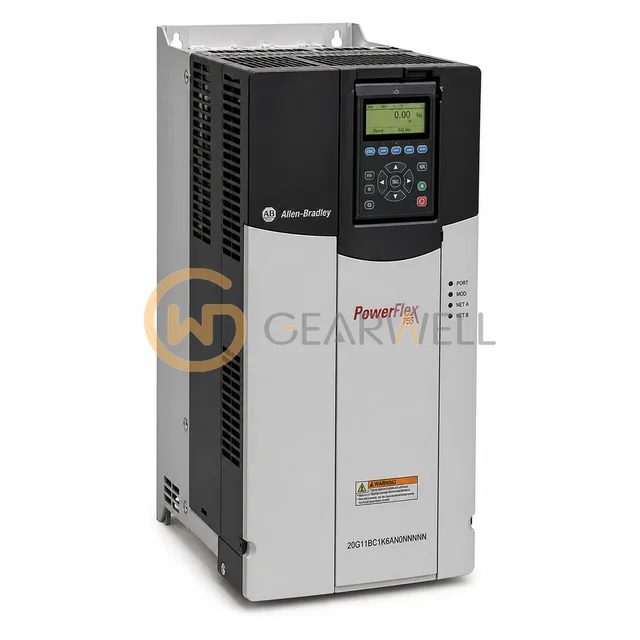

Allen-Bradley 20G11BC1K6AN0NNNNN PowerFlex 755 400 V AC 900 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20G11BC1K6AN0NNNNN
- GEARWELL SKU
- GWP-000003346
- Category
- Variable Frequency Drives
Key specifications
- Application
- Industrial AC motor speed and torque control
- Drive frame
- 10
- Drive family
- PowerFlex 755
- Product type
- Variable-frequency AC motor drive
- Motor control
- V/Hz, sensorless vector and flux vector modes; permanent-magnet operation in frames 8-10 requires encoder feedback
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G11BC1K6AN0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 10, built as an IP20, NEMA/UL Type 1 MCC-style floor-mount cabinet 600 mm deep with AC input with precharge and DC terminals. Rockwell rates it at 1715 A and 1000 kW for light duty, 1590 A and 900 kW for normal duty and 1325 A and 710 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available), no internal dynamic braking transistor and no door-mounted HIM. Floor-mount frames 8…10 include a DC link choke, integrated AC line fuses and a roll-out design; Rockwell specifies a roll-out cart for power wiring and cabinet mounting. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G11BC1K6AN0NNNNN PowerFlex 755 400 V AC 900 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G11BC1K6AN0NNNNN |
| Category | Variable Frequency Drives |
| Application | Industrial AC motor speed and torque control |
| Drive frame | 10 |
| Drive family | PowerFlex 755 |
| Product type | Variable-frequency AC motor drive |
| Motor control | V/Hz, sensorless vector and flux vector modes; permanent-magnet operation in frames 8-10 requires encoder feedback |
| Product family | PowerFlex 750-Series |
| Configured enclosure | IP20, NEMA/UL Type 1 cabinet, 600 mm deep |
| Operator interface | No factory-fitted HIM |
| Rated motor output | 1590 A continuous, 900 kW normal duty; 710 kW heavy duty |
| Nominal input voltage | 400 V AC, three-phase |
| Built-in communication | Embedded EtherNet/IP port |
