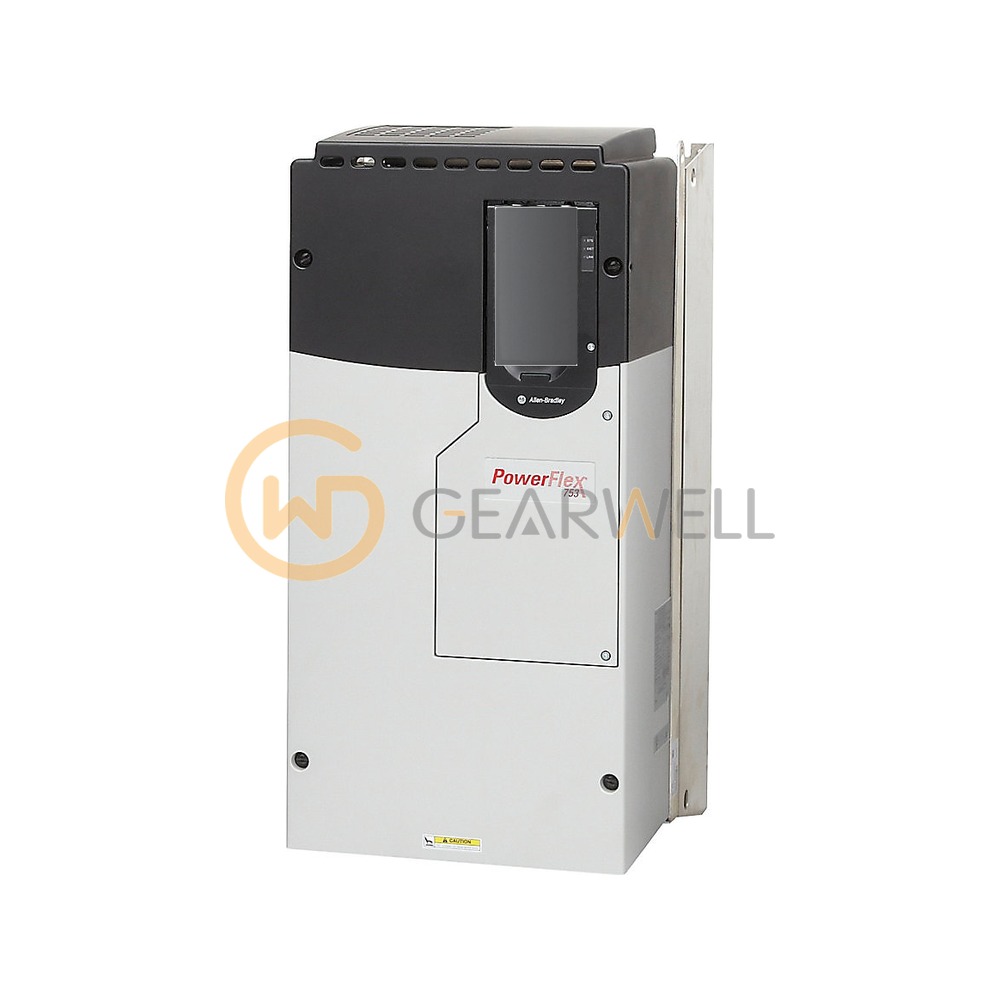

Allen-Bradley 20F1ANF061JA0NNNNN PowerFlex 753 AC Drive

Product overview

The Allen-Bradley 20F1ANF061JA0NNNNN is a PowerFlex 753 AC drive for the 690 V AC / 932 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 61 A and 55 kW for normal duty and 50 A and 45 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
