Allen-Bradley 20F1ANE242AN0NNNNN PowerFlex 753 600 V AC 250 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F1ANE242AN0NNNNN
- GEARWELL SKU
- GWP-000003789
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- AC input with precharge, without DC terminals
- Drive frame
- 7
- Product type
- Variable-frequency AC motor drive
- Braking hardware
- No internal braking transistor; braking resistor not included
- Manufacturer lifecycle status
- discontinued
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

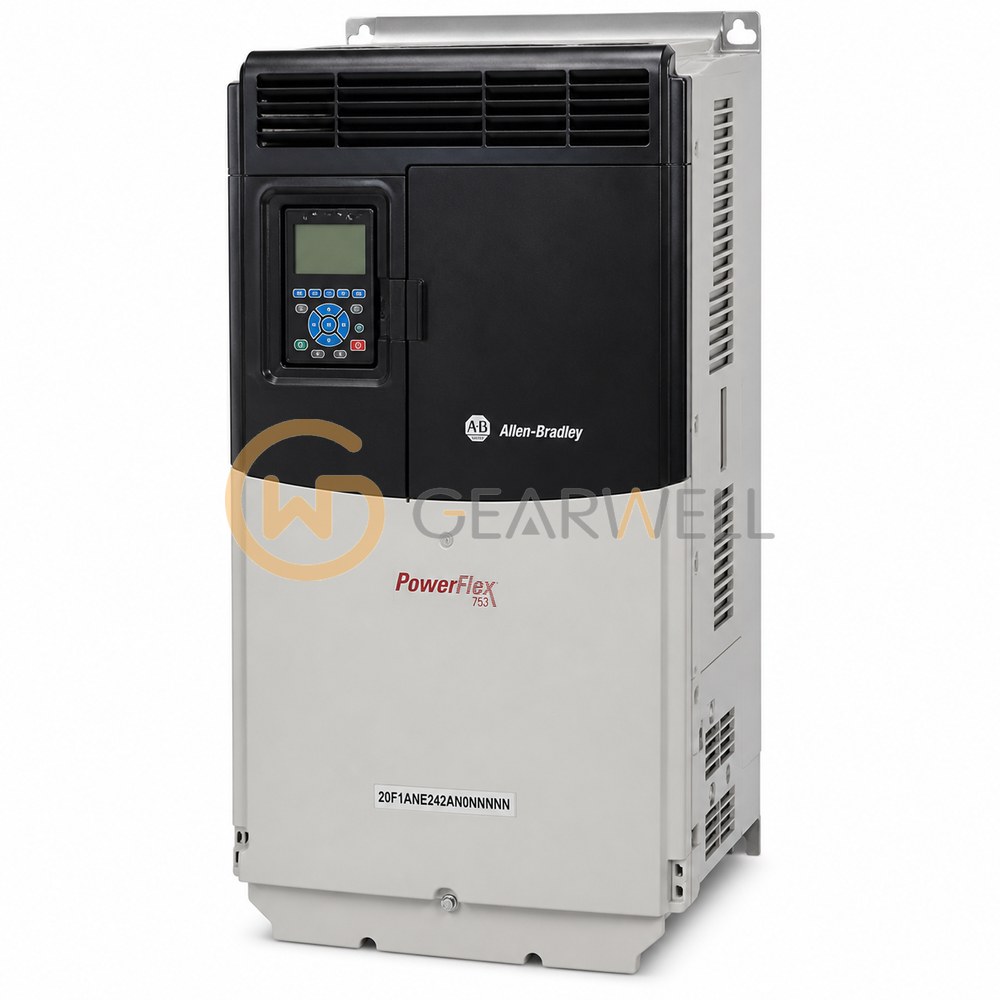

The Allen-Bradley 20F1ANE242AN0NNNNN is a PowerFlex 753 AC drive for the 600 V AC / 810 V DC class in frame 7, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 242 A and 250 Hp for normal duty and 192 A and 200 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F1ANE242AN0NNNNN PowerFlex 753 600 V AC 250 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANE242AN0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | AC input with precharge, without DC terminals |
| Drive frame | 7 |
| Product type | Variable-frequency AC motor drive |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Manufacturer lifecycle status | discontinued |
| Rated motor output | 242 A continuous, normal duty; 250 hp normal duty; 200 hp heavy duty |
| Nominal input voltage | 600 V AC, three-phase |
| Motor control | V/Hz, sensorless vector and flux vector control; feedback requirements depend on the selected control mode |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
