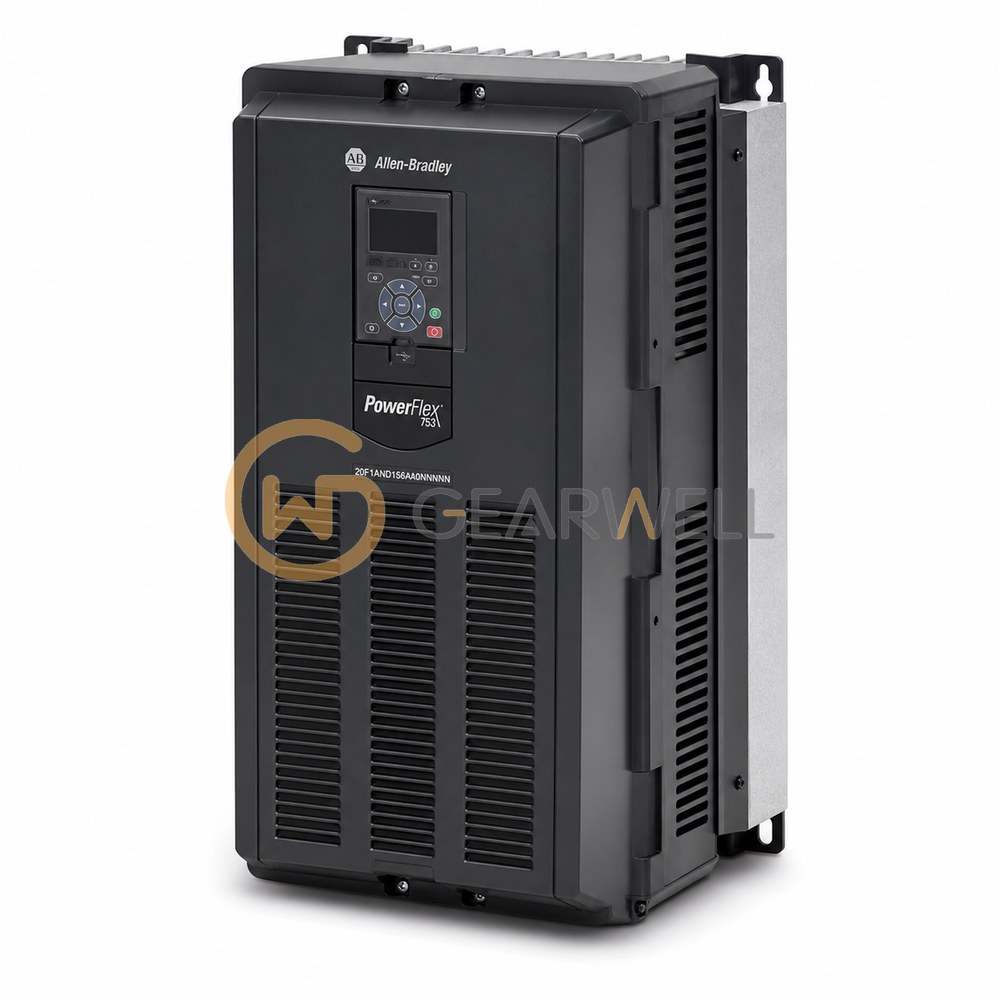

Allen-Bradley 20F1AND156AA0NNNNN PowerFlex 753 480 V AC 125 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F1AND156AA0NNNNN
- GEARWELL SKU
- GWP-000003841
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- AC input with precharge, without DC terminals
- Drive frame
- 6
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- discontinued
- Rated motor output
- 156 A continuous, normal duty; 125 hp normal duty; 100 hp heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F1AND156AA0NNNNN is a PowerFlex 753 AC drive for the 480 V AC / 650 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 156 A and 125 Hp for normal duty and 125 A and 100 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F1AND156AA0NNNNN PowerFlex 753 480 V AC 125 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1AND156AA0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | AC input with precharge, without DC terminals |
| Drive frame | 6 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | discontinued |
| Rated motor output | 156 A continuous, normal duty; 125 hp normal duty; 100 hp heavy duty |
| Nominal input voltage | 480 V AC, three-phase |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
