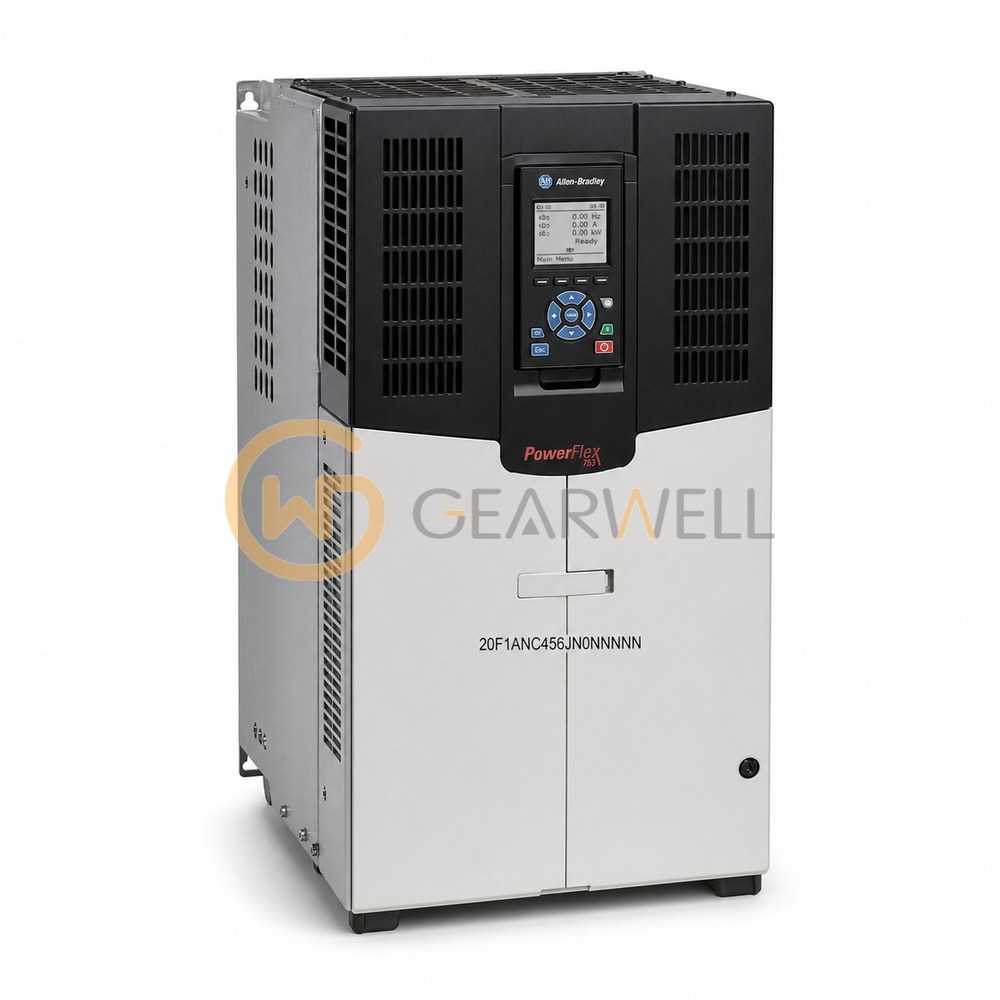

Allen-Bradley 20F1ANC456JN0NNNNN PowerFlex 753 400 V AC 250 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F1ANC456JN0NNNNN
- GEARWELL SKU
- GWP-000000762
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- AC input with precharge, without DC terminals
- Drive frame
- 7
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- active
- Rated motor output
- 456 A continuous, normal duty; 250 kW normal duty; 200 kW heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F1ANC456JN0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 7, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 456 A and 250 kW for normal duty and 367 A and 200 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F1ANC456JN0NNNNN PowerFlex 753 400 V AC 250 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANC456JN0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | AC input with precharge, without DC terminals |
| Drive frame | 7 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | active |
| Rated motor output | 456 A continuous, normal duty; 250 kW normal duty; 200 kW heavy duty |
| Nominal input voltage | 400 V AC, three-phase |
| Configuration summary | PowerFlex 753; 400 V AC, three-phase; 456 A continuous, normal duty; 250 kW normal duty; 200 kW heavy duty; frame 7; IP00, NEMA/UL Open Type; No internal braking transistor; braking resistor not included. |
| Braking hardware | No internal braking transistor; braking resistor not included |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
