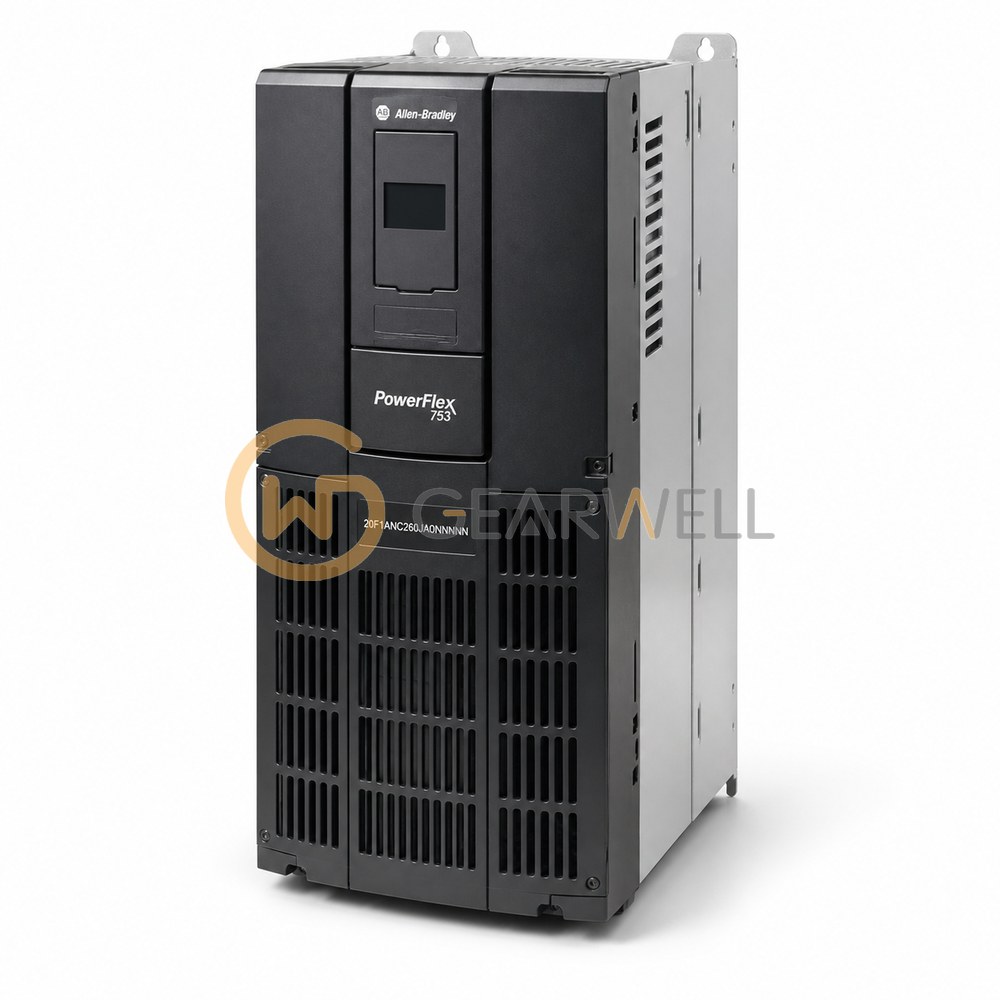

Allen-Bradley 20F1ANC260JA0NNNNN PowerFlex 753 132 kW 400 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20F1ANC260JA0NNNNN
- GEARWELL SKU
- GWP-000001763
- Category
- Industrial Automation Parts
Key specifications
- Enclosure
- IP00, NEMA/UL Type Open
- Product family
- PowerFlex 753
- Input type
- AC input with precharge, without DC terminals
- AC input voltage
- 400 V AC
- Normal-duty output current
- 260 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F1ANC260JA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 260 A and 132 kW for normal duty and 205 A and 110 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F1ANC260JA0NNNNN PowerFlex 753 132 kW 400 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANC260JA0NNNNN |
| Category | Industrial Automation Parts |
| Enclosure | IP00, NEMA/UL Type Open |
| Product family | PowerFlex 753 |
| Input type | AC input with precharge, without DC terminals |
| AC input voltage | 400 V AC |
| Normal-duty output current | 260 A |
| Dynamic braking | Internal braking transistor installed |
| Heavy-duty motor power | 110 kW |
| Normal-duty motor power | 132 kW |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper installed by default |
