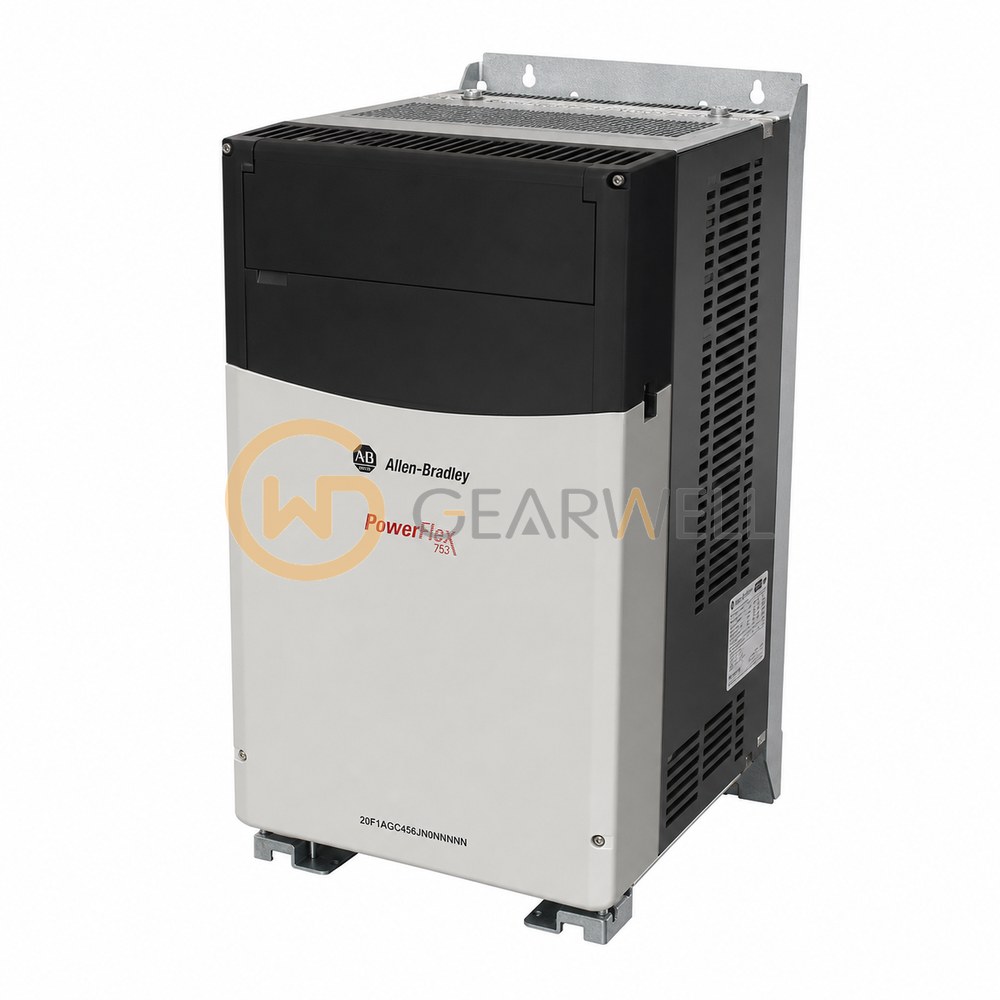

Allen-Bradley 20F1AGC456JN0NNNNN PowerFlex 753 250 kW 400 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20F1AGC456JN0NNNNN
- GEARWELL SKU
- GWP-000003253
- Category
- Industrial Automation Parts
Key specifications
- Heavy-duty motor power
- 200 kW
- Normal-duty motor power
- 250 kW
- Normal-duty output current
- 456 A
- AC input voltage
- 400 V AC
- Enclosure
- IP54, NEMA/UL Type 12
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F1AGC456JN0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 7, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 456 A and 250 kW for normal duty and 367 A and 200 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F1AGC456JN0NNNNN PowerFlex 753 250 kW 400 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1AGC456JN0NNNNN |
| Category | Industrial Automation Parts |
| Heavy-duty motor power | 200 kW |
| Normal-duty motor power | 250 kW |
| Normal-duty output current | 456 A |
| AC input voltage | 400 V AC |
| Enclosure | IP54, NEMA/UL Type 12 |
| Product family | PowerFlex 753 |
| Frame size | Frame 7 |
| Input type | AC input with precharge, without DC terminals |
| Motor control modes | V/Hz, sensorless vector, and flux vector control (with or without feedback) |
| Dynamic braking | No internal braking transistor |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper installed by default |
