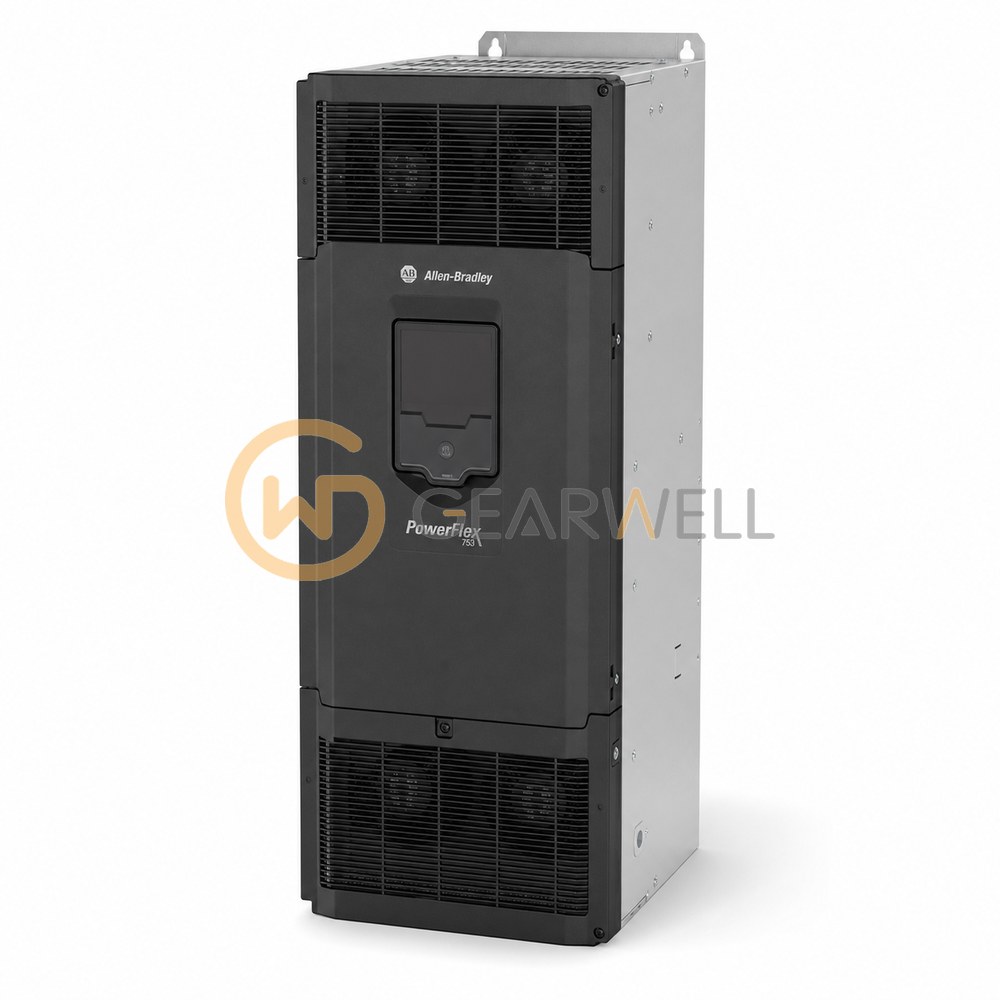

Allen-Bradley 20F1AGC205JN0NNNNN Industrial Electronic Component

Allen-Bradley 20F1AGC205JN0NNNNN PowerFlex 753 110 kW 400 V AC VFD

Model
20F1AGC205JN0NNNNN
GEARWELL SKU
GWP-000000829
Category
Industrial Automation Parts

Key specifications

Enclosure
IP54, NEMA/UL Type 12
Product type
PowerFlex 753 variable-frequency AC drive
AC input voltage
400 V AC
Normal-duty output current
205 A
Dynamic braking
No internal braking transistor
Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 20F1AGC205JN0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 6, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 205 A and 110 kW for normal duty and 170 A and 90 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.

Technical reference

Product nameAllen-Bradley 20F1AGC205JN0NNNNN PowerFlex 753 110 kW 400 V AC VFD
BrandAllen-Bradley
Model20F1AGC205JN0NNNNN
CategoryIndustrial Automation Parts
EnclosureIP54, NEMA/UL Type 12
Product typePowerFlex 753 variable-frequency AC drive
AC input voltage400 V AC
Normal-duty output current205 A
Dynamic brakingNo internal braking transistor
Heavy-duty motor power90 kW
Lifecycle statusActive
Normal-duty motor power110 kW
Drive configurationThe Allen-Bradley 20F1AGC205JN0NNNNN is a PowerFlex 753 variable-frequency drive for AC motor control. Rated at 110 kW normal duty (90 kW heavy duty), with 205 A continuous normal-duty output. AC input with precharge, without DC terminals, rated 400 V AC three-phase input. Enclosure: IP54, NEMA/UL Type 12. Frame 6. No internal braking transistor. EMC filter; common-mode jumper installed by default.
EMC filter and common-mode jumperEMC filter; common-mode jumper installed by default
