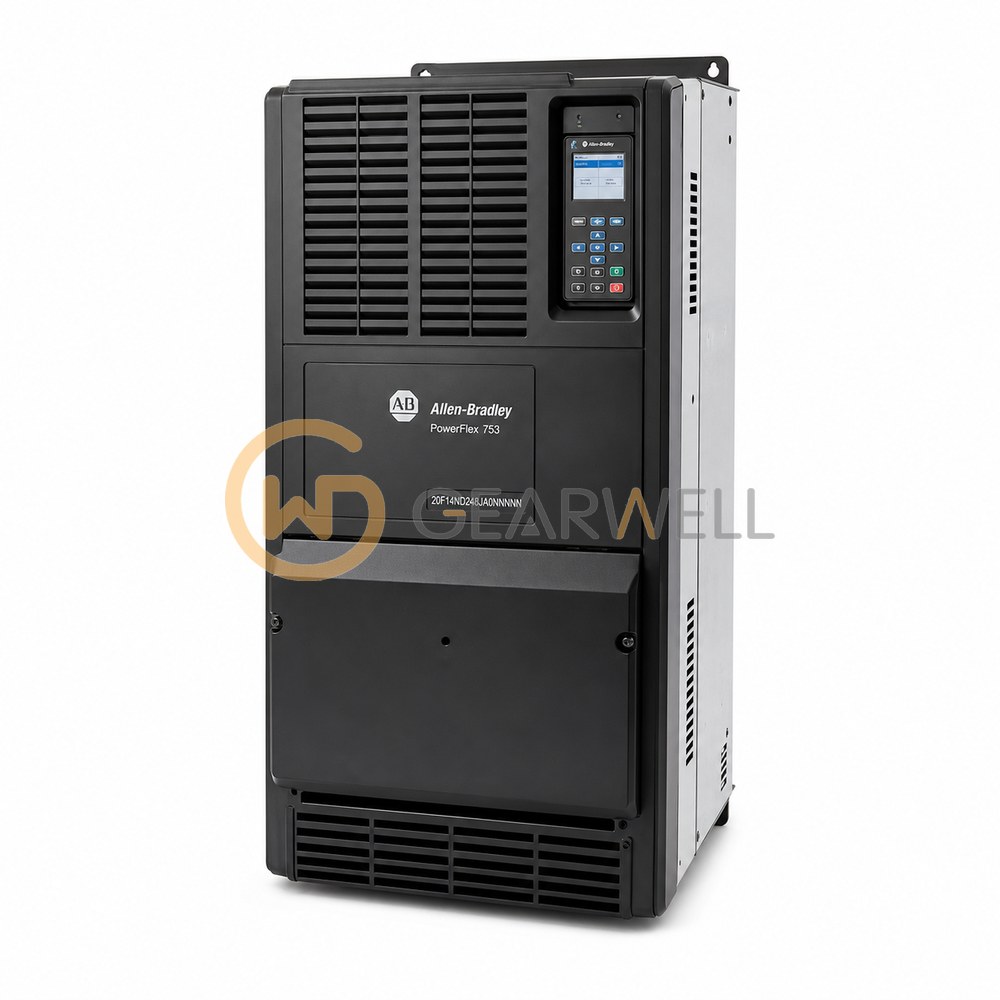

Allen-Bradley 20F14ND248JA0NNNNN PowerFlex 753 650 V DC 200 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14ND248JA0NNNNN
- GEARWELL SKU
- GWP-000000585
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- Common DC bus input with precharge
- Drive frame
- 6
- Nominal input voltage
- 650 V DC nominal
- Rated motor output
- 248 A continuous, normal duty; 200 hp normal duty; 150 hp heavy duty
- Operator interface
- No factory-fitted HIM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F14ND248JA0NNNNN is a PowerFlex 753 AC drive for the 480 V AC / 650 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with DC input with precharge (common bus). Rockwell rates it at 248 A and 200 Hp for normal duty and 186 A and 150 Hp for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F14ND248JA0NNNNN PowerFlex 753 650 V DC 200 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14ND248JA0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 6 |
| Nominal input voltage | 650 V DC nominal |
| Rated motor output | 248 A continuous, normal duty; 200 hp normal duty; 150 hp heavy duty |
| Operator interface | No factory-fitted HIM |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
