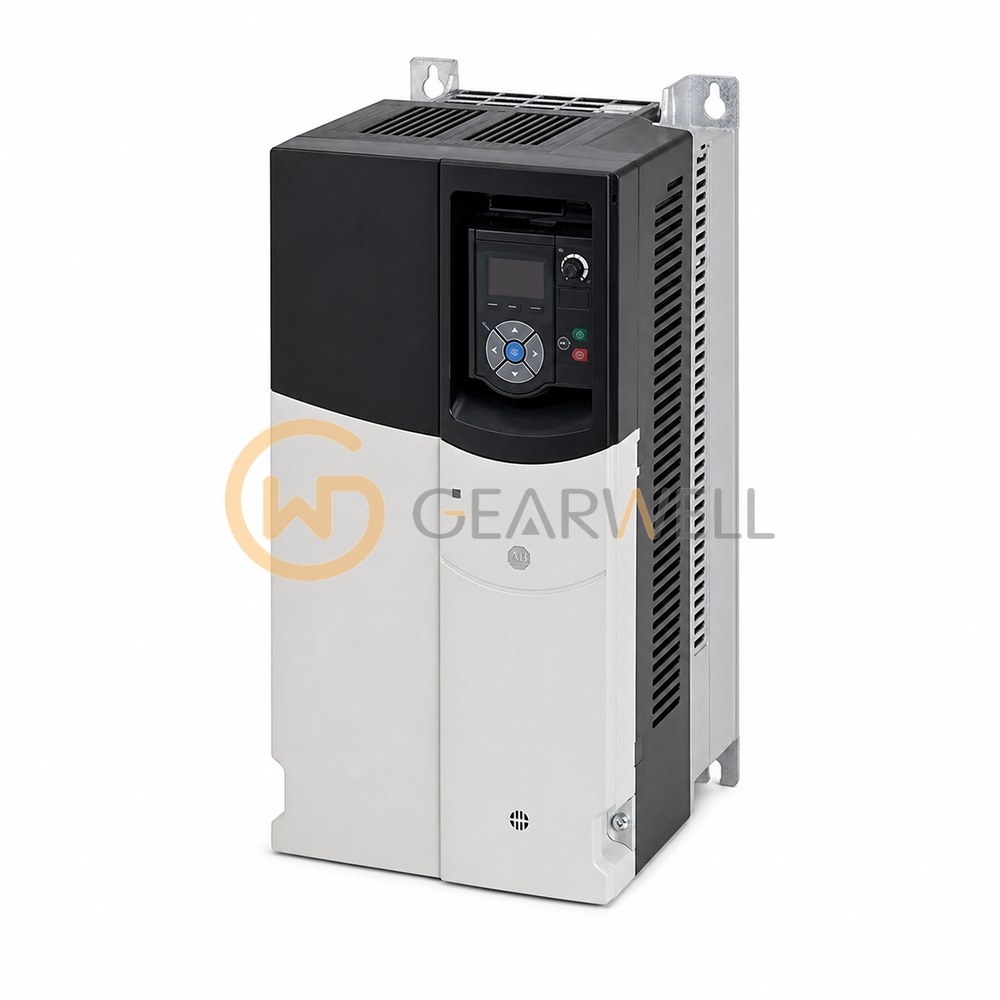

Allen-Bradley 20F11NC072JA0NNNNN PowerFlex 753 400 V AC 37 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F11NC072JA0NNNNN
- GEARWELL SKU
- GWP-000000779
- Category
- Variable Frequency Drives
Key specifications
- Heavy-duty motor power
- 30 kW, heavy duty
- Normal-duty motor power
- 37 kW, normal duty
- Normal-duty output current
- 72 A continuous, normal duty
- Nominal input voltage
- 400 V AC, three-phase
- Drive family
- PowerFlex 753
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F11NC072JA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 4, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 72 A and 37 kW for normal duty and 60 A and 30 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F11NC072JA0NNNNN PowerFlex 753 400 V AC 37 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11NC072JA0NNNNN |
| Category | Variable Frequency Drives |
| Heavy-duty motor power | 30 kW, heavy duty |
| Normal-duty motor power | 37 kW, normal duty |
| Normal-duty output current | 72 A continuous, normal duty |
| Nominal input voltage | 400 V AC, three-phase |
| Drive family | PowerFlex 753 |
| Input configuration | AC input with precharge and DC terminals |
| Drive frame | 4 |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Operator interface | No factory-fitted HIM |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
| Configured enclosure | IP20, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
