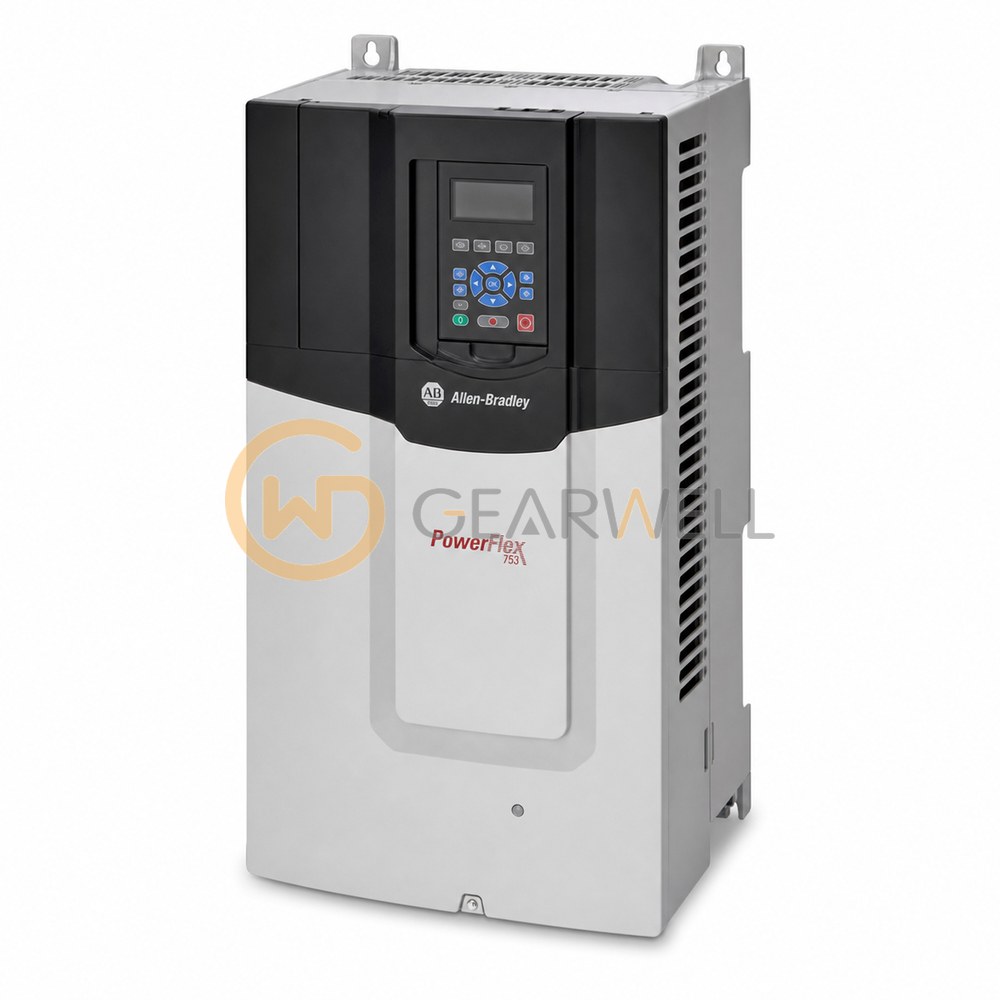

Allen-Bradley 20F11NC037JA0NNNNN PowerFlex 753 400 V AC 18.5 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F11NC037JA0NNNNN
- GEARWELL SKU
- GWP-000001621
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 753
- Input configuration
- AC input with precharge and DC terminals
- Drive frame
- 3
- Braking hardware
- Internal braking transistor fitted; braking resistor not included
- Operator interface
- No factory-fitted HIM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F11NC037JA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 3, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 37 A and 18.5 kW for normal duty and 30 A and 15 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F11NC037JA0NNNNN PowerFlex 753 400 V AC 18.5 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11NC037JA0NNNNN |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 753 |
| Input configuration | AC input with precharge and DC terminals |
| Drive frame | 3 |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Operator interface | No factory-fitted HIM |
| Rated motor output | 37 A continuous, normal duty; 18.5 kW normal duty; 15 kW heavy duty |
| Nominal input voltage | 400 V AC, three-phase |
| Configured enclosure | IP20, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
