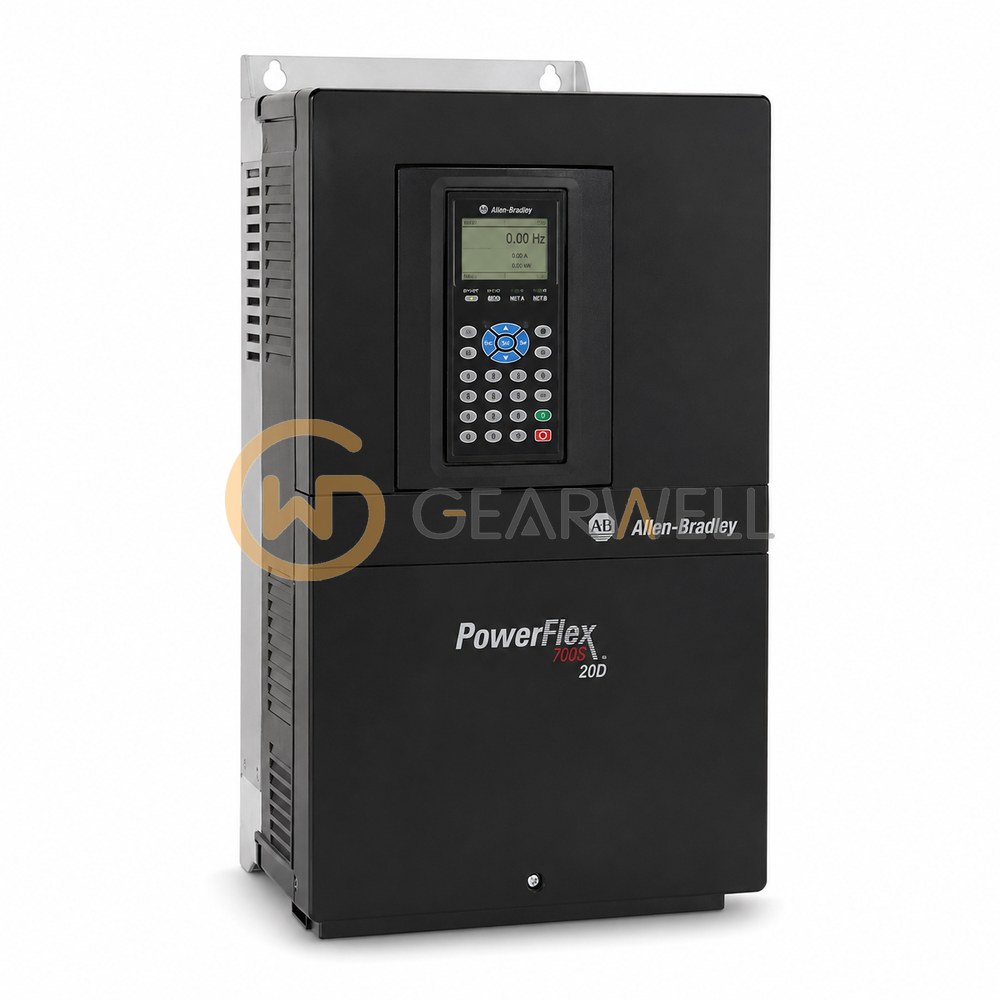

Allen-Bradley 20DD065A0EYNACGNE PowerFlex 700S 480 V AC 50 hp Drive

Product overview

The Allen-Bradley 20DD065A0EYNACGNE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 50 HP normal duty and 40 HP heavy duty, with 65 A continuous output current, 78 A for 1 minute and 104 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 3, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. It includes a DPI ControlNet (coax) communication adapter in the comm slot. It has the slim control cassette without SynchLink, the standard incremental encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
