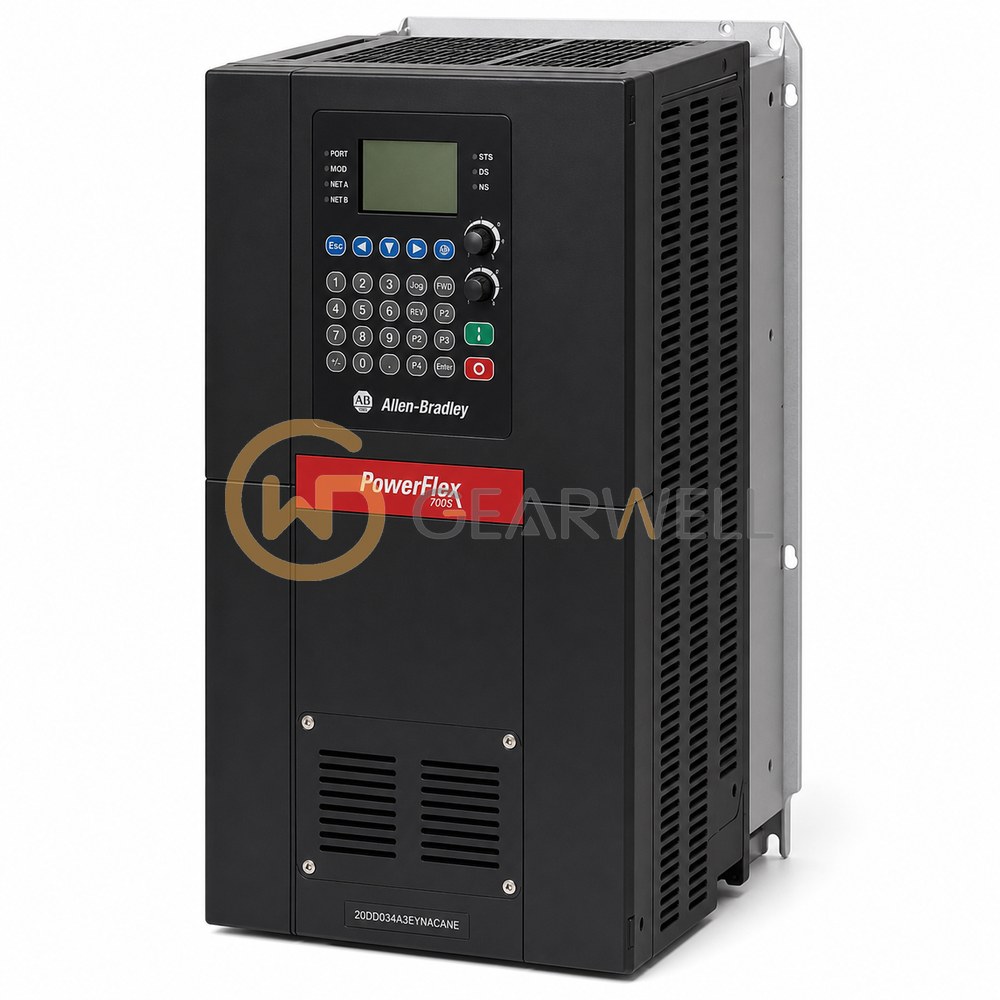

Allen-Bradley 20DD034A3EYNACANE PowerFlex 700S 480 V AC 25 hp Drive
- Brand
- Allen-Bradley
- Model
- 20DD034A3EYNACANE
- GEARWELL SKU
- GWP-000003561
- Category
- Variable Frequency Drives
Key specifications
- Enclosure
- IP20, NEMA Type 1, conformal coating
- Brake IGBT
- Brake IGBT installed
- Frame size
- 2
- Product type
- PowerFlex 700S AC motor drive
- Nominal input supply
- 480 V AC, three-phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20DD034A3EYNACANE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 25 HP normal duty and 20 HP heavy duty, with 34 A continuous output current, 40.5 A for 1 minute and 54 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 2, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It comes with a full numeric LCD HIM with a 7 line by 21 character backlit display. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. It includes a DPI ControlNet (coax) communication adapter in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, the standard incremental encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20DD034A3EYNACANE PowerFlex 700S 480 V AC 25 hp Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20DD034A3EYNACANE |
| Category | Variable Frequency Drives |
| Enclosure | IP20, NEMA Type 1, conformal coating |
| Brake IGBT | Brake IGBT installed |
| Frame size | 2 |
| Product type | PowerFlex 700S AC motor drive |
| Nominal input supply | 480 V AC, three-phase |
| Internal brake resistor | No internal brake resistor |
| EMC filtering | EMC filter with common-mode choke |
| Continuous output current | 34 A (normal duty at 480 V AC input) |
| Feedback option | Standard incremental encoder feedback |
| Heavy-duty motor power | 20 hp (heavy duty at 480 V AC input) |
| Normal-duty motor power | 25 hp (normal duty at 480 V AC input) |
| Operator interface | LCD display with full numeric keypad |
| Communication module | DPI ControlNet (coaxial) |
