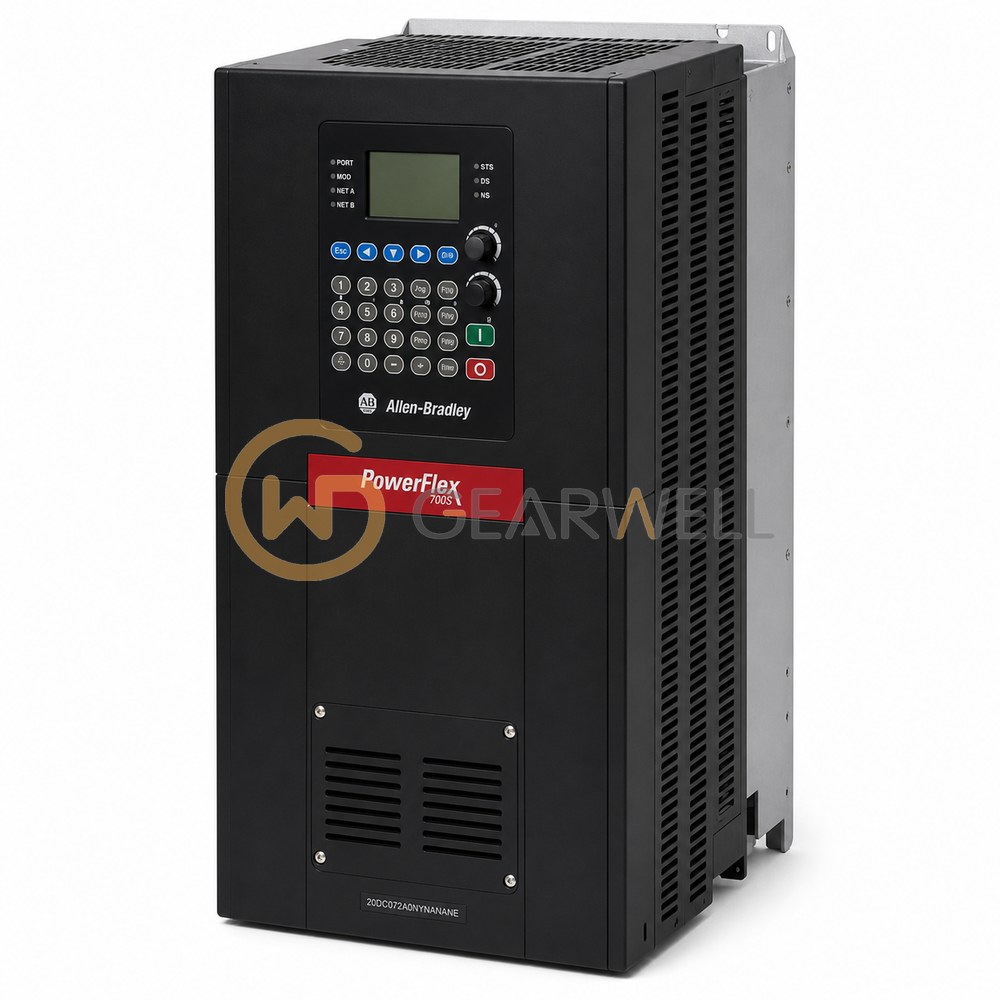

Allen-Bradley 20DC072A0NYNANANE PowerFlex 700S 400 V AC 37 kW Drive
- Brand
- Allen-Bradley
- Model
- 20DC072A0NYNANANE
- GEARWELL SKU
- GWP-000002045
- Category
- Variable Frequency Drives
Key specifications
- Enclosure
- IP20, NEMA Type 1, conformal coating
- Brake IGBT
- Brake IGBT installed
- Frame size
- 3
- Product type
- PowerFlex 700S AC motor drive
- Nominal input supply
- 400 V AC, three-phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20DC072A0NYNANANE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 380…400 V AC 3-phase input it is rated 37 kW normal duty and 30 kW heavy duty, with 72 A continuous output current, 84 A for 1 minute and 112 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 3, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. No communication adapter is fitted in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, the standard incremental encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection. It is supplied without documentation.
Technical reference
| Product name | Allen-Bradley 20DC072A0NYNANANE PowerFlex 700S 400 V AC 37 kW Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20DC072A0NYNANANE |
| Category | Variable Frequency Drives |
| Enclosure | IP20, NEMA Type 1, conformal coating |
| Brake IGBT | Brake IGBT installed |
| Frame size | 3 |
| Product type | PowerFlex 700S AC motor drive |
| Nominal input supply | 400 V AC, three-phase |
| Internal brake resistor | No internal brake resistor |
| EMC filtering | EMC filter with common-mode choke |
| Continuous output current | 72 A (normal duty at 400 V AC input) |
| Feedback option | Standard incremental encoder feedback |
| Heavy-duty motor power | 30 kW (heavy duty at 400 V AC input) |
| Normal-duty motor power | 37 kW (normal duty at 400 V AC input) |
| Operator interface | No HIM |
| Communication module | No communication module |
