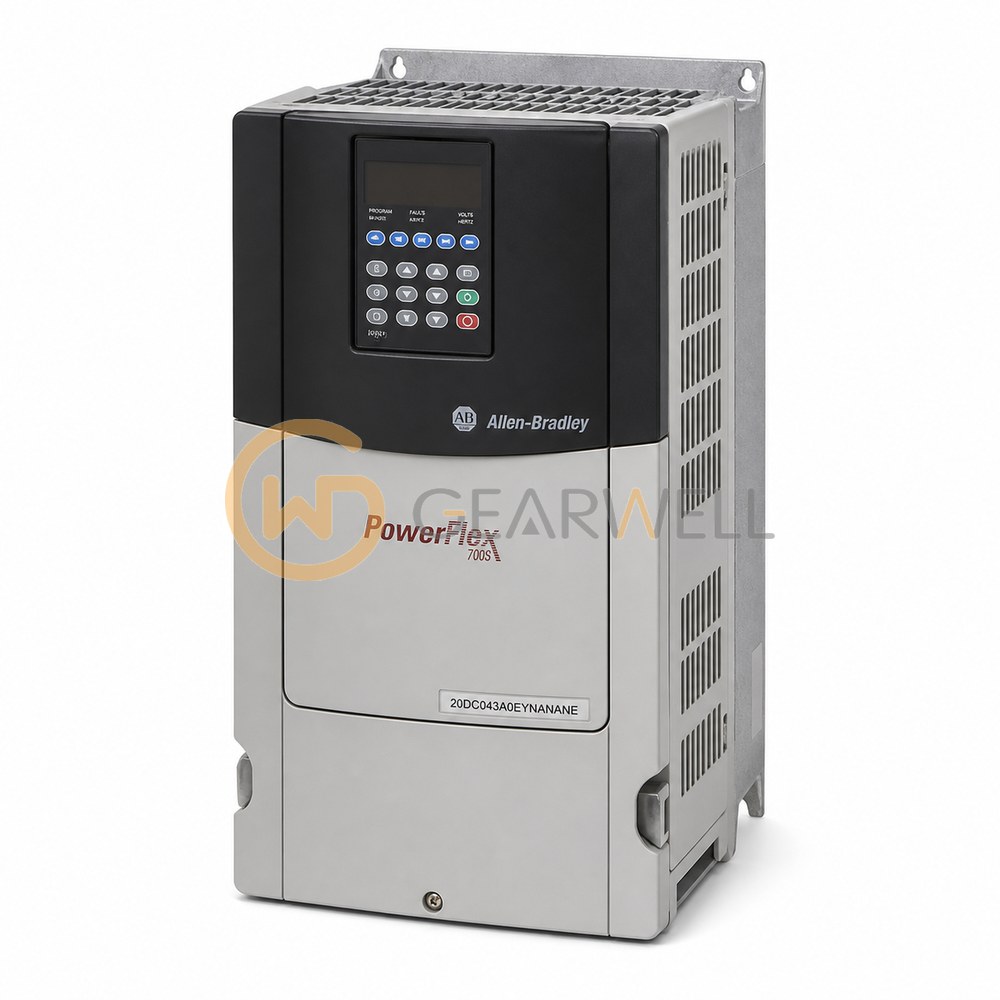

Allen-Bradley 20DC043A0EYNANANE PowerFlex 700S 400 V AC 22 kW Drive
- Brand
- Allen-Bradley
- Model
- 20DC043A0EYNANANE
- GEARWELL SKU
- GWP-000002689
- Category
- Variable Frequency Drives
Key specifications
- Brake IGBT
- Brake IGBT installed
- Frame size
- 3
- Nominal input supply
- 400 V AC, three-phase
- Enclosure
- IP20, NEMA Type 1, conformal coating
- Continuous output current
- 43 A (normal duty at 400 V AC input)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20DC043A0EYNANANE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 380…400 V AC 3-phase input it is rated 22 kW normal duty and 18.5 kW heavy duty, with 43 A continuous output current, 56 A for 1 minute and 74 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 3, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. No communication adapter is fitted in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, the standard incremental encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20DC043A0EYNANANE PowerFlex 700S 400 V AC 22 kW Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20DC043A0EYNANANE |
| Category | Variable Frequency Drives |
| Brake IGBT | Brake IGBT installed |
| Frame size | 3 |
| Nominal input supply | 400 V AC, three-phase |
| Enclosure | IP20, NEMA Type 1, conformal coating |
| Continuous output current | 43 A (normal duty at 400 V AC input) |
| Nominal supply frequency | 50 Hz |
| Heavy-duty motor power | 18.5 kW (heavy duty at 400 V AC input) |
| Normal-duty motor power | 22 kW (normal duty at 400 V AC input) |
| Input apparent power | 28.2 kVA (normal duty at 400 V AC) |
| Input current rating | 40.7 A (normal duty at 400 V AC input) |
| IP protection | IP20 |
