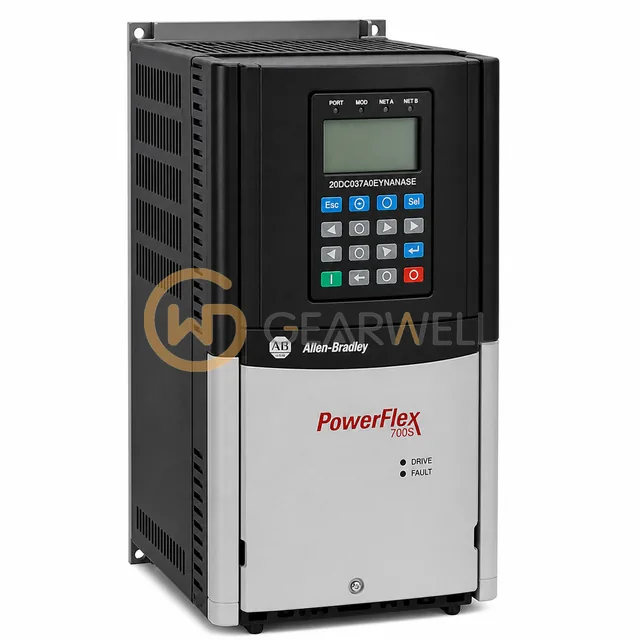

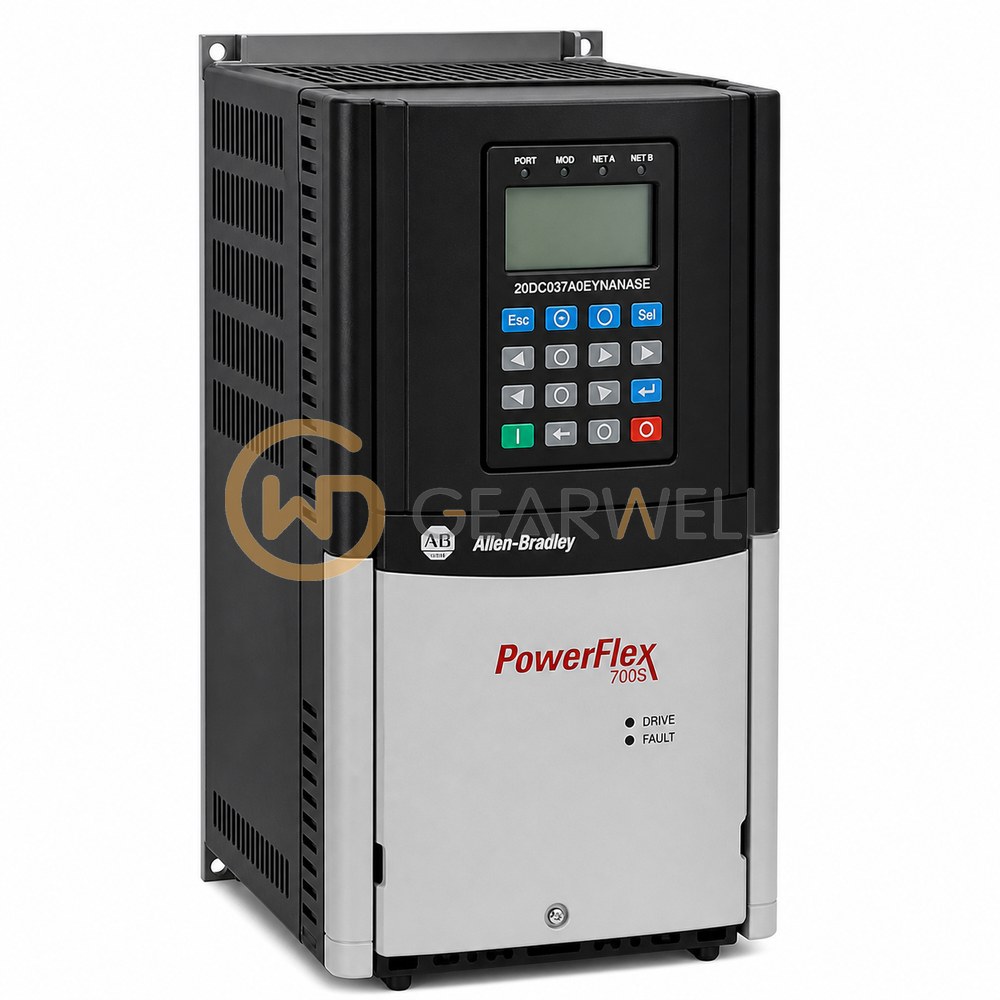

Allen-Bradley 20DC037A0EYNANASE PowerFlex 700S 400 V AC 18.5 kW Drive

Product overview

The Allen-Bradley 20DC037A0EYNANASE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 380…400 V AC 3-phase input it is rated 18.5 kW normal duty and 15 kW heavy duty, with 37 A continuous output current, 45 A for 1 minute and 60 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 2, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. No communication adapter is fitted in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, Safe Torque Off with a second encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
