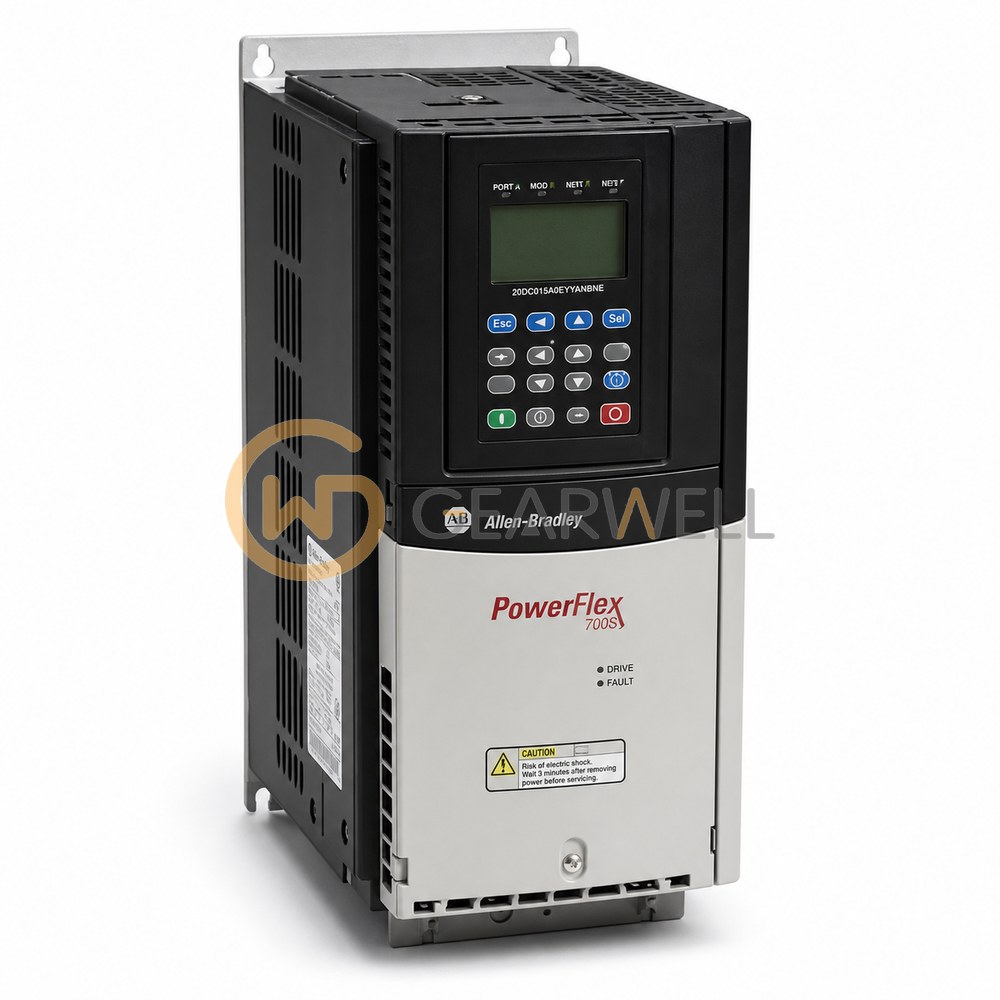

Allen-Bradley 20DC015A0EYYANBNE PowerFlex 700S 400 V AC 7.5 kW Drive

Product overview

The Allen-Bradley 20DC015A0EYYANBNE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 380…400 V AC 3-phase input it is rated 7.5 kW normal duty and 5.5 kW heavy duty, with 15.4 A continuous output current, 17.2 A for 1 minute and 23.1 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 1, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT and a brake resistor. It has an integral CE EMC filter and common mode choke. No communication adapter is fitted in the comm slot. It has the expanded control cassette with SynchLink, the standard incremental encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
