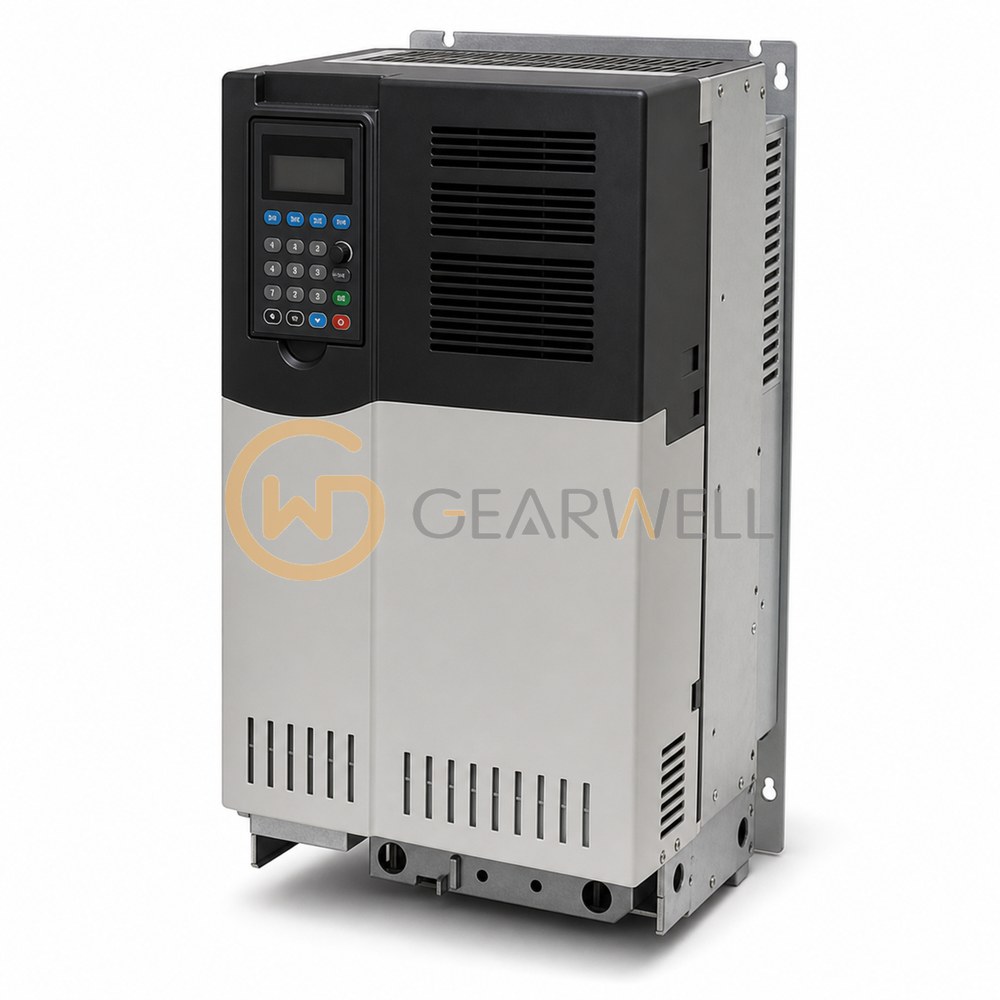

Allen-Bradley 20BD014A3AYNANC0 PowerFlex 700 480 V 10 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20BD014A3AYNANC0
- GEARWELL SKU
- GWP-000000848
- Category
- Variable Frequency Drives
Key specifications
- Motor type
- AC motor
- Application
- Industrial AC motor speed control
- Drive family
- PowerFlex 700
- Product type
- Variable-frequency AC motor drive
- Normal-duty motor output
- 14 A continuous, 10 hp normal duty; frame 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20BD014A3AYNANC0 is a PowerFlex 700 AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 10 HP normal duty and 7.5 HP heavy duty, with 14 A continuous output current, 16.5 A for 60 s and 22 A for 3 s. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 1, rated for 0…50 °C surrounding air without derating (typical). It comes with an LCD HIM with a full numeric keypad and a 7 line x 21 character backlit display. It has an internal dynamic brake transistor (IGBT) but no internal brake resistor. It has an integral CE EMC filter and common mode choke. No internal communication adapter is fitted. It has the Vector Control option with 24V DC I/O. Motor control is volts per hertz, sensorless vector or vector control with Force Technology, with a 0…420 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20BD014A3AYNANC0 PowerFlex 700 480 V 10 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20BD014A3AYNANC0 |
| Category | Variable Frequency Drives |
| Motor type | AC motor |
| Application | Industrial AC motor speed control |
| Drive family | PowerFlex 700 |
| Product type | Variable-frequency AC motor drive |
| Normal-duty motor output | 14 A continuous, 10 hp normal duty; frame 1 |
| Motor control configuration | Vector control; 24 V DC digital inputs |
| Manufacturer catalog prefix | 20B |
| Control and I/O | Vector control; 24 V DC digital inputs |
| Operator interface | LCD display with full numeric keypad |
| Factory communication module | No factory communication module |
| Feedback and braking | No encoder feedback option; Brake IGBT installed; no internal brake resistor |
