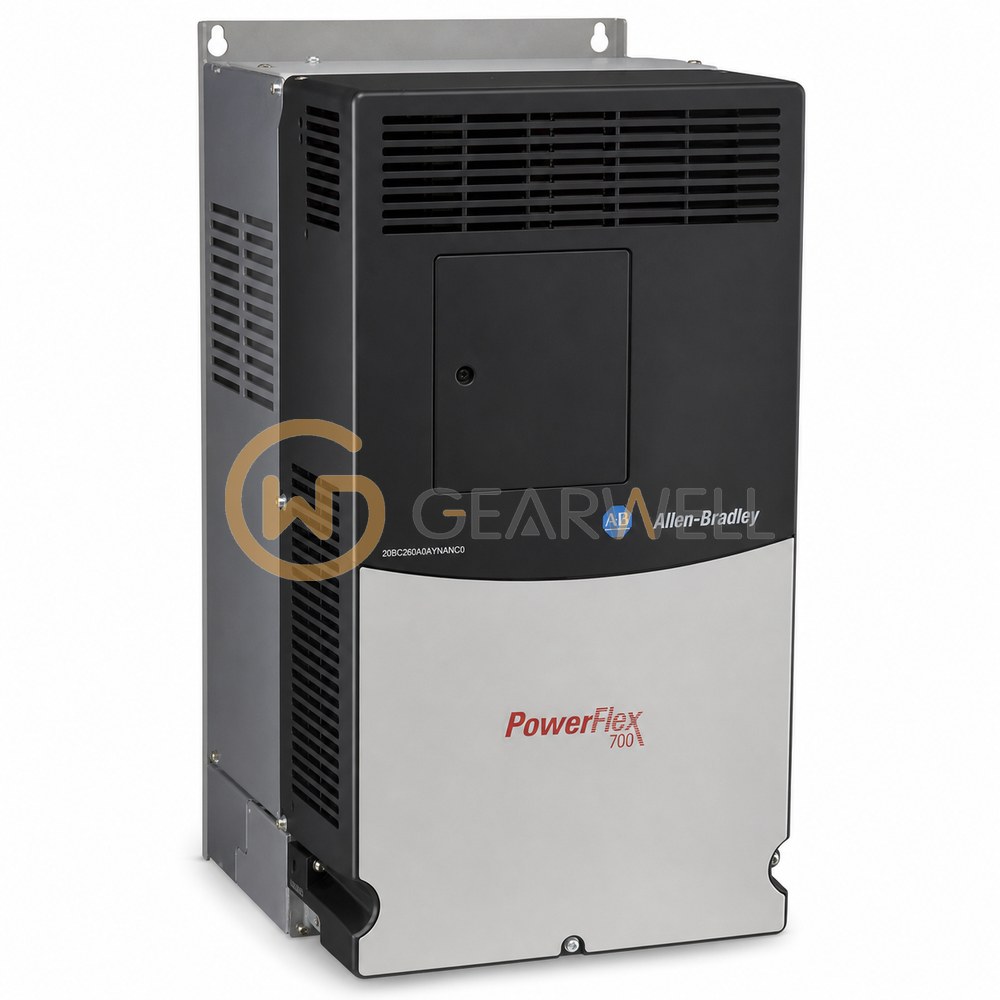

Allen-Bradley 20BC260A0AYNANC0 PowerFlex 700 400 V 132 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20BC260A0AYNANC0
- GEARWELL SKU
- GWP-000002977
- Category
- Variable Frequency Drives
Key specifications
- Normal-duty motor output
- 260 A continuous, 132 kW normal duty; frame 6
- Nominal input voltage
- 400 V AC
- Enclosure
- IP20 / NEMA / UL Type 1, with conformal coating
- AC input frequency
- 47-63 Hz
- Nominal line voltage
- 400 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20BC260A0AYNANC0 is a PowerFlex 700 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 132 kW normal duty and 110 kW heavy duty, with 260 A continuous output current, 286 A for 60 s and 390 A for 3 s; in heavy duty it delivers 205 A continuous, 308 A for 60 s and 410 A for 3 s. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 6, rated for 0…50 °C surrounding air without derating (typical). It is supplied with a blank cover instead of a HIM. It has an internal dynamic brake transistor (IGBT) but no internal brake resistor. It has an integral CE EMC filter and common mode choke. No internal communication adapter is fitted. It has the Vector Control option with 24V DC I/O. Motor control is volts per hertz, sensorless vector or vector control with Force Technology, with a 0…420 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20BC260A0AYNANC0 PowerFlex 700 400 V 132 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20BC260A0AYNANC0 |
| Category | Variable Frequency Drives |
| Normal-duty motor output | 260 A continuous, 132 kW normal duty; frame 6 |
| Nominal input voltage | 400 V AC |
| Enclosure | IP20 / NEMA / UL Type 1, with conformal coating |
| AC input frequency | 47-63 Hz |
| Nominal line voltage | 400 V AC |
| Rated input apparent power | 177 kVA at 400 V AC, three-phase; normal duty |
| Rated input current | 255 A at 400 V AC, three-phase; normal duty |
| Input supply rating | 400 V AC, three-phase |
| Control and I/O | Vector control; 24 V DC digital inputs |
| Operator interface | Blank cover; no HIM |
| Factory communication module | No factory communication module |
| Degree of protection | IP20 |
| Feedback and braking | No encoder feedback option; Brake IGBT installed; no internal brake resistor |
