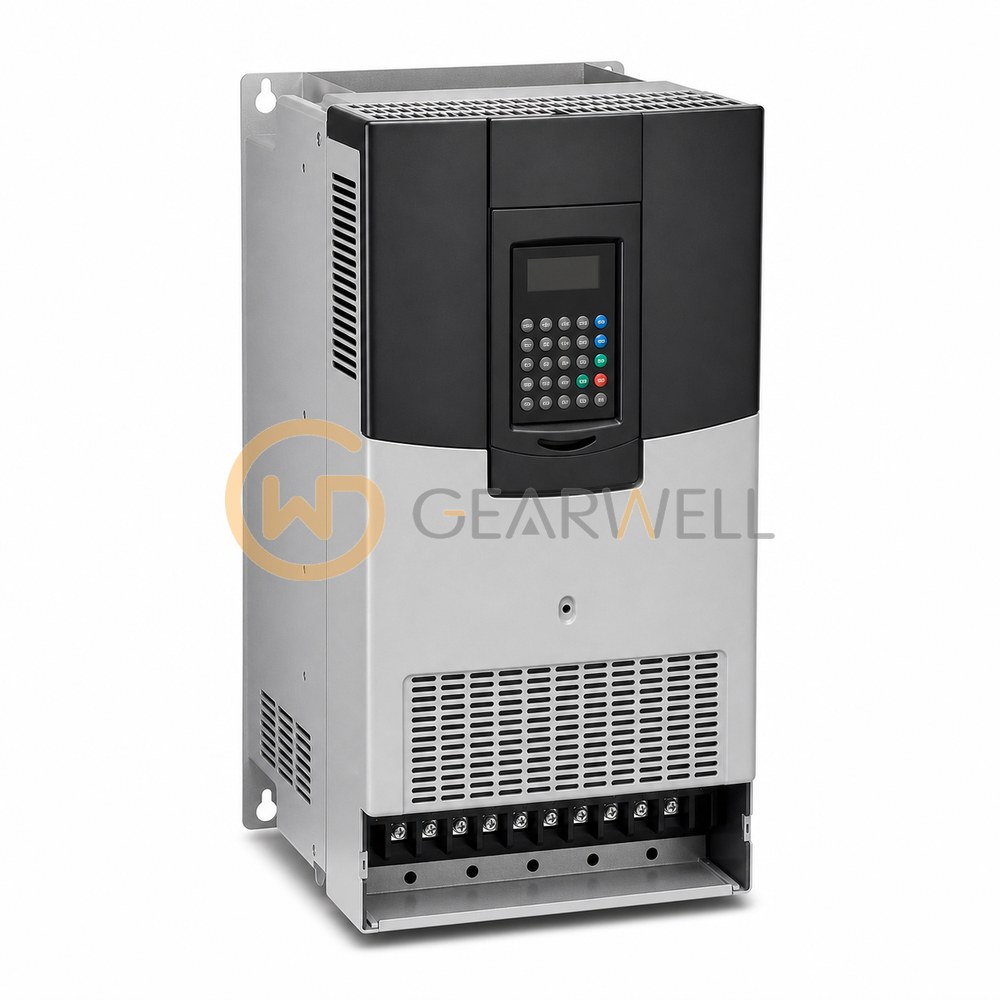

Allen-Bradley 20BC037A3NYNANA0 PowerFlex 700 400 V 18.5 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20BC037A3NYNANA0
- GEARWELL SKU
- GWP-000000362
- Category
- Variable Frequency Drives
Key specifications
- Normal-duty motor output
- 37 A continuous, 18.5 kW normal duty; frame 2
- Nominal input voltage
- 400 V AC
- AC input frequency
- 47-63 Hz
- Nominal line voltage
- 400 V AC
- Control and I/O
- Standard control; 24 V AC/DC digital inputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20BC037A3NYNANA0 is a PowerFlex 700 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 18.5 kW normal duty and 15 kW heavy duty, with 37 A continuous output current, 45 A for 60 s and 60 A for 3 s. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 2, rated for 0…50 °C surrounding air without derating (typical). It comes with an LCD HIM with a full numeric keypad and a 7 line x 21 character backlit display. It has an internal dynamic brake transistor (IGBT) but no internal brake resistor. It has an integral CE EMC filter and common mode choke. No internal communication adapter is fitted. It has standard control with 24V DC/AC I/O. Motor control is volts per hertz or sensorless vector, with a 0…400 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection. It is supplied without the printed manual.
Technical reference
| Product name | Allen-Bradley 20BC037A3NYNANA0 PowerFlex 700 400 V 18.5 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20BC037A3NYNANA0 |
| Category | Variable Frequency Drives |
| Normal-duty motor output | 37 A continuous, 18.5 kW normal duty; frame 2 |
| Nominal input voltage | 400 V AC |
| AC input frequency | 47-63 Hz |
| Nominal line voltage | 400 V AC |
| Control and I/O | Standard control; 24 V AC/DC digital inputs |
| Operator interface | LCD display with full numeric keypad |
| Factory communication module | No factory communication module |
| Degree of protection | IP20 |
| Feedback and braking | No encoder feedback option; Brake IGBT installed; no internal brake resistor |
| Digital inputs | 6 |
| Analog inputs | 2 |
| Digital outputs | 2 |
| Analog outputs | 2 |
