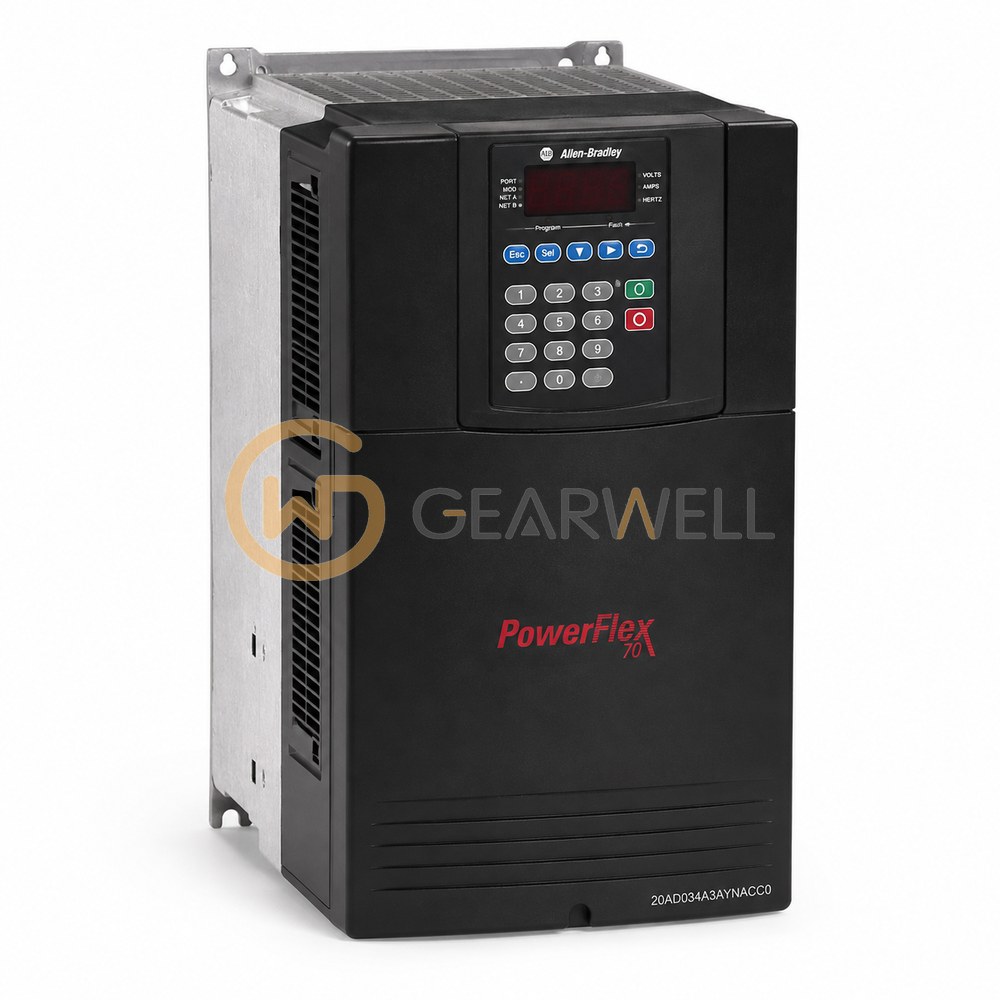

Allen-Bradley 20AD034A3AYNACC0 PowerFlex 70 480 V 25 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20AD034A3AYNACC0
- GEARWELL SKU
- GWP-000002224
- Category
- Variable Frequency Drives
Key specifications
- Input supply rating
- 480 V AC, three-phase
- Mounting and enclosure
- Panel mount; IP20 / NEMA Type 1
- Feedback option
- No encoder feedback option
- Input frequency tolerance
- 47–63 Hz
- Rated input apparent power (three-phase)
- 25.9 kVA at 480 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20AD034A3AYNACC0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 25 HP (18.5 kW) normal duty and 20 HP heavy duty, with 34 A continuous output current, 40.5 A for 60 s and 54 A for 3 s. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame D, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It comes with a full numeric LCD HIM with a 7-line x 21-character backlit display. It has an internal brake IGBT but no internal brake resistor, and an integral EMC filter. It includes an internal ControlNet (coax) communication adapter. It has the enhanced control option. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20AD034A3AYNACC0 PowerFlex 70 480 V 25 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20AD034A3AYNACC0 |
| Category | Variable Frequency Drives |
| Input supply rating | 480 V AC, three-phase |
| Mounting and enclosure | Panel mount; IP20 / NEMA Type 1 |
| Feedback option | No encoder feedback option |
| Input frequency tolerance | 47–63 Hz |
| Rated input apparent power (three-phase) | 25.9 kVA at 480 V AC |
| Rated input current (three-phase) | 31.2 A at 480 V AC |
| Braking hardware | Brake IGBT installed; no internal brake resistor |
| Control configuration | Enhanced control |
| Output current and duty ratings | 34 A continuous; 25 hp normal duty; 20 hp heavy duty |
| Operator interface | LCD with full numeric keypad |
| Output frequency (enhanced control) | 0–500 Hz |
| Factory communication module | ControlNet (coaxial) |
| Degree of protection | IP20 |
