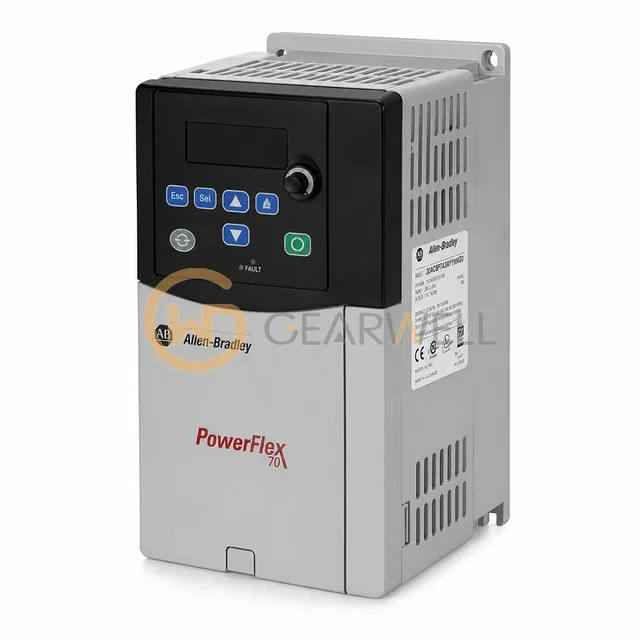

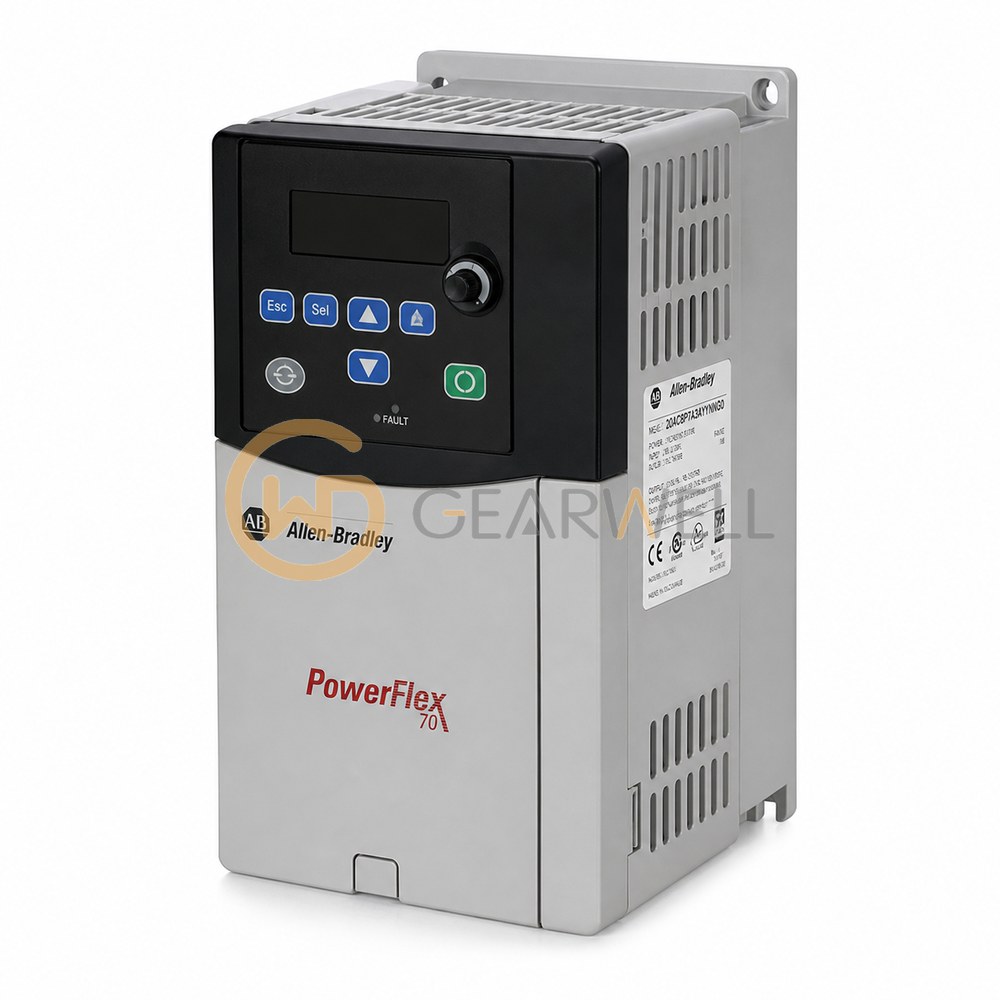

Allen-Bradley 20AC8P7A3AYYNNG0 PowerFlex 70 400 V 4 kW AC Drive

Product overview

The Allen-Bradley 20AC8P7A3AYYNNG0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 4 kW (5 HP) normal duty and 3 kW heavy duty, with 8.7 A continuous output current, 9.9 A for 60 s and 13.2 A for 3 s. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame B, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It comes with a full numeric LCD HIM with a 7-line x 21-character backlit display. It has an internal brake IGBT and an internal dynamic brake resistor for short braking periods, and is supplied without the integral EMC filter. No internal communication adapter is fitted. It has enhanced control with DriveGuard Safe Torque Off, which meets EN ISO 13849-1 Category 3. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
