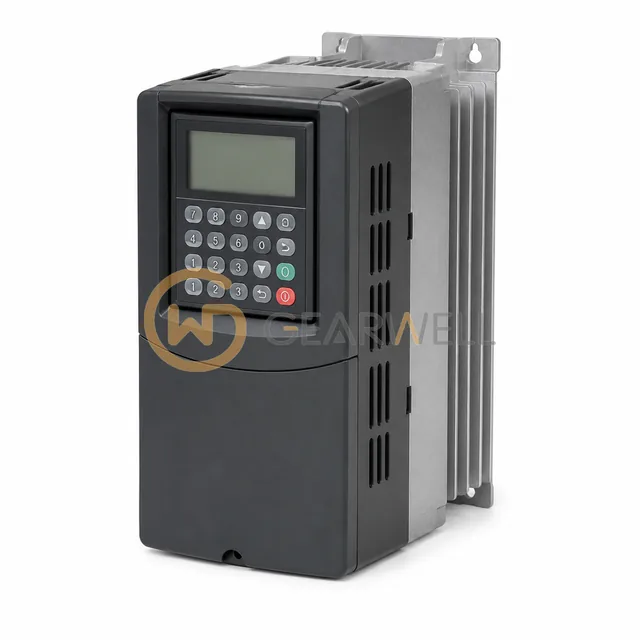

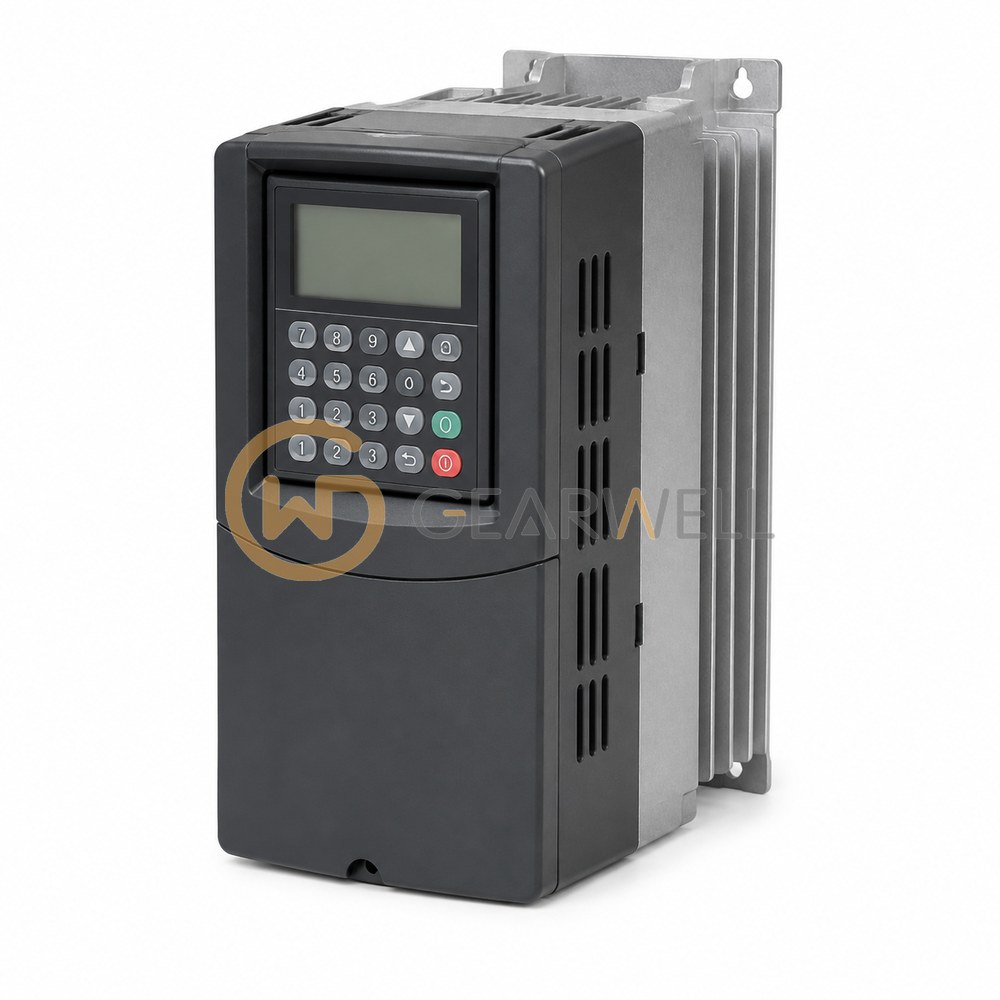

Allen-Bradley 20AC5P0A3AYNNDC0 Frequency Inverter

Product overview

The Allen-Bradley 20AC5P0A3AYNNDC0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 2.2 kW (3 HP) normal duty and 1.5 kW heavy duty, with 5 A continuous output current, 5.5 A for 60 s and 7.5 A for 3 s. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame B, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It comes with a full numeric LCD HIM with a 7-line x 21-character backlit display. It has an internal brake IGBT but no internal brake resistor, and is supplied without the integral EMC filter. It includes an internal DeviceNet communication adapter. It has the enhanced control option. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
