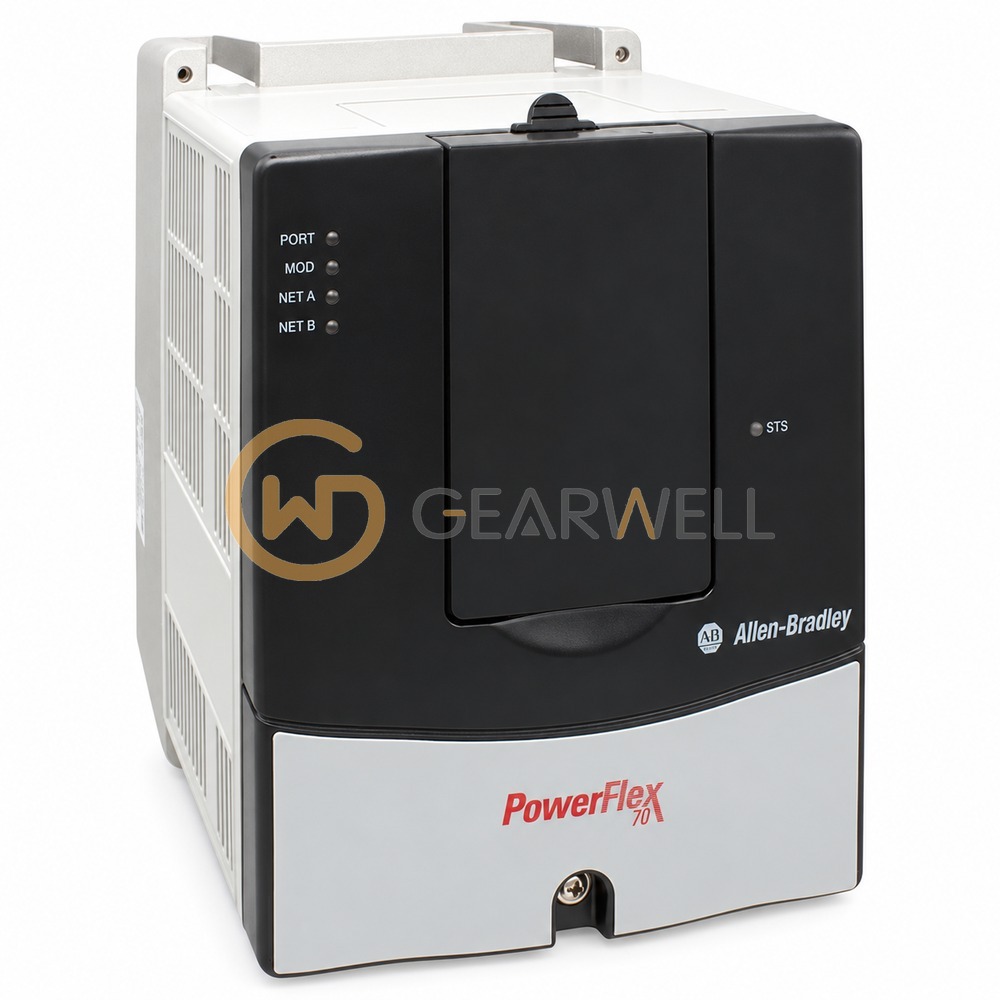

Allen-Bradley 20AC3P5A0AYNANC0 PowerFlex 70 AC Drive

Product overview

The Allen-Bradley 20AC3P5A0AYNANC0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 1.5 kW (2 HP) normal duty and 1.1 kW heavy duty, with 3.5 A continuous output current, 4.5 A for 60 s and 6 A for 3 s. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame B, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no internal brake resistor, and an integral EMC filter. No internal communication adapter is fitted. It has the enhanced control option. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
