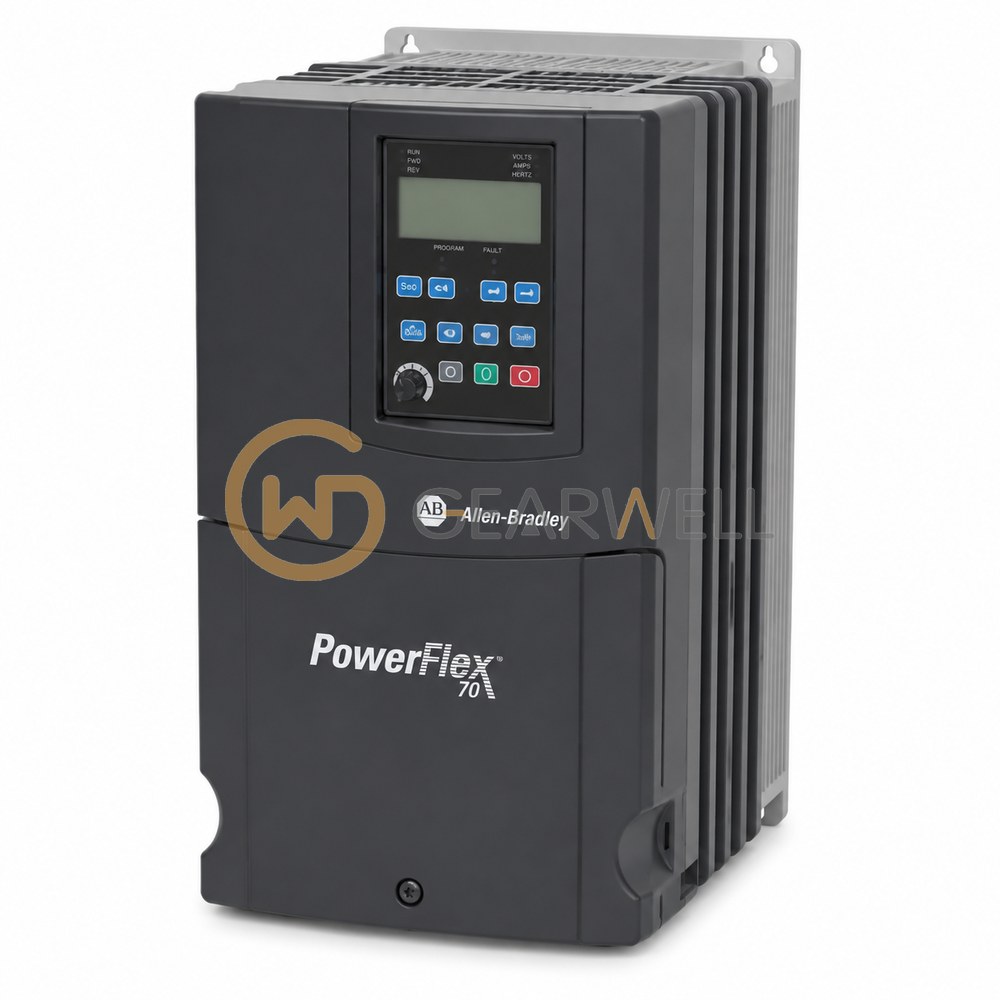

Allen-Bradley 20AC037A3AYNAEG0 PowerFlex 70 400 V 18.5 kW AC Drive

Product overview

The Allen-Bradley 20AC037A3AYNAEG0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 18.5 kW (25 HP) normal duty and 15 kW heavy duty, with 37 A continuous output current, 45 A for 60 s and 60 A for 3 s. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame D, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It comes with a full numeric LCD HIM with a 7-line x 21-character backlit display. It has an internal brake IGBT but no internal brake resistor, and an integral EMC filter. It includes an internal EtherNet/IP communication adapter. It has enhanced control with DriveGuard Safe Torque Off, which meets EN ISO 13849-1 Category 3. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
