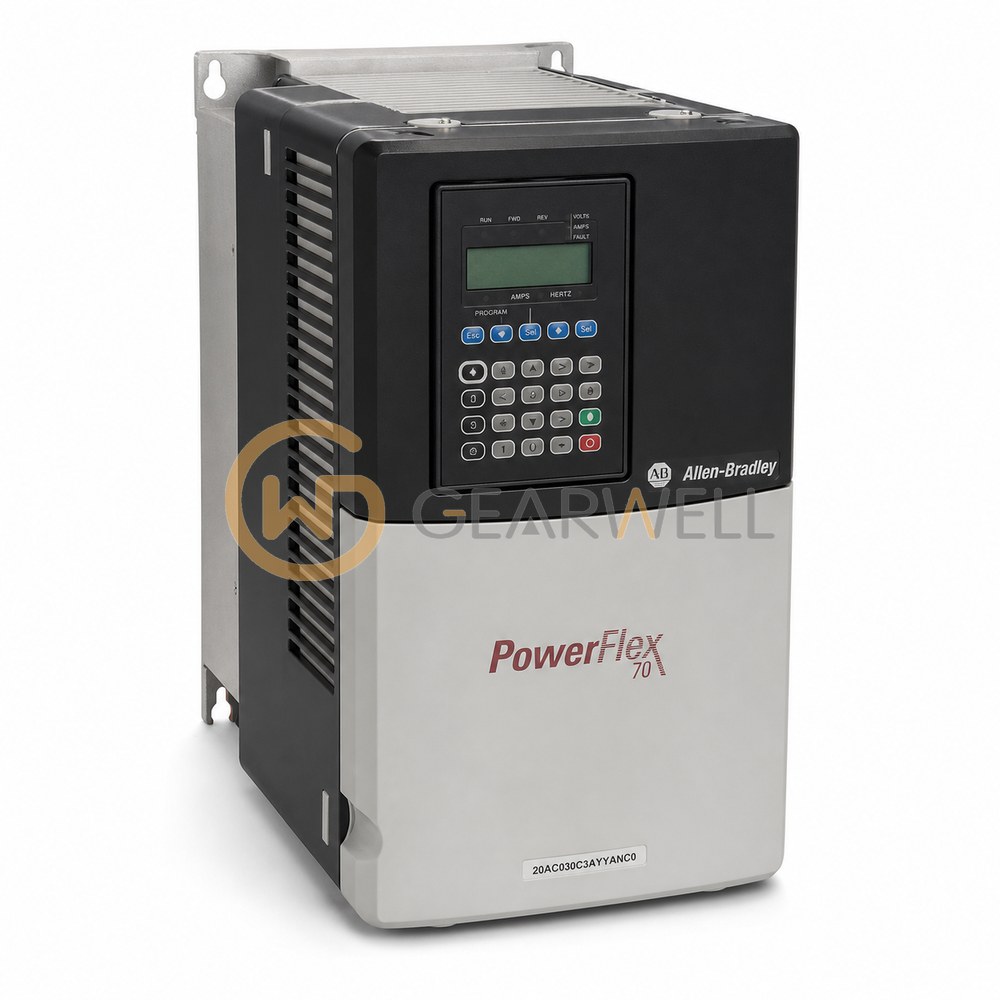

Allen-Bradley 20AC030C3AYYANC0 PowerFlex 70 400 V 15 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20AC030C3AYYANC0
- GEARWELL SKU
- GWP-000003743
- Category
- Variable Frequency Drives
Key specifications
- Input supply rating
- 400 V AC, three-phase
- Mounting and enclosure
- Wall/machine mount; IP66 / NEMA Type 4X/12, indoor use
- Feedback option
- No encoder feedback option
- Input frequency tolerance
- 47–63 Hz
- Catalogue input voltage rating
- 400 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20AC030C3AYYANC0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 15 kW (2 HP) normal duty and 11 kW heavy duty, with 30 A continuous output current, 33 A for 60 s and 45 A for 3 s. It is a wall/machine-mount IP66, NEMA/UL Type 4X/12 drive for indoor use, for mounting directly in the production environment, rated for 0…40 °C surrounding air without derating. Conformal coating is standard. It comes with a full numeric LCD HIM with a 7-line x 21-character backlit display. It has an internal brake IGBT and an internal dynamic brake resistor for short braking periods, and an integral EMC filter. No internal communication adapter is fitted. It has the enhanced control option. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20AC030C3AYYANC0 PowerFlex 70 400 V 15 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20AC030C3AYYANC0 |
| Category | Variable Frequency Drives |
| Input supply rating | 400 V AC, three-phase |
| Mounting and enclosure | Wall/machine mount; IP66 / NEMA Type 4X/12, indoor use |
| Feedback option | No encoder feedback option |
| Input frequency tolerance | 47–63 Hz |
| Catalogue input voltage rating | 400 V AC |
| Rated input apparent power (three-phase) | 21 kVA at 400 V AC |
| Rated input current (three-phase) | 30.3 A at 400 V AC |
| Braking hardware | Brake IGBT installed; internal brake resistor installed |
| Control configuration | Enhanced control |
| Output current and duty ratings | 30 A continuous; 15 kW normal duty; 11 kW heavy duty |
| Operator interface | LCD with full numeric keypad |
| Factory communication module | None installed |
| Degree of protection | IP66 (indoor use) |
