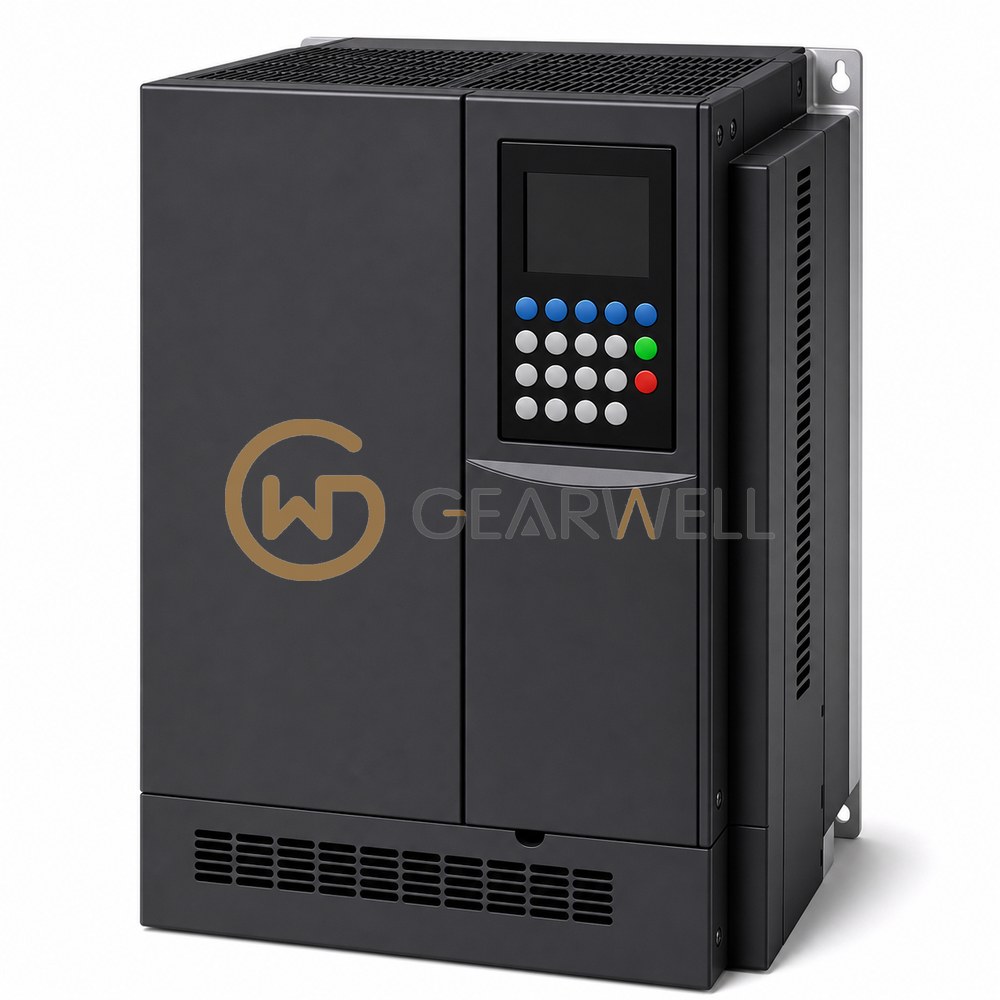

Allen-Bradley 20AC022C3AYNAEC1 PowerFlex 70 400 V 11 kW AC Drive

Product overview

The Allen-Bradley 20AC022C3AYNAEC1 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 11 kW (15 HP) normal duty and 7.5 kW heavy duty, with 22 A continuous output current, 24.2 A for 60 s and 33 A for 3 s. It is a wall/machine-mount IP66, NEMA/UL Type 4X/12 drive for indoor use, for mounting directly in the production environment, rated for 0…40 °C surrounding air without derating. Conformal coating is standard. It comes with a full numeric LCD HIM with a 7-line x 21-character backlit display. It has an internal brake IGBT but no internal brake resistor, and an integral EMC filter. It includes an internal EtherNet/IP communication adapter. It has the enhanced control option, and a 5V/12V encoder interface. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
