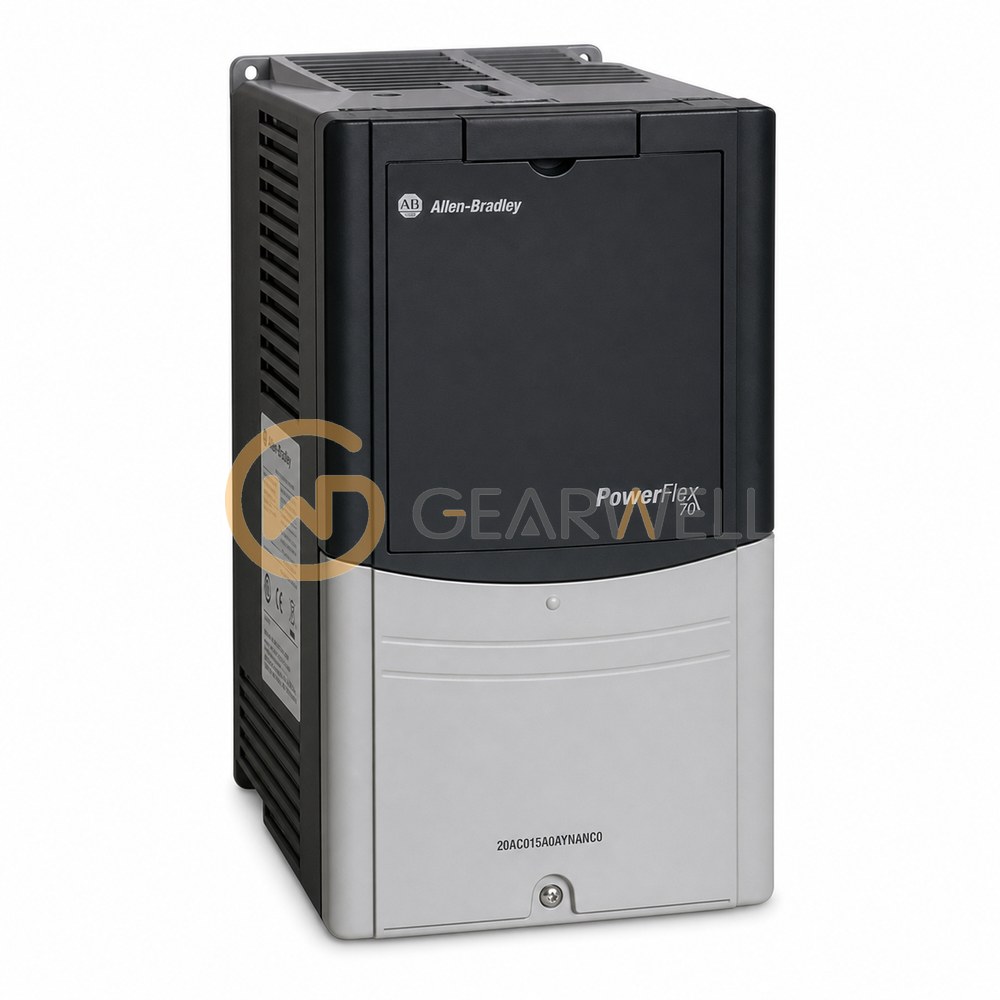

Allen-Bradley 20AC015A0AYNANC0 PowerFlex 70 AC Drive, 400 V, 7.5 kW
- Brand
- Allen-Bradley
- Model
- 20AC015A0AYNANC0
- GEARWELL SKU
- GWP-000001423
- Category
- Industrial Automation Parts
Key specifications
- Mains voltage
- 400 V AC, three-phase
- Enclosure type
- Panel mount, IP20 / NEMA Type 1, with conformal coating
- Human interface module
- No HIM; blank plate
- Input frequency tolerance
- 47 to 63 Hz
- Nominal input configuration
- 400 V AC, three-phase (380...480 V drive class)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20AC015A0AYNANC0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 400 V AC 3-phase input it is rated 7.5 kW (1 HP) normal duty and 5.5 kW heavy duty, with 15 A continuous output current, 17.2 A for 60 s and 23.1 A for 3 s. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame C, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no internal brake resistor, and an integral EMC filter. No internal communication adapter is fitted. It has the enhanced control option. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20AC015A0AYNANC0 PowerFlex 70 AC Drive, 400 V, 7.5 kW |
|---|---|
| Brand | Allen-Bradley |
| Model | 20AC015A0AYNANC0 |
| Category | Industrial Automation Parts |
| Mains voltage | 400 V AC, three-phase |
| Enclosure type | Panel mount, IP20 / NEMA Type 1, with conformal coating |
| Human interface module | No HIM; blank plate |
| Input frequency tolerance | 47 to 63 Hz |
| Nominal input configuration | 400 V AC, three-phase (380...480 V drive class) |
| Input apparent power rating | 10.4 kVA at 400 V AC, three-phase |
| Internal communication module | No communication module |
| Input current rating | 15.1 A at 400 V AC, three-phase |
| Braking configuration | Brake IGBT installed; no drive-mounted brake resistor |
| Control and feedback | Enhanced control with 24 V I/O; no feedback option |
| Output current and motor ratings | 15.4 A continuous; 7.5 kW normal duty, 5.5 kW heavy duty at 400 V AC, three-phase; frame C |
| Degree of protection (IP) | IP20 |
| Output overload current (400 V AC, three-phase) | 17.2 A for 60 s; 23.1 A for 3 s |
