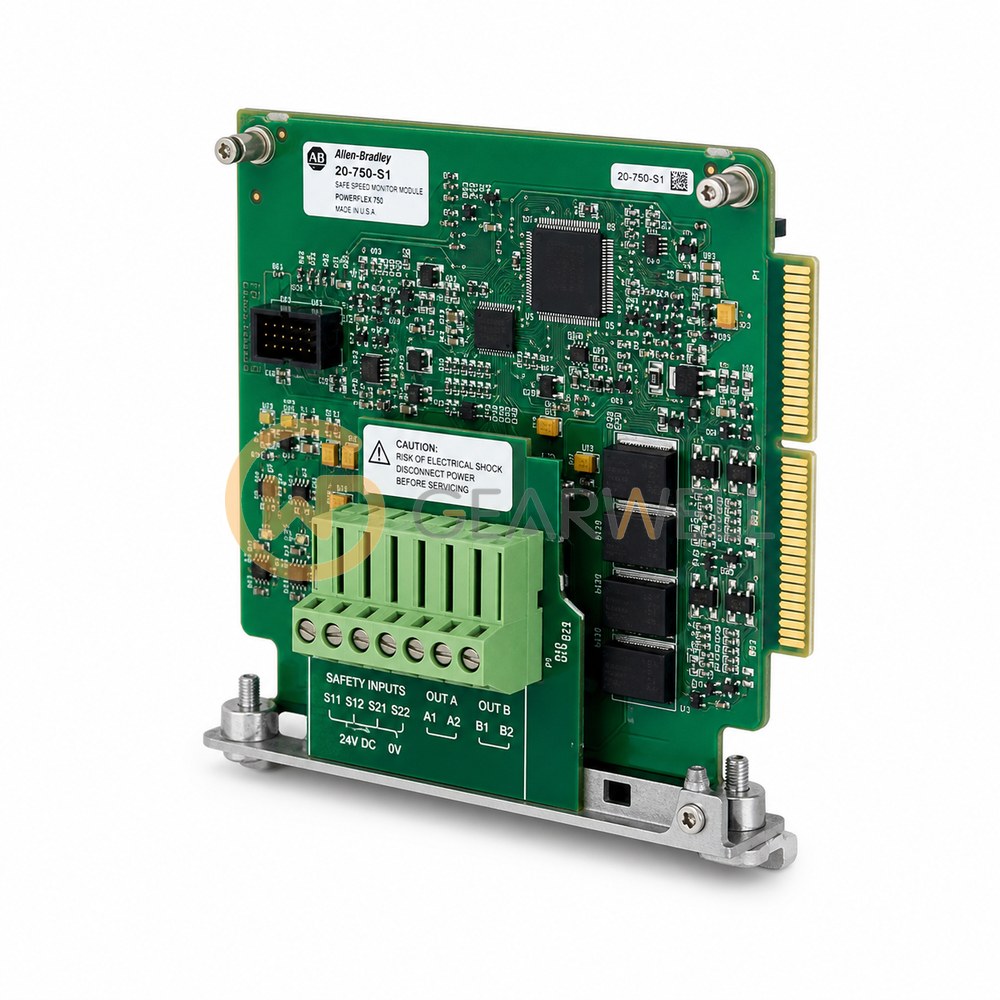

Allen-Bradley 20750S1 Safe Speed Monitor Option Module
- Brand
- Allen-Bradley
- Model
- 20750S1
- GEARWELL SKU
- GWP-000003808
- Category
- Drives and Motors
Key specifications
- Product type
- Safe Speed Monitor option module
- Voltage class
- C, D, E and F
- Compatible product series
- PowerFlex 750-Series
- Compatible drive frames
- All frames
- Official catalog number
- 20-750-S1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20-750-S1 is a Safe Speed Monitor option module for PowerFlex 750-Series drives. It combines Safe Torque Off with integrated safety relay functions and safe speed monitoring, so speed can be safely controlled while operators work on the process without stopping the machine. It is rated Cat. 4 and PLe per EN ISO 13849-1 and SIL CL3 per IEC 61508 and EN 62061 and consumes 36 W. It needs the dual incremental encoder or universal feedback option, and Frame 8 and 9 drives also need the 20-750-EMCSSM1-F8 EMC option kit.
Technical reference
| Product name | Allen-Bradley 20750S1 Safe Speed Monitor Option Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 20750S1 |
| Category | Drives and Motors |
| Product type | Safe Speed Monitor option module |
| Voltage class | C, D, E and F |
| Compatible product series | PowerFlex 750-Series |
| Compatible drive frames | All frames |
| Official catalog number | 20-750-S1 |
