Allen-Bradley 20750ENET2P Communication Option Module
- Brand
- Allen-Bradley
- Model
- 20750ENET2P
- GEARWELL SKU
- GWP-000000673
- Category
- Drives and Motors
Key specifications
- Product type
- Communication option module
- Ethernet ports
- 2
- Network protocol
- EtherNet/IP
- Compatible product series
- PowerFlex 750-Series
- Supported network topologies
- Device Level Ring, linear and star
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

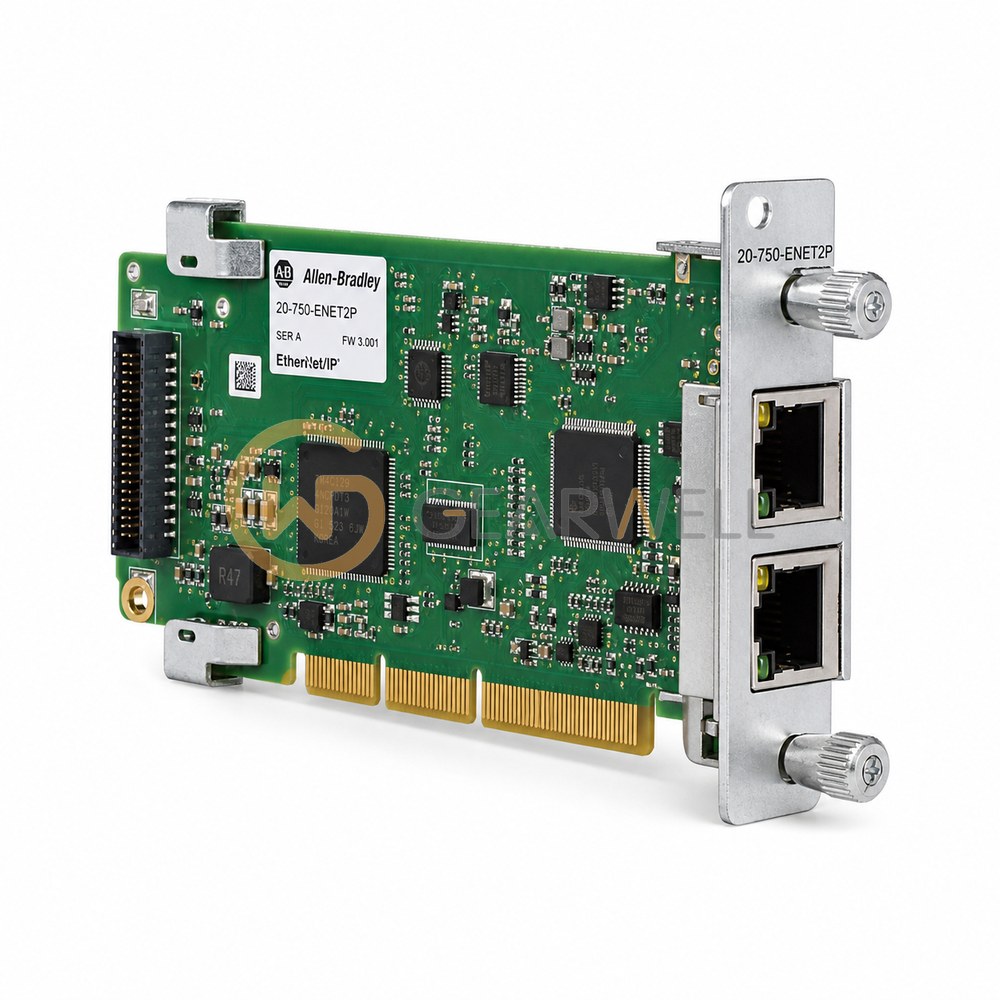

The Allen-Bradley 20-750-ENET2P is a dual-port EtherNet/IP option module for PowerFlex 750-Series drives. It runs at 10/100 Mbps half or full duplex on the network and talks to the drive over DPI at 500 Kbps, drawing 250 mA at 14V DC from the drive. It measures 68.0 x 150.0 x 26.0 mm and weighs 62 g.
Technical reference
| Product name | Allen-Bradley 20750ENET2P Communication Option Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 20750ENET2P |
| Category | Drives and Motors |
| Product type | Communication option module |
| Ethernet ports | 2 |
| Network protocol | EtherNet/IP |
| Compatible product series | PowerFlex 750-Series |
| Supported network topologies | Device Level Ring, linear and star |
| Official catalog number | 20-750-ENET2P |
