Allen-Bradley 20-750-ENETR PowerFlex 750 EtherNet/IP Adapter
- Brand
- Allen-Bradley
- Model
- 20-750-ENETR
- GEARWELL SKU
- GWP-000014714
- Category
- Industrial Communication
Key specifications
- Description
- PowerFlex 750 EtherNet-IP Adapter
- Catalog number
- 20-750-ENETR
- Lifecycle status (Rockwell Automation)
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

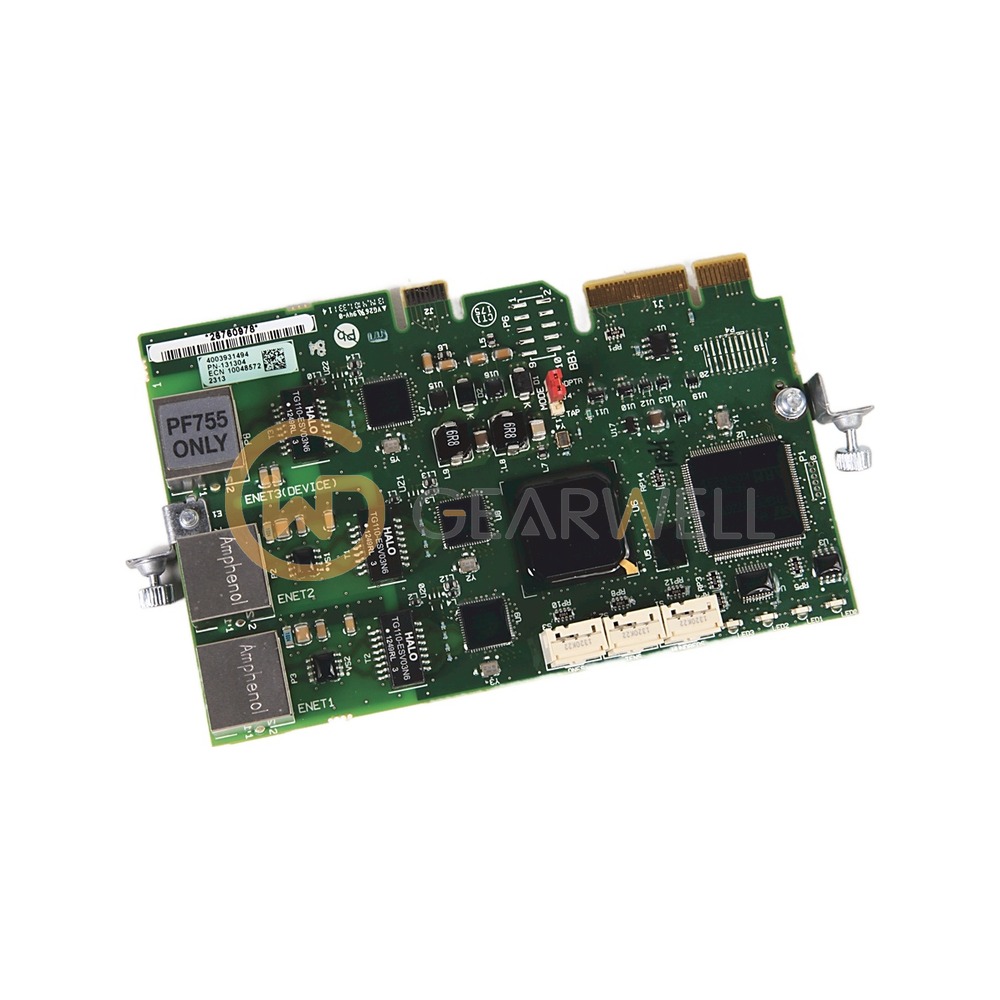

The Allen-Bradley 20-750-ENETR is a dual-port EtherNet/IP option module for PowerFlex 750-Series AC drives. It connects at 10/100 Mbps, half or full duplex, talks to the drive over DPI at 500 Kbps and draws 250 mA at 14V DC from the drive, with no separate network power. It measures 68.0 x 150.0 x 26.0 mm (HxLxW) and weighs 62 g.
Technical reference
| Product name | Allen-Bradley 20-750-ENETR PowerFlex 750 EtherNet/IP Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 20-750-ENETR |
| Category | Industrial Communication |
| Description | PowerFlex 750 EtherNet-IP Adapter |
| Catalog number | 20-750-ENETR |
| Lifecycle status (Rockwell Automation) | Active |
