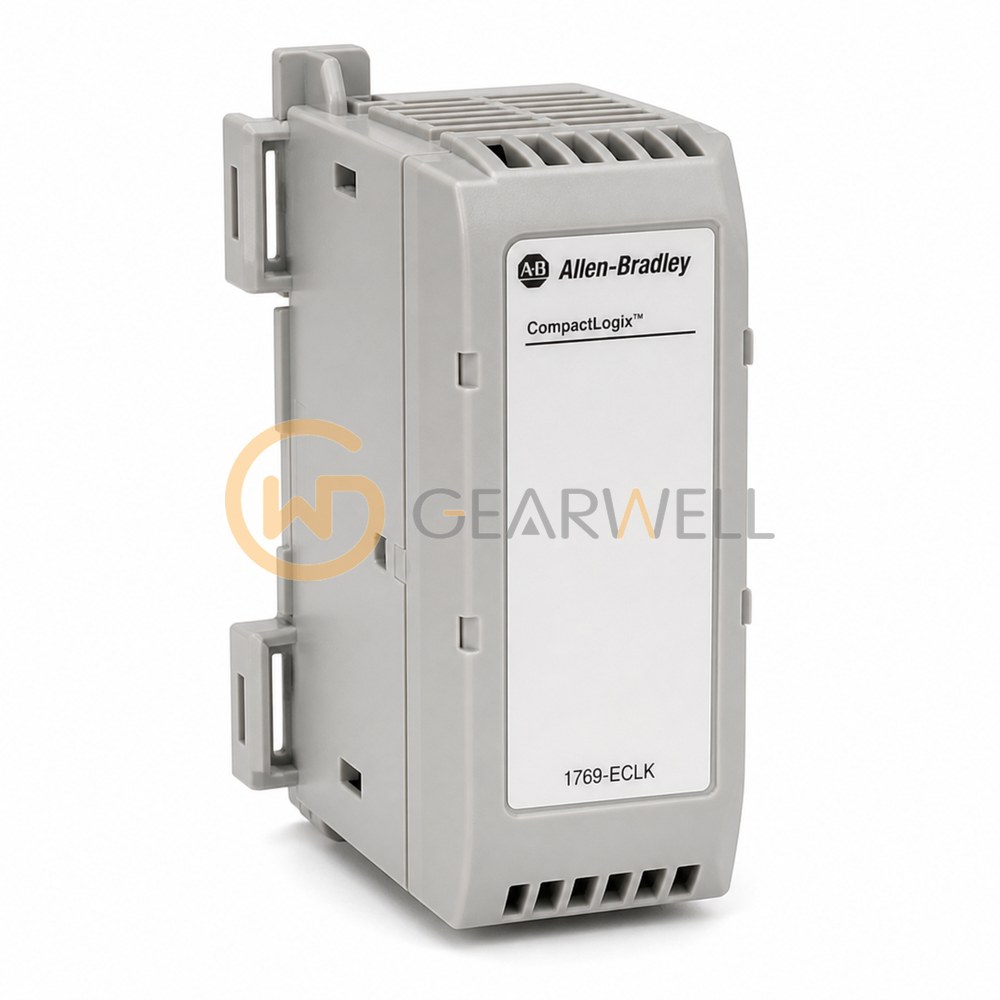

Allen-Bradley 1769-ECLK Compact I/O Left End Cap Terminator - Conformal Coated
- Brand
- Allen-Bradley
- Model
- 1769ECLK
- GEARWELL SKU
- GWP-000003362
- Category
- PLCs & I/O
Key specifications
- Approximate weight
- 130 g
- Catalog coating option
- Conformal coated
- Installation position
- Left end
- Enclosure type
- Open-style
- Body dimensions
- 118 x 15 x 87 mm (H x W x D)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-ECLK is the left end cap for a 1769 Compact I/O system. This K version adds conformal coating.
Technical reference
| Product name | Allen-Bradley 1769-ECLK Compact I/O Left End Cap Terminator - Conformal Coated |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769ECLK |
| Category | PLCs & I/O |
| Approximate weight | 130 g |
| Catalog coating option | Conformal coated |
| Installation position | Left end |
| Enclosure type | Open-style |
| Body dimensions | 118 x 15 x 87 mm (H x W x D) |
| Product type | Compact I/O left end cap / terminator |
| Current draw at 5.1 V DC | 5 mA |
| Current draw at 24 V DC | 0 mA |
| Operating altitude | Up to 2000 m without derating |
| Operating temperature | Above 0 deg C and below 60 deg C |
