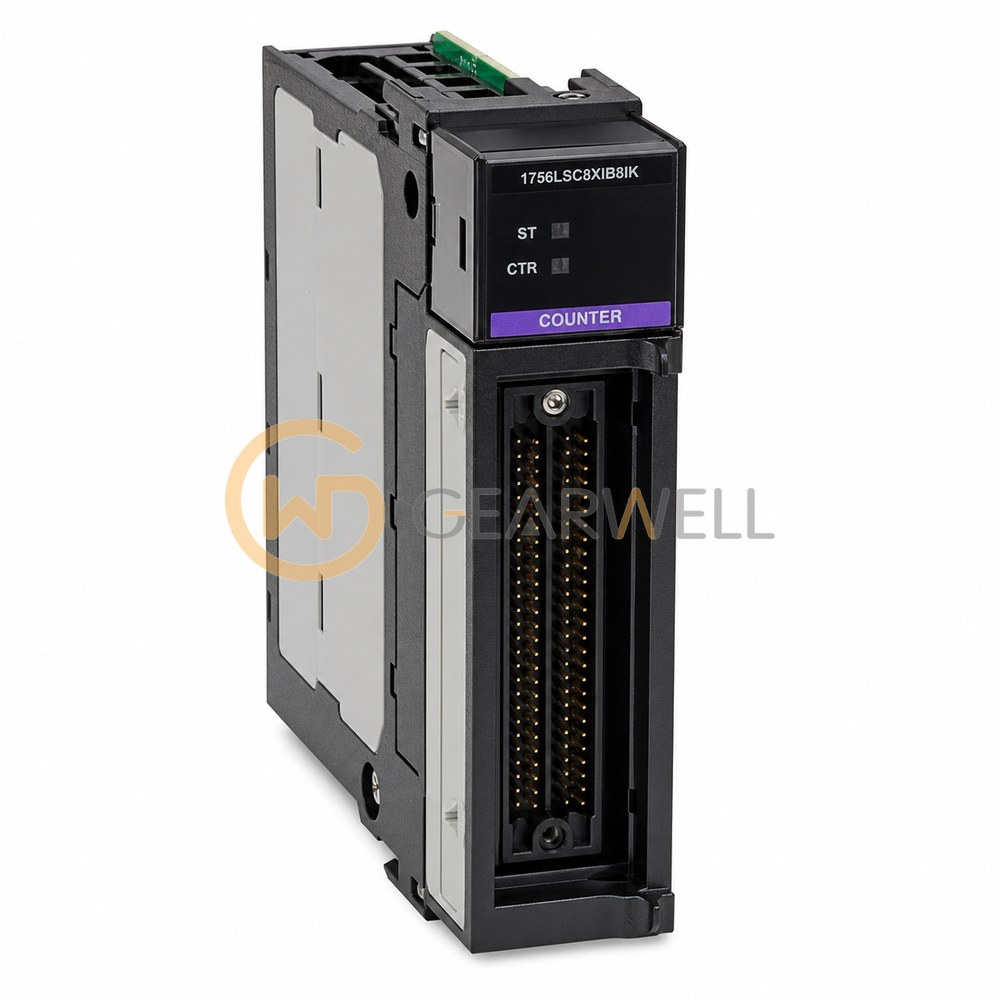

Allen-Bradley 1756-LSC8XIB8IK ControlLogix 8-Counter / 8-Input Module
- Brand
- Allen-Bradley
- Model
- 1756LSC8XIB8IK
- GEARWELL SKU
- GWP-000002933
- Category
- PLCs & I/O
Key specifications
- Counters
- 8 individually isolated
- Product type
- ControlLogix 8-Counter / 8-Input Module
- Hardware inputs
- 8 individually isolated
- Manufacturer lifecycle
- Active
- Conformal coating
- Yes
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-LSC8XIB8IK is a ControlLogix 10…30V low-speed counter module for the 1756 chassis. It has eight individually isolated counters up to 40 kHz with two user-configurable on/off windows each, plus eight individually isolated hardware inputs for standard input or counter control, all for 12/24V DC sink/source signals at 10…30V DC. It draws 275 mA at 5.1V DC and 3 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756-LSC8XIB8IK ControlLogix 8-Counter / 8-Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756LSC8XIB8IK |
| Category | PLCs & I/O |
| Counters | 8 individually isolated |
| Product type | ControlLogix 8-Counter / 8-Input Module |
| Hardware inputs | 8 individually isolated |
| Manufacturer lifecycle | Active |
| Conformal coating | Yes |
| Operating voltage | 10 to 30 V DC |
| Product description | Allen-Bradley 1756LSC8XIB8IK ControlLogix 8-Counter / 8-Input Module. Eight isolated counters, eight isolated hardware inputs and counting up to 40 kHz. The hardware inputs can serve as standard inputs or counter-control inputs. |
| Maximum counting frequency | 40 kHz |
