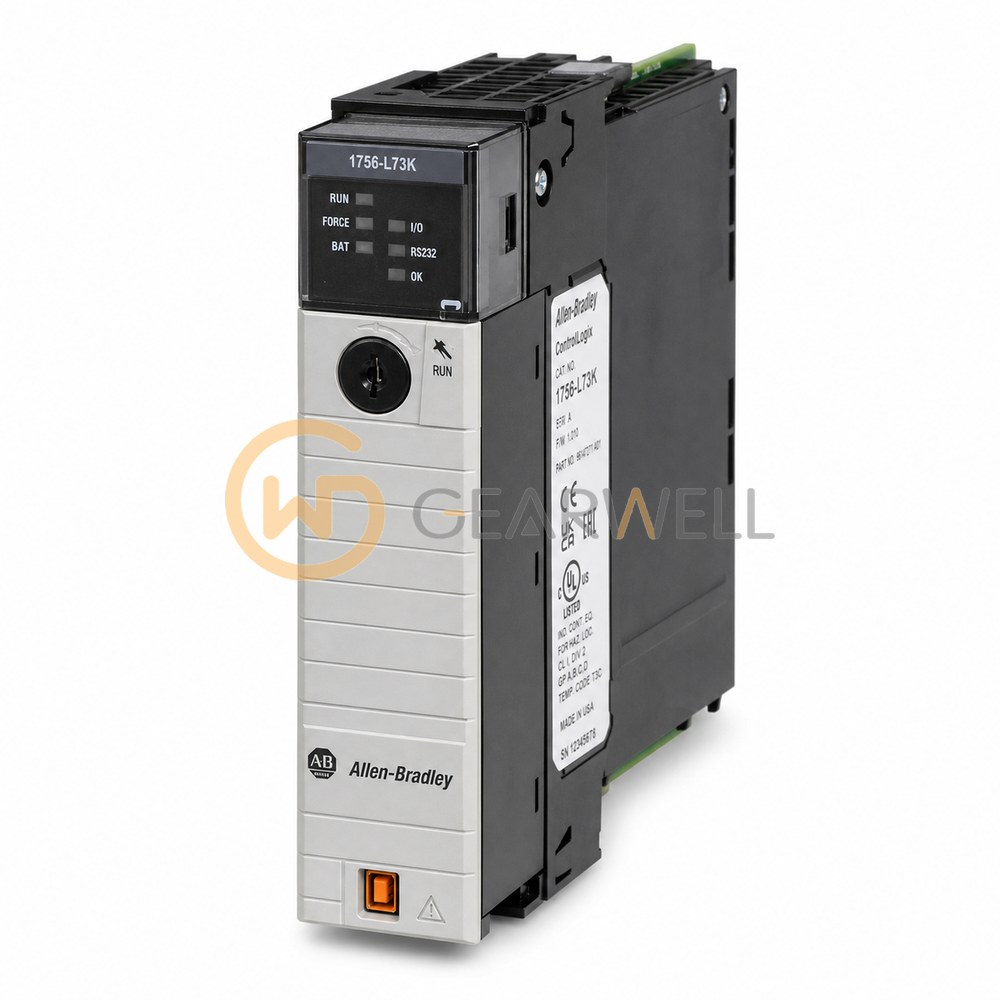

Allen-Bradley 1756-L73K ControlLogix 5570 Controller
- Brand
- Allen-Bradley
- Model
- 1756L73K
- GEARWELL SKU
- GWP-000002399
- Category
- PLCs & I/O
Key specifications
- I/O memory
- 0.98 MB
- Standard memory
- 8 MB
- Conformal coating
- Yes
- Analog I/O maximum
- 4,000
- Digital I/O maximum
- 128,000
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-L73K is a ControlLogix 5570 controller from Rockwell's ControlLogix 1756 range. It is the conformal coated version of the 1756-L73, with 8 MB of user memory. It has a USB 2.0 port for programming, 0.98 MB of I/O memory, up to 128,000 digital or 4000 analog I/O and a 1 GB SD card (1784-SD1) installed at the factory. It ships with a 1756-ESMCAP energy storage module instead of a battery, communicates through EtherNet/IP, ControlNet or DeviceNet modules in the chassis, and supports controller redundancy. It installs in a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-L73K ControlLogix 5570 Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756L73K |
| Category | PLCs & I/O |
| I/O memory | 0.98 MB |
| Standard memory | 8 MB |
| Conformal coating | Yes |
| Analog I/O maximum | 4,000 |
| Digital I/O maximum | 128,000 |
| Energy storage module | 1756-ESMCAP |
| Embedded network interface | None |
| Integrated motion axes | Up to 100 axes; actual capacity depends on controller/module configuration, loop type, network connections and compatible firmware |
| Local programming port | 1 USB; temporary local programming only, not permanent or hazardous-location use |
| Nonvolatile storage | Supports 1784-SD1 (1 GB) and 1784-SD2 (2 GB) |
