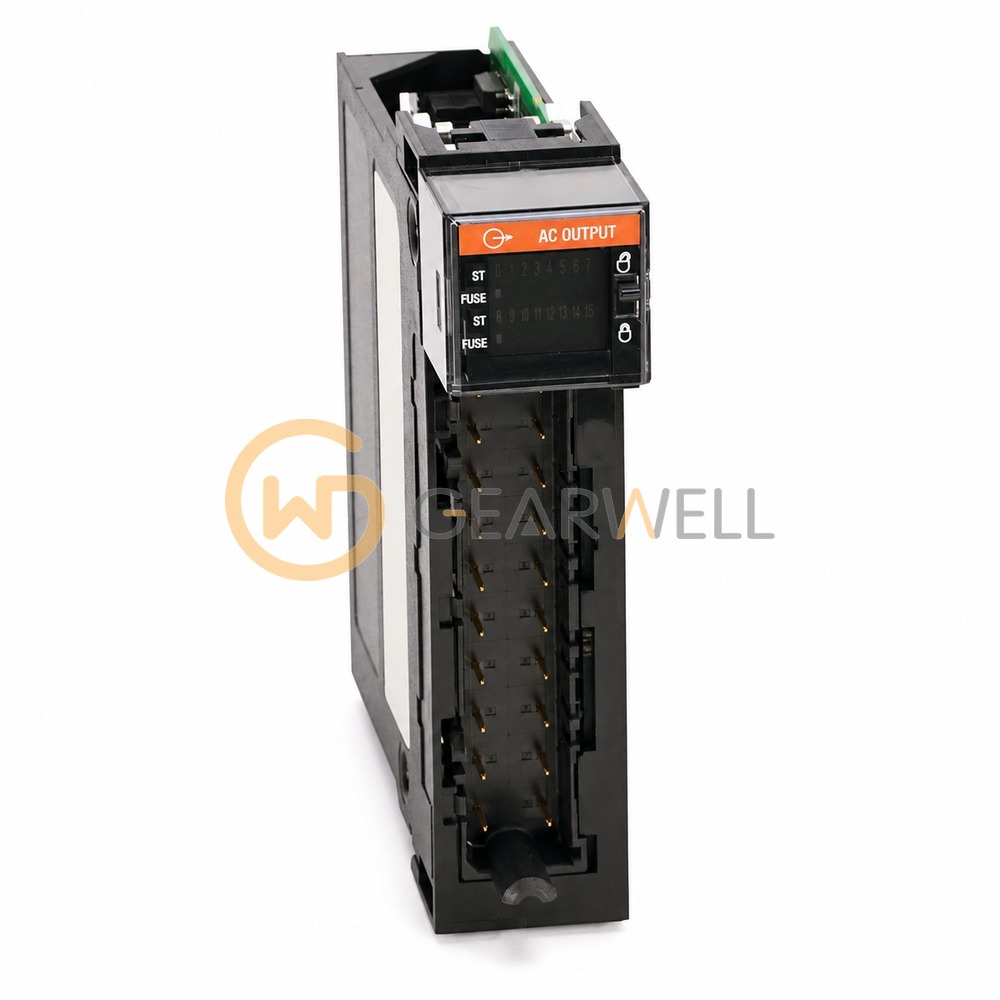

Allen-Bradley 1756-OA16 ControlLogix AC Digital Output Module
- Brand
- Allen-Bradley
- Model
- 1756-OA16
- GEARWELL SKU
- GWP-000001864
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OA16 is a ControlLogix 120/240V AC output module for the 1756 chassis. It has 16 outputs in two mechanically fused groups of eight for 120/240V AC loads, with an operating range of 74…265V AC at 47…63 Hz, up to 0.5 A per point and 4 A per module at 60 °C (140 °F). It draws 400 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756-OA16 ControlLogix AC Digital Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756-OA16 |
| Category | PLCs & I/O |
