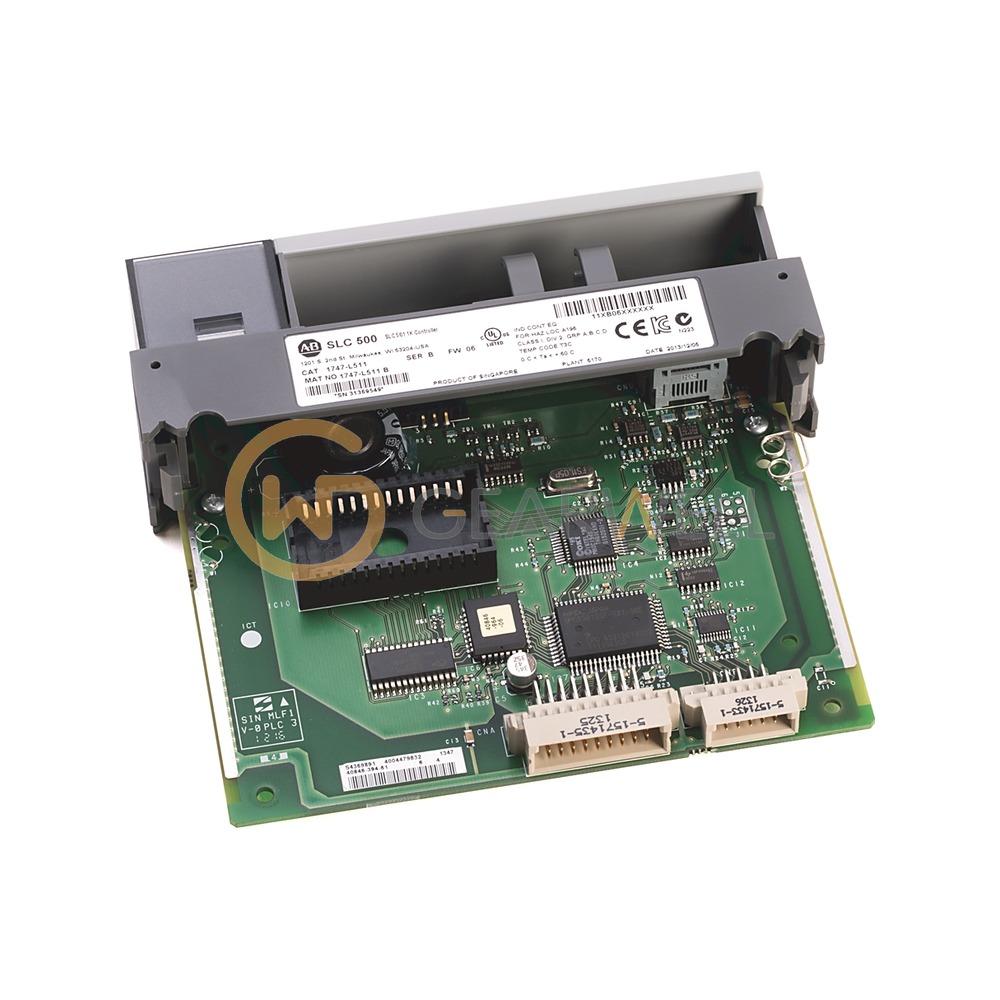

Allen-Bradley 1747-L511 SLC 5/01 1K Controller (SLC 500 CPU)
- Brand
- Allen-Bradley
- Model
- 1747-L511
- GEARWELL SKU
- GWP-000014175
- Category
- PLCs & I/O
Key specifications
- Memory
- 1KB
- Processor
- SLC 5/01 Controller, 1K Memory
- Description
- 1746 SLC System, SLC 5/01 Controller, 1K Memory - DH 485
- Power supply
- 1746-P1 to 1746-P7
- Catalog number
- 1747-L511
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1747-L511 is an SLC 5/01 modular processor with 1K words of memory and a DH-485 slave port on board. It draws 90 mA at 5V and 0 mA at 24V from the backplane. It takes an optional 1747-M1 or 1747-M2 EEPROM memory module, and its 1747-BA lithium battery backs up RAM for about five years. It is used in 1746 modular chassis, up to 3 chassis with 30 slots in total, and is programmed with RSLogix 500.
Technical reference
| Product name | Allen-Bradley 1747-L511 SLC 5/01 1K Controller (SLC 500 CPU) |
|---|---|
| Brand | Allen-Bradley |
| Model | 1747-L511 |
| Category | PLCs & I/O |
| Memory | 1KB |
| Processor | SLC 5/01 Controller, 1K Memory |
| Description | 1746 SLC System, SLC 5/01 Controller, 1K Memory - DH 485 |
| Power supply | 1746-P1 to 1746-P7 |
| Catalog number | 1747-L511 |
| Lifecycle status | Discontinued |
| Communication ports | DH-485 |
| Backplane current @ 5 V | 90 mA |
| Backplane current @ 24 V | 0 mA |
