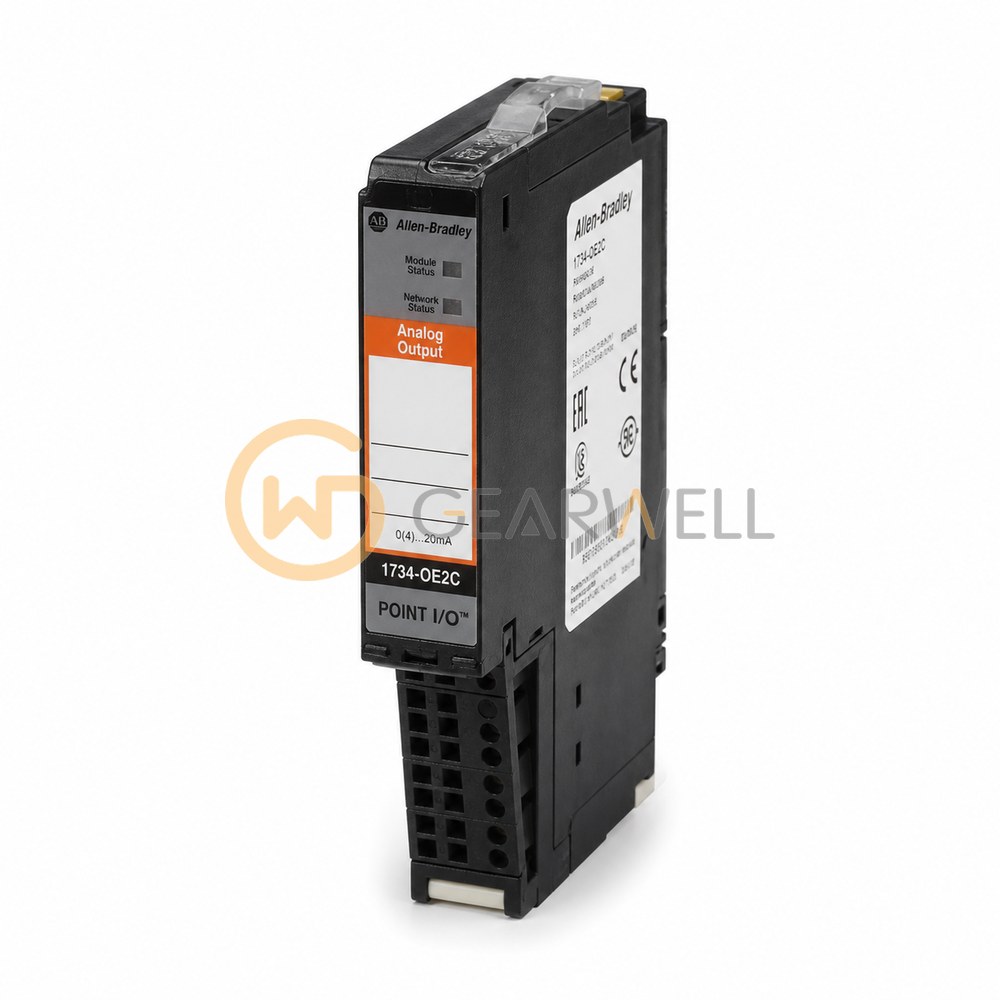

Allen-Bradley 1734-OE2C POINT I/O 2-Channel Analog Current Output Module
- Brand
- Allen-Bradley
- Model
- 1734-OE2C
- GEARWELL SKU
- GWP-000004060
- Category
- PLCs & I/O
Key specifications
- Output channels (Series C)
- 2 single-ended, nonisolated current outputs.
- Output load (Series C)
- 0…750 Ω resistive load.
- Product type
- POINT I/O 2-channel current output module
- D/A conversion time (Series C)
- 16 µs (digital-to-analog conversion).
- Manufacturer lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-OE2C is a POINT I/O analog output module with 2 single-ended, non-isolated current outputs for 4…20 mA or 0…20 mA, 13-bit resolution and loads of 0…750 Ω. It draws 75 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-OE2C POINT I/O 2-Channel Analog Current Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734-OE2C |
| Category | PLCs & I/O |
| Output channels (Series C) | 2 single-ended, nonisolated current outputs. |
| Output load (Series C) | 0…750 Ω resistive load. |
| Product type | POINT I/O 2-channel current output module |
| D/A conversion time (Series C) | 16 µs (digital-to-analog conversion). |
| Manufacturer lifecycle status | Active |
| Absolute accuracy (Series C) | 0.1% full scale at 25 °C. |
| Output resolution (Series C) | 13 bits over 0…21 mA; average 2.5 µA/count (typical 2.3…2.7 µA/count). |
| Product description | 2-channel analog current output module for POINT I/O, with single-ended, nonisolated outputs. |
| Output signal ranges (Series C) | 4…20 mA or 0…20 mA, configurable. |
