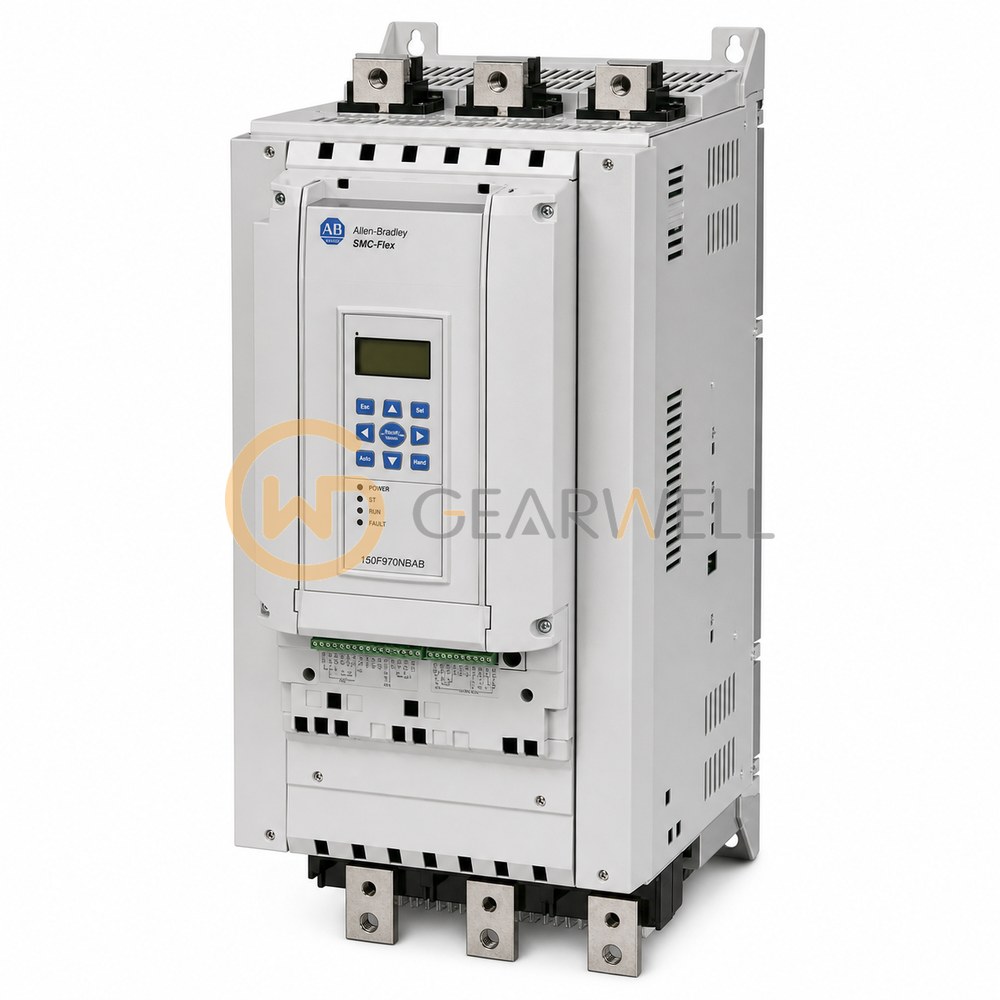

Allen-Bradley 150F970NBAB SMC Flex 970 A Soft Starter - Pump Control

Product overview

The Allen-Bradley 150-F970NBAB is an SMC Flex smart motor controller (soft starter) from Rockwell's Bulletin 150 SMC family. It is rated 970 A (800 Hp at 460V AC) for line-connected motors with a full-load current of 323…970 A, with a maximum motor rating of 560 kW at 400/415V AC and 800 Hp at 460V AC. It runs on 200…460V AC, 3-phase, 50 and 60 Hz with 230/240V AC control power. It includes the Pump Control option, which helps reduce fluid surges in centrifugal pumping systems during starting and stopping; starting time is adjustable from 0…30 s and stopping time from 0…120 s. The SMC Flex is a modular soft starter with integrated bypass, a front keypad with backlit LCD display and two DPI ports for an optional human interface module and communication modules. Starting and stopping modes include soft start, current limit start, dual ramp, full voltage, linear speed acceleration, preset slow speed and soft stop, and it has four programmable auxiliary contacts and full metering (amps, volts, kW, kWh, power factor and motor thermal capacity usage).
