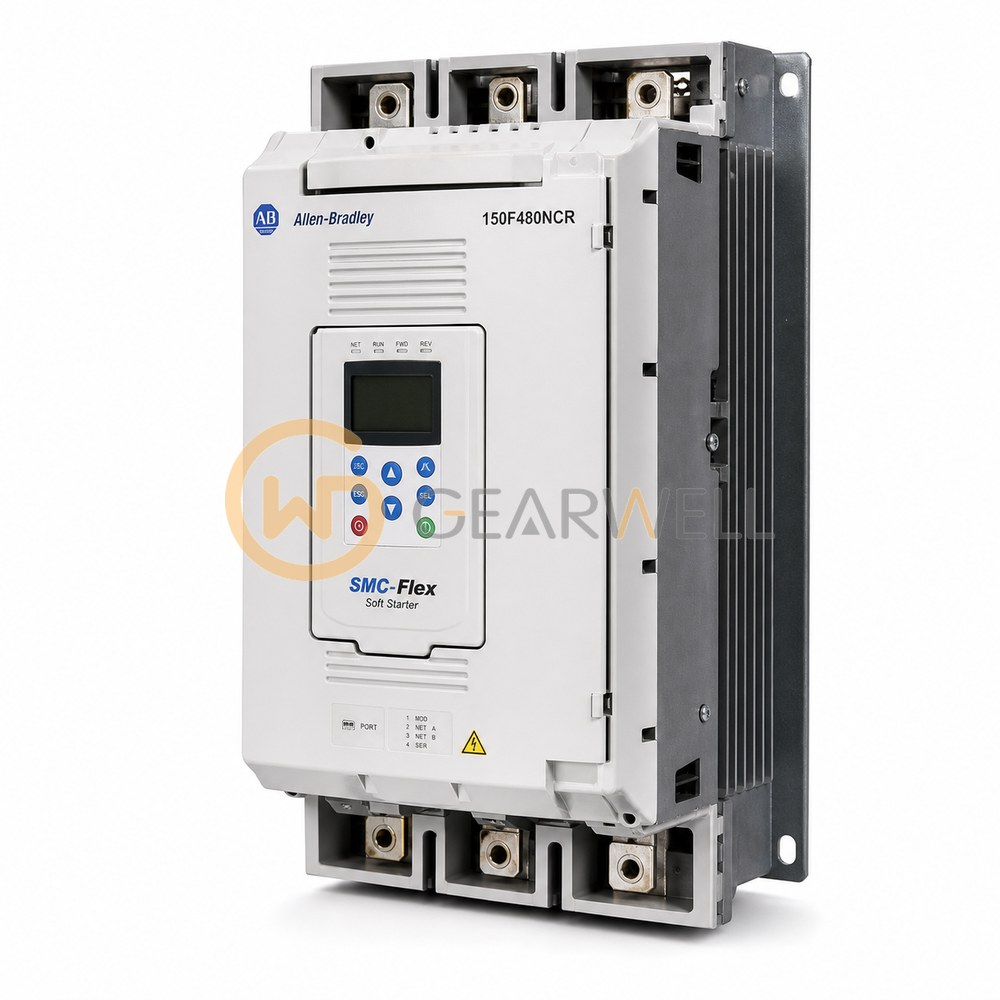

Allen-Bradley 150F480NCR SMC Flex 480 A Soft Starter

Product overview

The Allen-Bradley 150-F480NCR is an SMC Flex smart motor controller (soft starter) from Rockwell's Bulletin 150 SMC family. It is rated 480 A (400 Hp at 460V AC) for line-connected motors with a full-load current of 160…480 A, with a maximum motor rating of 315 kW at 500V AC and 500 Hp at 575V AC. It runs on 200…575V AC, 3-phase, 50 and 60 Hz with 24V AC/DC control power. The SMC Flex is a modular soft starter with integrated bypass, a front keypad with backlit LCD display and two DPI ports for an optional human interface module and communication modules. Starting and stopping modes include soft start, current limit start, dual ramp, full voltage, linear speed acceleration, preset slow speed and soft stop, and it has four programmable auxiliary contacts and full metering (amps, volts, kW, kWh, power factor and motor thermal capacity usage).
