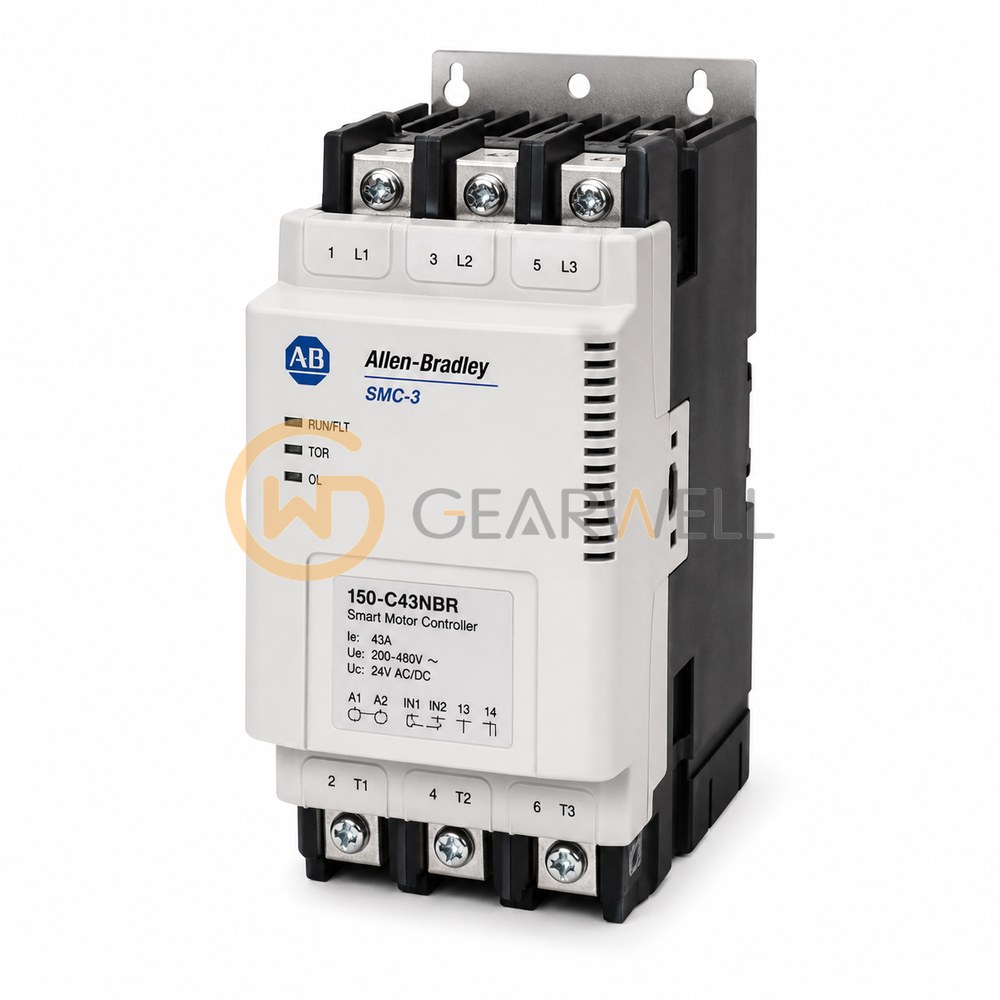

Allen-Bradley 150-C43NBR SMC-3 Soft Starter, 43 A
- Brand
- Allen-Bradley
- Model
- 150-C43NBR
- GEARWELL SKU
- GWP-000004193
- Category
- Drives and Motors
Key specifications
- Depth
- 130 mm (5.12 in)
- Width
- 72 mm (2.83 in)
- Height
- 206 mm (8.11 in)
- Weight
- 2.25 kg
- Enclosure
- Open type
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 150-C43NBR is an SMC-3 smart motor controller (soft starter) from Rockwell's Bulletin 150 SMC family. It is rated 43 A for line-connected motors with a full-load current of 14.3…43 A, with a maximum motor rating of 22 kW at 380/400/415V AC and 10…30 Hp at 460V AC. It runs on 200…460V AC, 3-phase, 50/60 Hz with 24V AC/DC control power. The SMC-3 is a compact soft starter with integrated bypass and true three-phase control; it has an electronic overload with selectable trip class 10, 15 or 20, selectable start times from 2 to 30 s, initial torque of 15…65% of locked rotor torque, current limit of 150…450% of full load current, kick start and soft stop.
Technical reference
| Product name | Allen-Bradley 150-C43NBR SMC-3 Soft Starter, 43 A |
|---|---|
| Brand | Allen-Bradley |
| Model | 150-C43NBR |
| Category | Drives and Motors |
| Depth | 130 mm (5.12 in) |
| Width | 72 mm (2.83 in) |
| Height | 206 mm (8.11 in) |
| Weight | 2.25 kg |
| Enclosure | Open type |
| Sub Brand | SMC-3 |
| Rated current | 43 A |
| Line frequency | 50/60 Hz |
| Control voltage | 24 V AC/DC |
| Controller type | SMC-3 |
| Internal bypass | Integrated |
| Maximum line voltage | 480 V AC, 3-phase |
| Degree of protection (IP) | IP2X |
